BREMBO

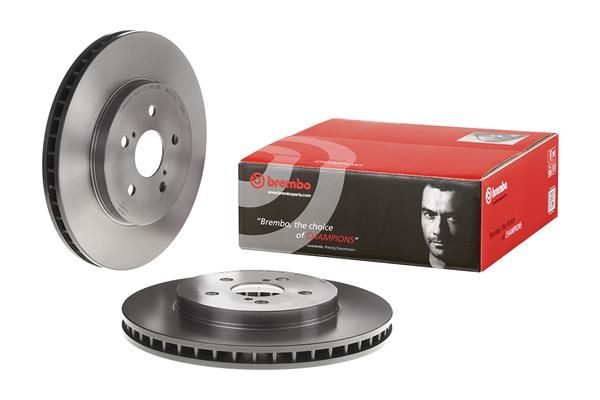

Brembo 09.A109.11 Brake Disc

SKU: 09.A109.11
Your selected vehicle
Out of stock
Out of Stock
£92.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HARRIER (_U3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACU35_, ACU35W) 2362 CCM 160 HP 10/2003 - 06/2012
3.3 Hybrid 4WD (MHU38_, MHU38W) 3311 CCM 272 HP 03/2005 - 09/2013
3.5 4WD (GSU35_, GSU36_, GSU35W, GSU36W) 3456 CCM 280 HP 04/2005 - 12/2008
2.4 (ACU30_, ACU30W) 2362 CCM 160 HP 02/2003 - 12/2013
3.0 (MCU30) 2995 CCM 223 HP 08/2003 - 01/2006
3.0 4WD (MCU36W, MCU35) 2995 CCM 223 HP 08/2003 - 01/2006
LEXUS
RX (_U3_)
Description Cylinder Capacity Horse Power Year
300 (MCU35_, MCU35R) 2995 CCM 204 HP 05/2003 - 12/2008
350 AWD (GSU35_, GSU35R) 3456 CCM 276 HP 02/2006 - 12/2008
330 AWD (MCU38) 3311 CCM 232 HP 04/2003 - 12/2008
330 (MCU38_, MCU38R) 3311 CCM 232 HP 04/2003 - 01/2006
400h (MHU38_, MHU38R) 3311 CCM 272 HP 09/2005 - 12/2008
400h AWD (MHU38_, MHU38R) 3311 CCM 272 HP 09/2005 - 12/2008
350 (GSU30_) 3456 CCM 276 HP 01/2006 - 12/2008

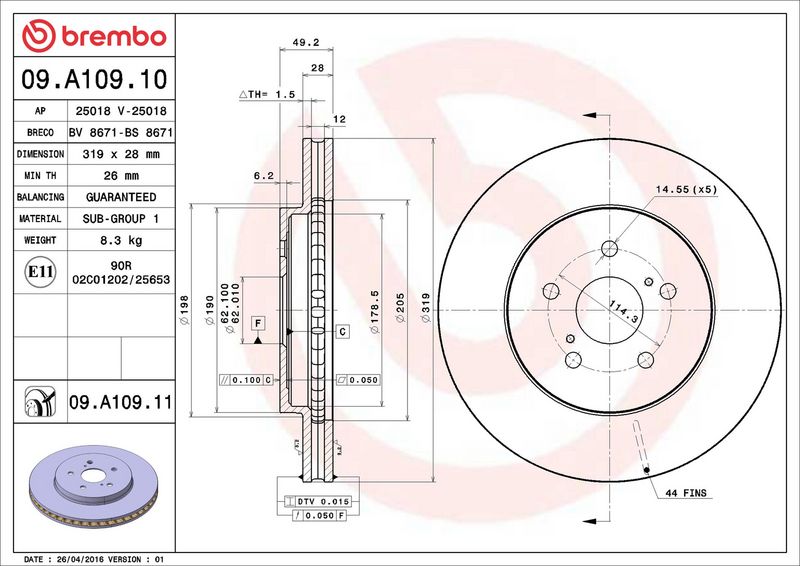

The Brembo 09.A109.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 319
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A109.11
  • Barcode 8020584032893
  • TOYOTA : 4351248081 4351248090 4351248100
  • LEXUS : 435120E010 4351248080 4351248081 4351248100
  • BLUE PRINT : ADT343192
  • BORG & BECK : BBD4683
  • BOSCH : 0 986 479 722
  • DELPHI : BG4253
  • FEBI BILSTEIN : 108487
  • FTE : 9071208
  • HELLA : 8DD 355 114-981
  • MEYLE : 30-15 521 0122/PD
  • MINTEX : MDC1856
  • SKF : VKBD 80477 V2
  • TEXTAR : 92171503
  • TRW : DF4493
  • VALEO : 673628
