BREMBO

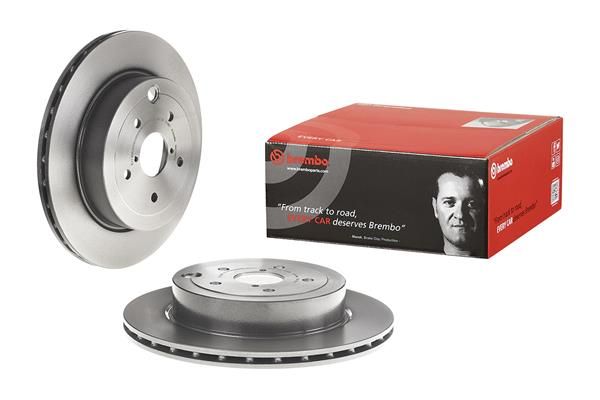

Brembo 09.A198.11 Brake Disc

SKU: 09.A198.11

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£184.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU

IMPREZA Saloon (GE, GV)

Description	Cylinder Capacity	Horse Power	Year
2.5 WRX SE AWD (GVE, GEE)	2457 CCM	265 HP	01/2009 - 12/2014
2.5 WRX STi AWD (GVF)	2457 CCM	301 HP	From 01/2011
2.5 AWD (GVB)	2457 CCM	310 HP	09/2010 - 12/2015

IMPREZA Hatchback (GR, GH, G3)

Description	Cylinder Capacity	Horse Power	Year
2.5 WRX STi AWD (GRF)	2457 CCM	301 HP	01/2008 - 08/2013
2.5 STI CS400 AWD (GRF)	2457 CCM	400 HP	04/2010 - 08/2013
2.5 AWD	2457 CCM	310 HP	09/2010 - 08/2013
2.5 WRX S AWD	2457 CCM	255 HP	02/2009 - 12/2010

WRX Hatchback (GP)

Description	Cylinder Capacity	Horse Power	Year
STi 2.5 AWD	2457 CCM	300 HP	10/2010 - 12/2014

WRX Saloon (GJ)

Description	Cylinder Capacity	Horse Power	Year
STi 2.5 AWD	2457 CCM	301 HP	From 06/2014

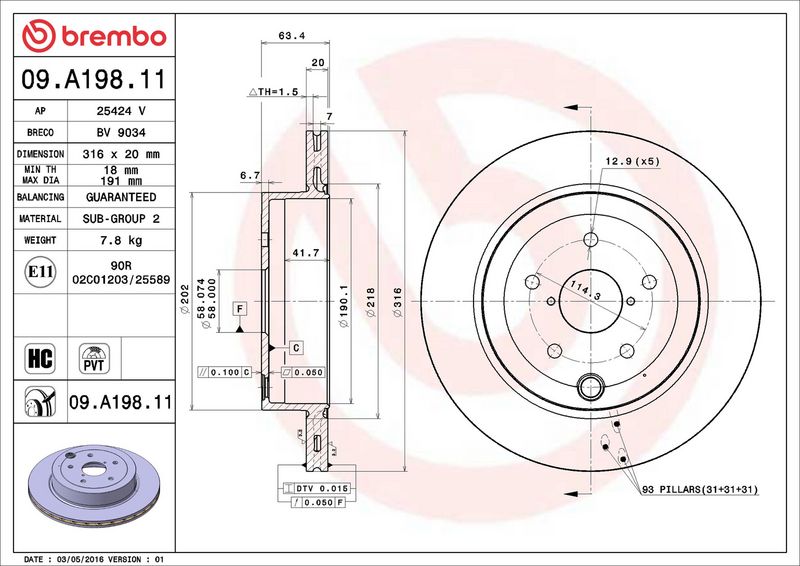

The Brembo 09.A198.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 20

Number of Holes : 5

Height [mm] : 63

Centering Diameter [mm] : 58

Outer Diameter [mm] : 316

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 18

Tightening Torque [Nm] : 100

Brembo 09.A198.11 Brake Disc
