BREMBO

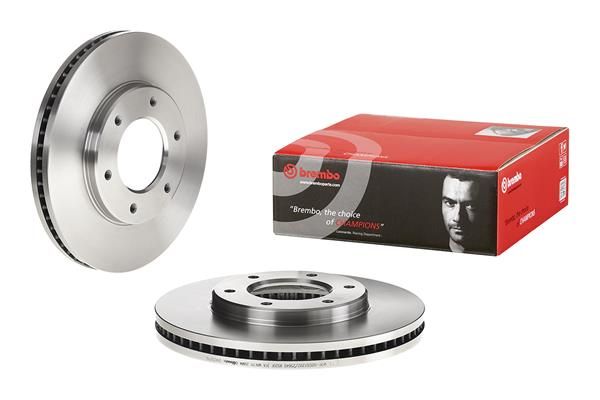

Brembo 09.A203.10 Brake Disc

SKU: 09.A203.10
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£109.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
GRANVIA (_H2_, _H1_)
Description Cylinder Capacity Horse Power Year
3.0 TDi (KCH10) 2982 CCM 131 HP 08/1995 - 12/2004
2.7 (RCH11W_, RCH11W) 2694 CCM 145 HP 08/1995 - 09/1998
3.0 TD (KCH10) 2982 CCM 140 HP 08/1995 - 12/2002
HIACE IV Van (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 (RZH103, RZH113) 2438 CCM 116 HP 08/1989 - 07/1998
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 (RCH12, RCH22) 2438 CCM 115 HP 08/1995 - 04/1998
2.7 (RCH13, RCH23) 2694 CCM 143 HP 04/1998 - 11/2001
2.4 D (LXH12) 2446 CCM 75 HP 08/1995 - 08/2001
2.5 D-4D (KLH12) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.7 (RCH13, RCH23) 2694 CCM 144 HP 07/1998 - 12/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 08/2006 - 12/2012
2.5 D-4D 4WD (KLH18) 2494 CCM 117 HP 09/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 (RCH12, RCH22) 2438 CCM 116 HP 08/1995 - 11/2003
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.7 (RCH13, RCH23) 2694 CCM 143 HP 04/1998 - 06/2005
2.7 4WD (RCH19, RCH29) 2694 CCM 144 HP 07/1998 - 06/2005
2.5 D-4D (KLH12, KLH22) 2494 CCM 88 HP 08/2001 - 08/2006
2.5 D-4D (KLH12, KLH22) 2494 CCM 102 HP 08/2001 - 08/2006
2.4 D (LXH12, LXH22) 2446 CCM 75 HP 08/1995 - 08/2001
2.5 D-4D 4WD (KLH18, KLH28) 2494 CCM 88 HP 08/2001 - 08/2004
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH223) 2982 CCM 136 HP From 05/2010
REGIUS IV MPV (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 i (RZH125) 2438 CCM 116 HP 08/1995 - 12/2004

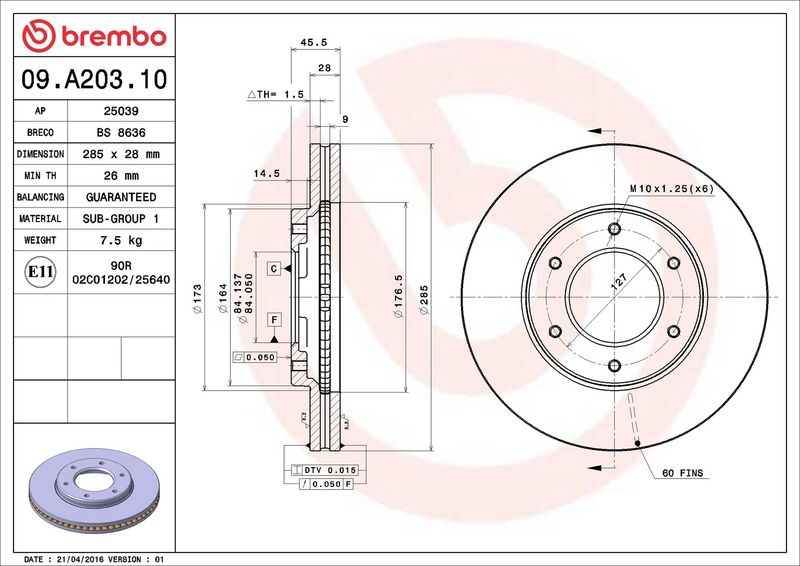

The Brembo 09.A203.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 84 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 46
Centering Diameter [mm] : 84
Outer Diameter [mm] : 285
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.A203.10
  • Barcode 8020584016800
  • TOYOTA : 4351226140 4351226160
  • APEC : DSK2049
  • APEC : SDK7231
  • BLUE PRINT : ADT343101
  • BORG & BECK : BBD4176
  • BOSCH : 0 986 478 693
  • DELPHI : BG3193
  • Fahren : FBD7231
  • FEBI BILSTEIN : 29981
  • FTE : 9071355
  • FTE : 9081289
  • HELLA : 8DD 355 108-531
  • MEYLE : 30-15 521 0086
  • MINTEX : MDC1785
  • NAPA : NBD5748
  • National : NBD849
  • SKF : VKBD 80591 V2
  • TEXTAR : 92113000
  • TRW : DF4116
  • VALEO : 673497
