Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

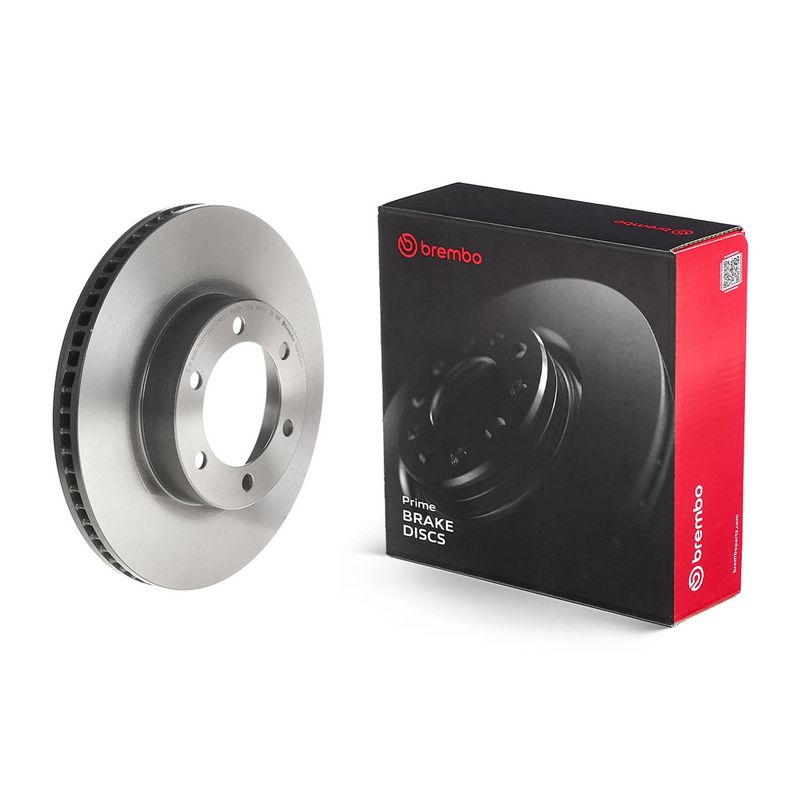

Brembo 09.A204.11 Brake Disc - 1

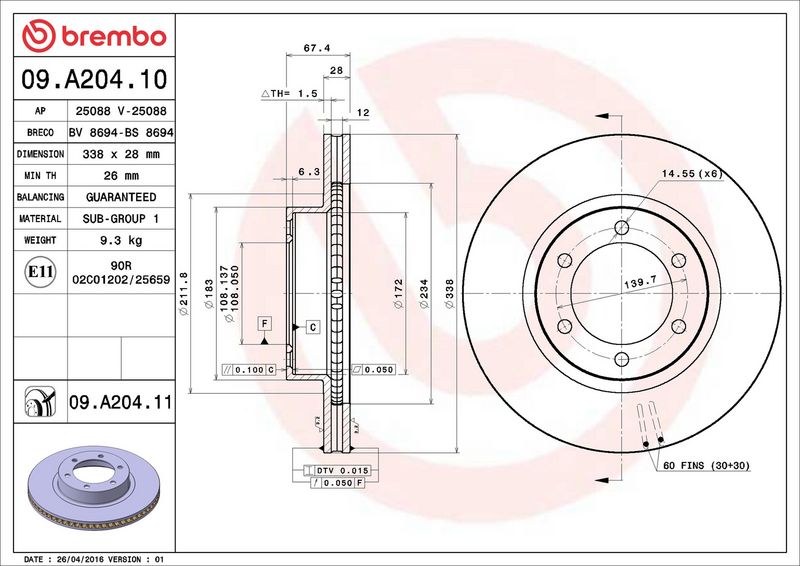

Brembo 09.A204.11 Brake Disc - 2
Brembo 09.A204.11 Brake Disc - 1
Brembo 09.A204.11 Brake Disc - 2
BREMBO

Brembo 09.A204.11 Brake Disc

SKU: 09.A204.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£49.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
4 RUNNER IV (_N21_)
Description Cylinder Capacity Horse Power Year
4.7 4WD (UZN215) 4663 CCM 264 HP 01/2005 - 12/2009
4.7 (UZN210) 4663 CCM 264 HP 01/2005 - 12/2009
LAND CRUISER PRADO (_J12_)
Description Cylinder Capacity Horse Power Year
3.0 D (LJ120, LJ125) 2986 CCM 95 HP 09/2002 - 02/2010
4.0 (GRJ120, GRJ125, GRJ121) 3956 CCM 249 HP 12/2002 - 12/2010
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 163 HP 09/2002 - 08/2009
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 166 HP 07/2004 - 08/2009
3.0 D-4D (KDJ120, KDJ125, KDJ121) 2982 CCM 173 HP 09/2002 - 12/2010
4.0 (GRJ120, GRJ125) 3956 CCM 243 HP 09/2002 - 08/2010
2.7 (TRJ120, TRJ125) 2694 CCM 163 HP 11/2003 - 02/2010
3.0 D (KZJ120) 2982 CCM 125 HP 09/2002 - 07/2009
3.0 D-4D (KDJ120_) 2982 CCM 204 HP 08/2006 - 07/2009
4.0 V6 VVT-i (GRJ125) 3956 CCM 282 HP 01/2003 - 07/2009

The Brembo 09.A204.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 108 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 67
Centering Diameter [mm] : 108
Outer Diameter [mm] : 338
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 112
  • Vendor BREMBO
  • SKU 09.A204.11
  • Barcode 8020584032602
  • TOYOTA : 4351260150 4351260151 4351260160
  • LEXUS : 4351260151 4351260160
  • TOYOTA (FAW) : 4351260150 4351260151
  • BLUE PRINT : ADT343161
  • BORG & BECK : BBD4502
  • BOSCH : 0 986 479 304
  • DELPHI : BG4052
  • FEBI BILSTEIN : 170780
  • FTE : 9071060
  • FTE : 9081169
  • HELLA : 8DD 355 111-861
  • MEYLE : 30-15 521 0129
  • MEYLE : 30-15 521 0129/PD
  • MINTEX : MDC1776
  • SKF : VKBD 80259 V1
  • TEXTAR : 92137300
  • TEXTAR : 92137303
  • TRW : DF4494
  • VALEO : 197071
  • VALEO : 673263
