BREMBO

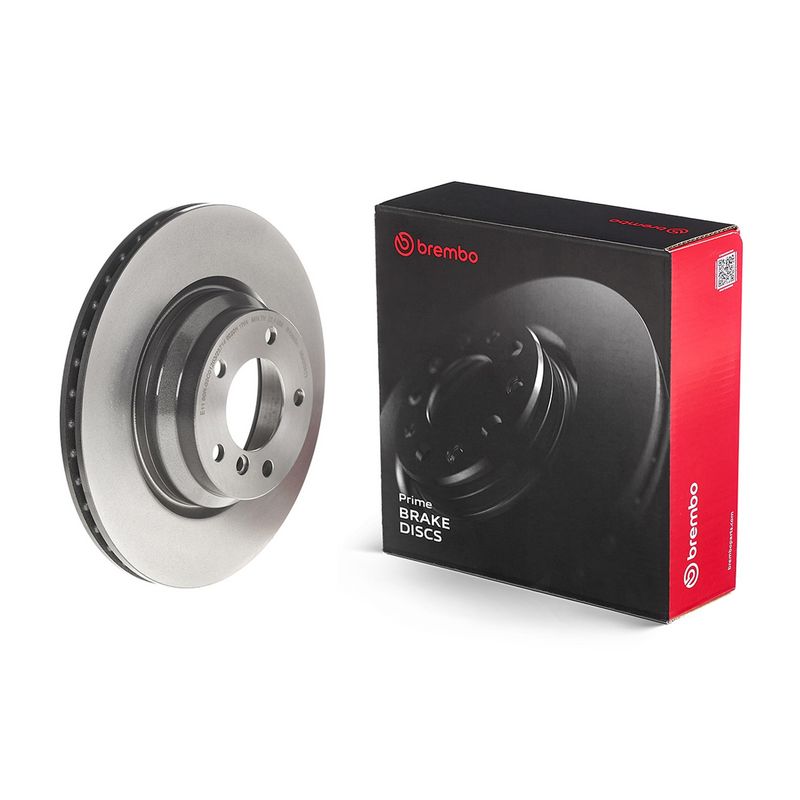

Brembo 09.A259.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.A259.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£64.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

1 (E87)

Description	Cylinder Capacity	Horse Power	Year
130 i	2996 CCM	258 HP	03/2007 - 06/2011
130 i	2996 CCM	265 HP	09/2005 - 02/2007

1 (E81)

Description	Cylinder Capacity	Horse Power	Year
130 i	2996 CCM	265 HP	09/2006 - 12/2011
123 d	1995 CCM	204 HP	03/2007 - 12/2011
130 i	2996 CCM	258 HP	09/2006 - 12/2011

1 Coupe (E82)

Description	Cylinder Capacity	Horse Power	Year
123 d	1995 CCM	204 HP	10/2007 - 09/2013

1 Convertible (E88)

Description	Cylinder Capacity	Horse Power	Year
123 d	1995 CCM	204 HP	09/2008 - 12/2013

3 (E90)

Description	Cylinder Capacity	Horse Power	Year
320 d xDrive	1995 CCM	163 HP	09/2008 - 10/2011
325 i	2497 CCM	218 HP	12/2004 - 12/2011
330 i	2996 CCM	258 HP	12/2004 - 10/2011
320 d	1995 CCM	163 HP	12/2004 - 10/2011
330 d	2993 CCM	231 HP	09/2005 - 09/2008
325 xi	2497 CCM	218 HP	09/2005 - 08/2008
330 xi	2996 CCM	258 HP	09/2005 - 08/2007
330 xd	2993 CCM	231 HP	09/2005 - 08/2008

3 Touring (E91)

Description	Cylinder Capacity	Horse Power	Year
325 i	2996 CCM	211 HP	09/2007 - 06/2012
325 i	2497 CCM	218 HP	12/2004 - 08/2008
330 i	2996 CCM	258 HP	08/2005 - 08/2007
320 d	1995 CCM	163 HP	06/2005 - 06/2012
330 d	2993 CCM	231 HP	12/2004 - 08/2008
325 xi	2497 CCM	218 HP	08/2005 - 08/2008
330 xi	2996 CCM	258 HP	09/2005 - 08/2007
330 xd	2993 CCM	231 HP	09/2005 - 06/2012

3 Coupe (E92)

Description	Cylinder Capacity	Horse Power	Year
325 i	2497 CCM	218 HP	06/2006 - 02/2010
330 i	2996 CCM	272 HP	09/2006 - 02/2010
325 xi	2497 CCM	218 HP	09/2006 - 02/2010
330 xi	2996 CCM	272 HP	09/2006 - 08/2007
330 i	2996 CCM	258 HP	03/2010 - 06/2013
325 d	2993 CCM	197 HP	02/2007 - 02/2010
325 i	2996 CCM	218 HP	09/2007 - 06/2013

3 Convertible (E93)

Description	Cylinder Capacity	Horse Power	Year
325 d	2993 CCM	204 HP	09/2009 - 09/2013
325 i	2996 CCM	218 HP	03/2007 - 12/2013
330 i	2996 CCM	272 HP	03/2007 - 10/2013
325 i	2497 CCM	218 HP	12/2006 - 02/2010
325 d	2993 CCM	197 HP	03/2007 - 12/2010
330 i	2996 CCM	258 HP	03/2010 - 10/2013
330 d	2993 CCM	245 HP	01/2009 - 09/2013
325 i	2996 CCM	211 HP	10/2006 - 12/2013

X1 (E84)

Description	Cylinder Capacity	Horse Power	Year
xDrive 28 i	1997 CCM	245 HP	03/2011 - 06/2015
xDrive 23 d	1995 CCM	204 HP	10/2009 - 06/2015

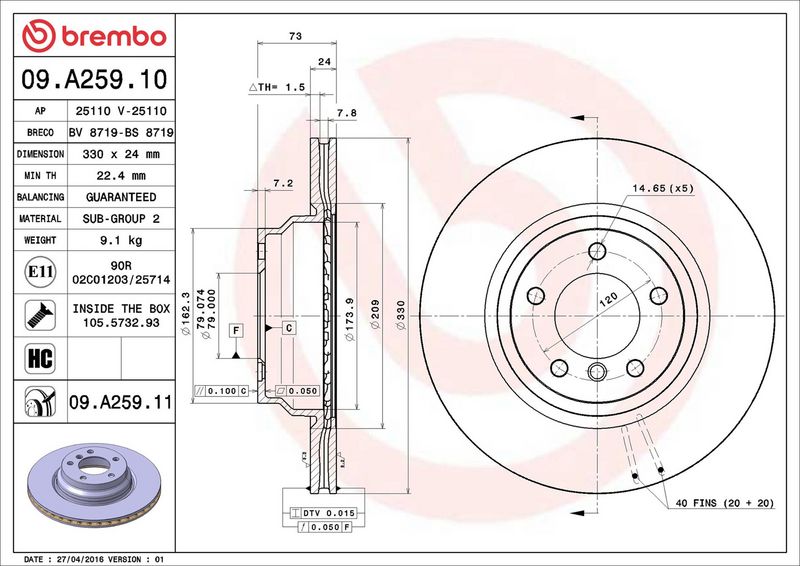

The Brembo 09.A259.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 24

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 73

Centering Diameter [mm] : 79

Outer Diameter [mm] : 330

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 22.4

Tightening Torque [Nm] : 120
