Brembo 09.A259.1X Brake Disc

SKU: 09.A259.1X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£81.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 258 HP 03/2007 - 06/2011
130 i 2996 CCM 265 HP 09/2005 - 02/2007
1 (E81)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 265 HP 09/2006 - 12/2011
123 d 1995 CCM 204 HP 03/2007 - 12/2011
130 i 2996 CCM 258 HP 09/2006 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
123 d 1995 CCM 204 HP 10/2007 - 09/2013
1 Convertible (E88)
Description Cylinder Capacity Horse Power Year
123 d 1995 CCM 204 HP 09/2008 - 12/2013
3 (E90)
Description Cylinder Capacity Horse Power Year
320 d xDrive 1995 CCM 163 HP 09/2008 - 10/2011
325 i 2497 CCM 218 HP 12/2004 - 12/2011
330 i 2996 CCM 258 HP 12/2004 - 10/2011
320 d 1995 CCM 163 HP 12/2004 - 10/2011
330 d 2993 CCM 231 HP 09/2005 - 09/2008
325 xi 2497 CCM 218 HP 09/2005 - 08/2008
330 xi 2996 CCM 258 HP 09/2005 - 08/2007
330 xd 2993 CCM 231 HP 09/2005 - 08/2008
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
325 i 2996 CCM 211 HP 09/2007 - 06/2012
325 i 2497 CCM 218 HP 12/2004 - 08/2008
330 i 2996 CCM 258 HP 08/2005 - 08/2007
320 d 1995 CCM 163 HP 06/2005 - 06/2012
330 d 2993 CCM 231 HP 12/2004 - 08/2008
325 xi 2497 CCM 218 HP 08/2005 - 08/2008
330 xi 2996 CCM 258 HP 09/2005 - 08/2007
330 xd 2993 CCM 231 HP 09/2005 - 06/2012
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
325 i 2497 CCM 218 HP 06/2006 - 02/2010
330 i 2996 CCM 272 HP 09/2006 - 02/2010
325 xi 2497 CCM 218 HP 09/2006 - 02/2010
330 xi 2996 CCM 272 HP 09/2006 - 08/2007
330 i 2996 CCM 258 HP 03/2010 - 06/2013
325 d 2993 CCM 197 HP 02/2007 - 02/2010
325 i 2996 CCM 218 HP 09/2007 - 06/2013
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
325 d 2993 CCM 204 HP 09/2009 - 09/2013
325 i 2996 CCM 218 HP 03/2007 - 12/2013
330 i 2996 CCM 272 HP 03/2007 - 10/2013
325 i 2497 CCM 218 HP 12/2006 - 02/2010
325 d 2993 CCM 197 HP 03/2007 - 12/2010
330 i 2996 CCM 258 HP 03/2010 - 10/2013
330 d 2993 CCM 245 HP 01/2009 - 09/2013
325 i 2996 CCM 211 HP 10/2006 - 12/2013
X1 (E84)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 1997 CCM 245 HP 03/2011 - 06/2015
xDrive 23 d 1995 CCM 204 HP 10/2009 - 06/2015

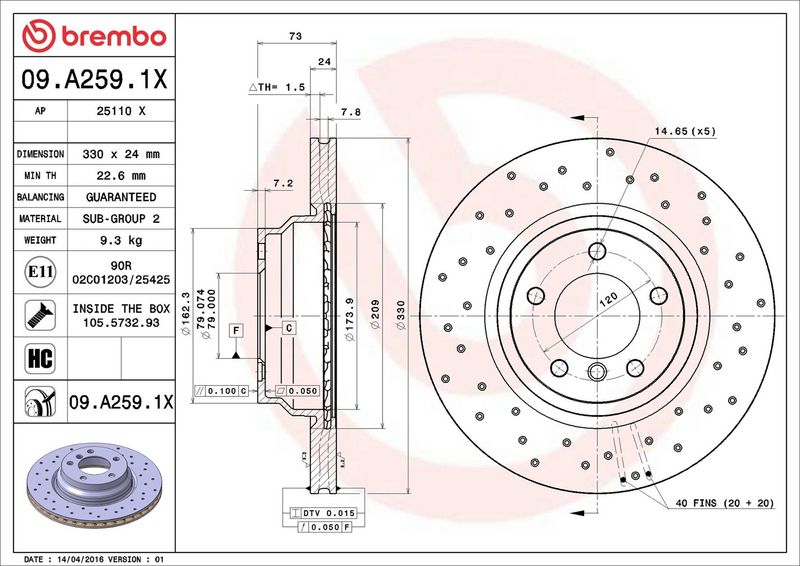

The Brembo 09.A259.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 73
Centering Diameter [mm] : 79
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.6
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.A259.1X
  • Barcode 8020584217597
  • BMW : 34116764645 34116854999
  • BMW (BRILLIANCE) : 34116764645 34116854999
  • BLUE PRINT : ADB114306
  • BOSCH : 0 986 479 215
  • FEBI BILSTEIN : 24469
  • FTE : 9071240
  • HELLA : 8DD 355 111-941
  • MEYLE : 315 521 3064
  • MEYLE : 383 521 3064/PD
  • MINTEX : MDC1732
  • MINTEX : MDC1732C
  • SKF : VKBD 80124 V1
  • TEXTAR : 92137800
  • TEXTAR : 92137803
  • TEXTAR : 92137805
  • TRW : DF4460S
  • VALEO : 197073
  • VALEO : 672744
