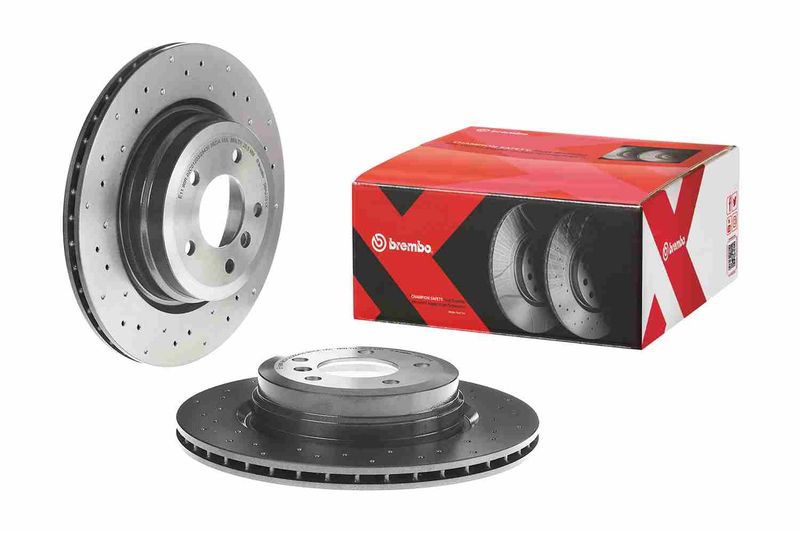

Brembo 09.A270.1X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.A270.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£177.54 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
3 (E90)
Description Cylinder Capacity Horse Power Year
320 d xDrive 1995 CCM 163 HP 09/2008 - 10/2011
325 i 2497 CCM 218 HP 12/2004 - 12/2011
330 i 2996 CCM 258 HP 12/2004 - 10/2011
320 d 1995 CCM 163 HP 12/2004 - 10/2011
330 d 2993 CCM 231 HP 09/2005 - 09/2008
325 xi 2497 CCM 218 HP 09/2005 - 08/2008
330 xi 2996 CCM 258 HP 09/2005 - 08/2007
330 xd 2993 CCM 231 HP 09/2005 - 08/2008
335 i 2979 CCM 306 HP 09/2006 - 12/2011
335 d 2993 CCM 286 HP 09/2006 - 12/2011
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
325 i 2996 CCM 211 HP 09/2007 - 06/2012
325 i 2497 CCM 218 HP 12/2004 - 08/2008
330 i 2996 CCM 258 HP 08/2005 - 08/2007
320 d 1995 CCM 163 HP 06/2005 - 06/2012
330 d 2993 CCM 231 HP 12/2004 - 08/2008
325 xi 2497 CCM 218 HP 08/2005 - 08/2008
330 xi 2996 CCM 258 HP 09/2005 - 08/2007
330 xd 2993 CCM 231 HP 09/2005 - 06/2012
335 i 2979 CCM 306 HP 09/2006 - 06/2012
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
335 i 2979 CCM 306 HP 06/2006 - 06/2013
335 d 2993 CCM 286 HP 03/2006 - 03/2013
330 i 2996 CCM 272 HP 09/2006 - 02/2010
330 d 2993 CCM 231 HP 03/2006 - 08/2008
330 xi 2996 CCM 272 HP 09/2006 - 08/2007
330 xd 2993 CCM 231 HP 03/2006 - 08/2008
330 i 2996 CCM 258 HP 03/2010 - 06/2013
325 d 2993 CCM 197 HP 02/2007 - 02/2010
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
325 d 2993 CCM 204 HP 09/2009 - 09/2013
330 i 2996 CCM 272 HP 03/2007 - 10/2013
335 i 2979 CCM 306 HP 12/2006 - 10/2013
330 d 2993 CCM 231 HP 03/2007 - 12/2013
325 d 2993 CCM 197 HP 03/2007 - 12/2010
330 i 2996 CCM 258 HP 03/2010 - 10/2013
330 d 2993 CCM 245 HP 01/2009 - 09/2013
X1 (E84)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 2996 CCM 258 HP 09/2009 - 08/2011

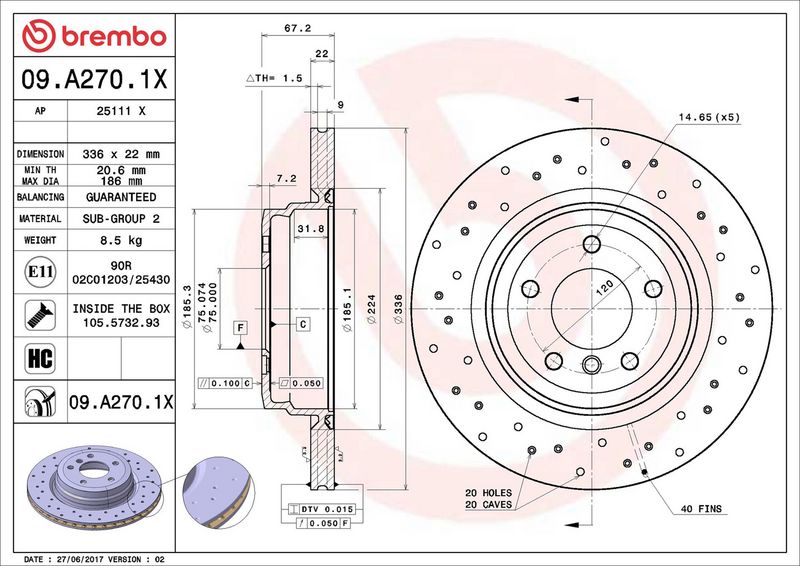

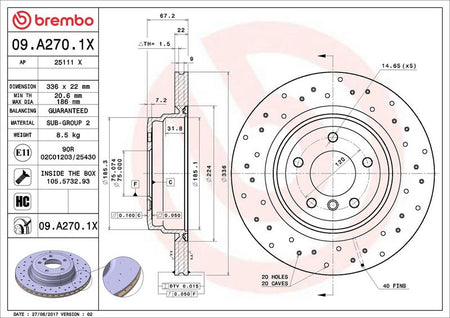

The Brembo 09.A270.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 67
Centering Diameter [mm] : 75
Outer Diameter [mm] : 336
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20.6
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.A270.1X
  • Barcode 8020584217672
  • BMW : 34216764655 34216855004
  • BMW (BRILLIANCE) : 34216764655 34216855004
  • BLUE PRINT : ADB114307
  • BOSCH : 0 986 479 439
  • FEBI BILSTEIN : 24476
  • FTE : 9071255
  • HELLA : 8DD 355 111-961
  • HELLA : 8DD 355 128-441
  • MEYLE : 315 523 0051
  • MEYLE : 315 523 0051/PD
  • MINTEX : MDC1757C
  • TEXTAR : 92137900
  • TEXTAR : 92137905
  • TRW : DF4461S
  • VALEO : 197175
