Brembo 09.A296.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.A296.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£82.12 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FIAT
SEDICI (189_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1586 CCM 120 HP 06/2006 - 10/2014
1.6 16V 4x4 1586 CCM 120 HP 06/2006 - 10/2014
2.0 D Multijet 1956 CCM 135 HP 06/2006 - 10/2014
2.0 D Multijet 4x4 1956 CCM 135 HP 06/2006 - 10/2014
1.9 D Multijet 4x4 1910 CCM 120 HP 06/2006 - 10/2011
1.6 16V 4x4 1586 CCM 107 HP 06/2006 - 10/2014
1.9 D Multijet 1910 CCM 120 HP 06/2006 - 10/2011
1.6 16V 1586 CCM 107 HP 06/2006 - 10/2014
SUZUKI
SX4 (EY, GY)
Description Cylinder Capacity Horse Power Year
1.5 VVT (RW415, YA11S) 1490 CCM 112 HP From 07/2010
1.6 VVT 4x4 (RW416) 1586 CCM 112 HP From 07/2009
1.6 VVT 4x4 (RW416) 1586 CCM 107 HP From 06/2006
1.9 DDiS 4x4 (RW419D) 1910 CCM 120 HP From 06/2006
1.5 (RW 415) 1490 CCM 99 HP 06/2006 - 07/2010
1.6 VVT (RW416, YA21S) 1586 CCM 107 HP From 06/2006
1.9 DDiS (RW419D) 1910 CCM 120 HP From 06/2006
1.6 DDIS (RW416D) 1560 CCM 90 HP From 04/2007
1.6 VVT (RW416, YA21S) 1586 CCM 120 HP From 07/2009
1.6 VVT 4x4 (RW416) 1586 CCM 120 HP From 07/2009
2.0 DDiS (RW420D) 1956 CCM 135 HP From 07/2009
2.0 DDiS 4x4 (RW420D) 1956 CCM 135 HP From 07/2009
1.5 VVTi (YA11S) 1490 CCM 110 HP 07/2007 - 12/2015
SX4 Saloon (GY, RW)
Description Cylinder Capacity Horse Power Year
1.6 (RW416) 1586 CCM 120 HP From 10/2007
1.6 (RW416) 1586 CCM 107 HP From 10/2007

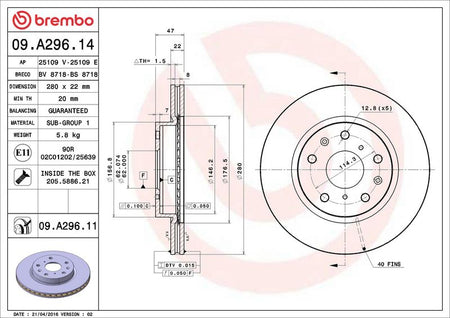

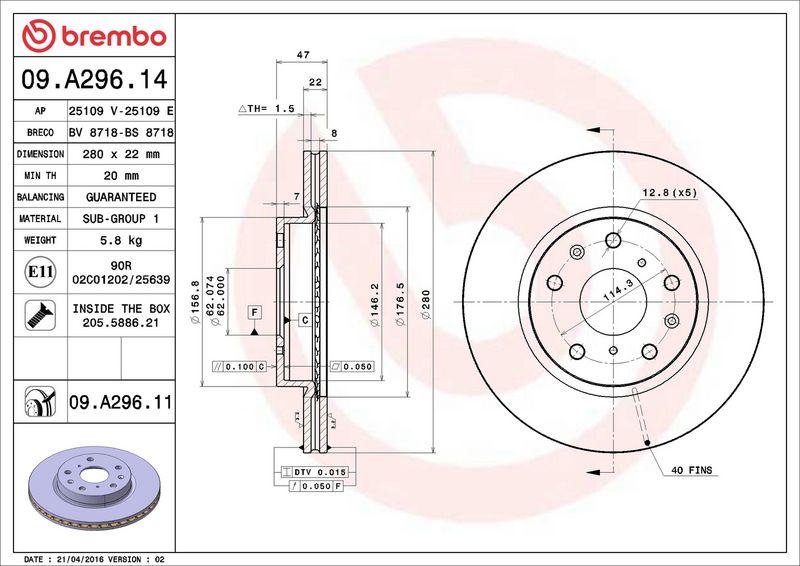

The Brembo 09.A296.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 47
Centering Diameter [mm] : 62
Outer Diameter [mm] : 280
Surface : Coated
Minimum thickness [mm] : 20
Tightening Torque [Nm] : 86
  • Vendor BREMBO
  • SKU 09.A296.11
  • Barcode 8020584211588
  • FIAT : 71742850 71750162 71768306
  • NISSAN : 432063SC0B
  • SUZUKI : 5531156K00000 5531179J01 5531179J02 5531179J03 5531180J01 5531180J02 5531180J03
  • SUZUKI (CHANGAN) : 5531156K00000
  • BLUE PRINT : ADK84326
  • BORG & BECK : BBD4614
  • BORG & BECK : BBD5207
  • BOSCH : 0 986 479 403
  • DELPHI : BG4093C
  • FEBI BILSTEIN : 29310
  • FTE : 9072559
  • HELLA : 8DD 355 113-631
  • MEYLE : 33-15 521 0016
  • MEYLE : 33-15 521 0016/PD
  • MINTEX : MDC1822
  • MINTEX : MDC2179
  • National : NBD1758
  • SKF : VKBD 80100 V2
  • TEXTAR : 92156600
  • TEXTAR : 92222100
  • TRW : DF4741
  • VALEO : 197135
