Brembo 09.A417.11 Brake Disc - 1
Brembo 09.A417.11 Brake Disc - 2
Brembo 09.A417.11 Brake Disc - 1
Brembo 09.A417.11 Brake Disc - 2
BREMBO

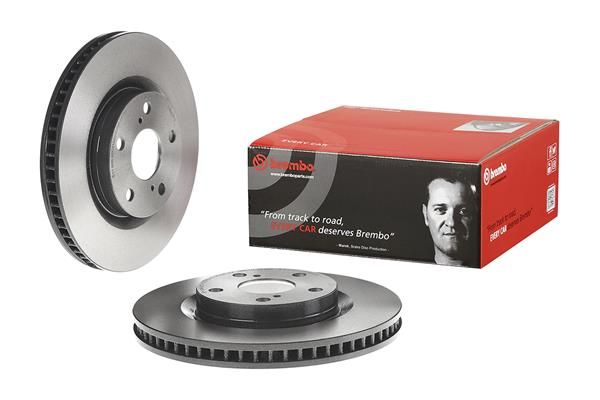

Brembo 09.A417.11 Brake Disc

SKU: 09.A417.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£84.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE150_, ZWE150R) 1798 CCM 136 HP 09/2010 - 09/2012
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE186_, ZWE186R) 1798 CCM 136 HP 10/2012 - 12/2018
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE186_, ZWE186R, ZWE186H) 1798 CCM 136 HP 07/2013 - 12/2018
CAMRY Saloon (_V4_)
Description Cylinder Capacity Horse Power Year
2.4 (ACV40) 2362 CCM 158 HP 01/2006 - 09/2011
2.4 (ACV40_, ACV40R) 2362 CCM 167 HP 01/2006 - 09/2011
2.4 (ACV40_) 2362 CCM 173 HP 01/2006 - 09/2011
CAMRY Saloon (_V5_)
Description Cylinder Capacity Horse Power Year
2.5 (ASV50_, ASV50R) 2494 CCM 181 HP 09/2011 - 03/2018
2.0 (ACV51_, ACV51) 1998 CCM 148 HP 09/2011 - 11/2014
2.0 (ASV51_) 1998 CCM 150 HP 01/2015 - 03/2018
MIRAI (JPD1_)
Description Cylinder Capacity Horse Power Year
FCV (JPD10_) 154 HP 12/2014 - 05/2020
PRIUS PLUS (_W4_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW40W, ZVW41W) 1798 CCM 136 HP From 05/2011
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ZSA44) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 (ASA42) 2494 CCM 180 HP 12/2012 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 (ZSA42) 1987 CCM 143 HP 12/2012 - 09/2019
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018
LEXUS
ES (_V6_)
Description Cylinder Capacity Horse Power Year
350 (GSV60_) 3456 CCM 249 HP 06/2012 - 06/2018

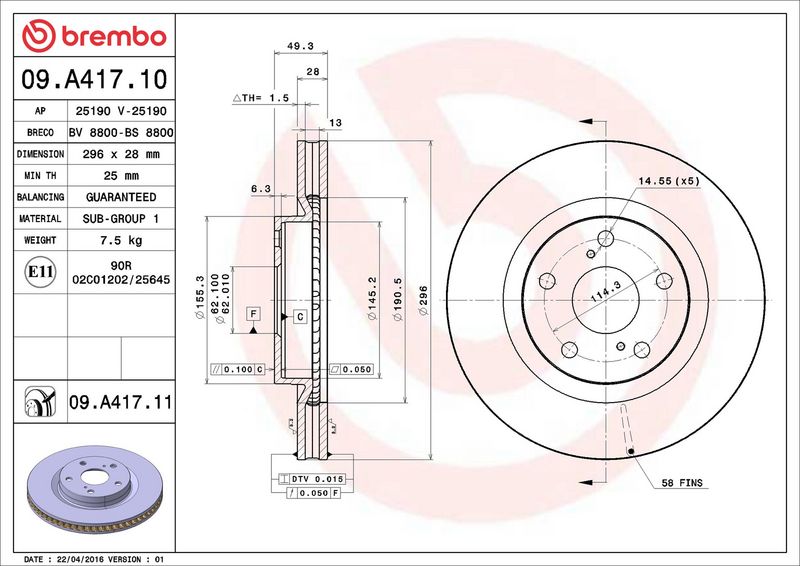

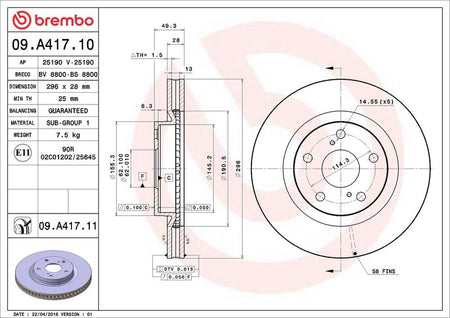

The Brembo 09.A417.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 296
Surface : Coated
Minimum thickness [mm] : 25
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A417.11
  • Barcode 8020584032541
  • BLUE PRINT : ADT343206
  • BLUE PRINT : ADT343235
  • BORG & BECK : BBD4606
  • BOSCH : 0 986 478 968
  • BOSCH : 0 986 479 768
  • BOSCH : 0 986 479 R33
  • BOSCH : 0 986 479 S22
  • DELPHI : BG4114
  • DELPHI : BG4114C
  • DELPHI : BG4192
  • FEBI BILSTEIN : 108384
  • FTE : 9071073
  • FTE : 9082779
  • HELLA : 8DD 355 118-561
  • MEYLE : 30-15 521 0120/PD
  • MINTEX : MDC1850
  • SKF : VKBD 80129 V1
  • TEXTAR : 92168803
  • TRW : DF4828S
  • VALEO : 197152
  • VALEO : 672538
