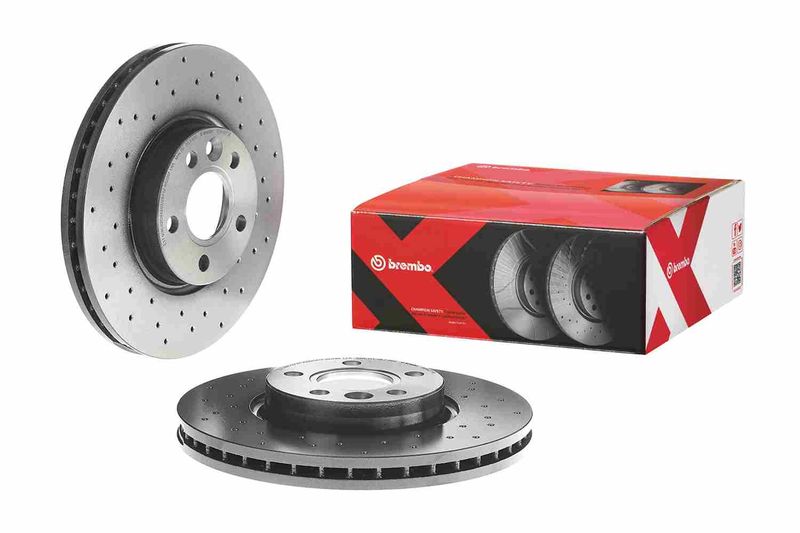

Brembo 09.A427.1X Brake Disc - 1

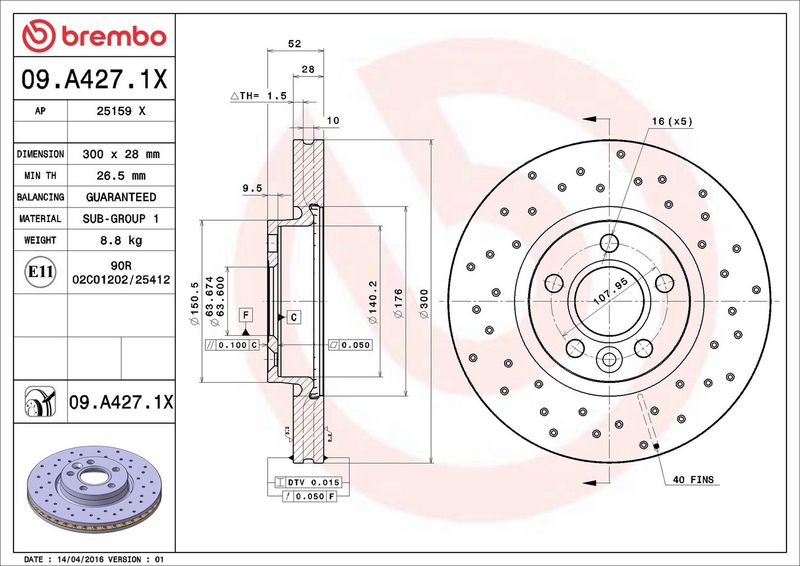

Brembo 09.A427.1X Brake Disc - 2
Brembo 09.A427.1X Brake Disc - 1
Brembo 09.A427.1X Brake Disc - 2
BREMBO

Brembo 09.A427.1X Brake Disc

SKU: 09.A427.1X
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£147.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
GALAXY II (WA6)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 05/2006 - 06/2015
1.6 TDCi 1560 CCM 115 HP 02/2011 - 06/2015
1.6 EcoBoost 1596 CCM 160 HP 11/2010 - 06/2015
2.2 TDCi 2179 CCM 200 HP 11/2010 - 06/2015
2.0 1999 CCM 145 HP 05/2006 - 06/2015
1.8 TDCi 1753 CCM 100 HP 05/2006 - 06/2015
2.0 TDCi 1997 CCM 130 HP 05/2006 - 06/2015
2.0 TDCi 1997 CCM 140 HP 05/2006 - 06/2015
1.8 TDCi 1753 CCM 125 HP 05/2006 - 06/2015
2.3 2261 CCM 160 HP 09/2007 - 06/2015
2.0 TDCi 1997 CCM 115 HP 11/2007 - 06/2015
2.2 TDCi 2179 CCM 175 HP 03/2008 - 12/2012
2.0 EcoBoost 1999 CCM 203 HP 03/2010 - 06/2015
2.0 TDCi 1997 CCM 163 HP 03/2010 - 06/2015
2.0 EcoBoost 1999 CCM 199 HP 07/2010 - 06/2015
GALAXY MK II VAN (WA6)
Description Cylinder Capacity Horse Power Year
EcoBoost 1596 CCM 160 HP 02/2011 - 06/2015
2.0 1999 CCM 145 HP 05/2006 - 06/2015
2.0 EcoBoost 1999 CCM 203 HP 03/2010 - 06/2015
TDCi 1560 CCM 116 HP 03/2013 - 06/2015
TDCi 1997 CCM 116 HP 01/2007 - 06/2015
TDCi 1997 CCM 131 HP 11/2006 - 06/2015
TDCi 1997 CCM 140 HP 05/2006 - 06/2015
TDCi 1997 CCM 163 HP 03/2010 - 06/2015
MONDEO IV (BA7)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 03/2007 - 12/2014
1.6 Ti 1596 CCM 110 HP 03/2007 - 01/2015
1.6 Ti 1596 CCM 125 HP 03/2007 - 01/2015
2.0 1999 CCM 145 HP 03/2007 - 01/2015
2.5 2521 CCM 220 HP 03/2007 - 01/2015
1.8 TDCi 1753 CCM 100 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 130 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
MONDEO IV Turnier (BA7)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 03/2007 - 12/2014
1.6 Ti 1596 CCM 110 HP 03/2007 - 12/2012
1.6 Ti 1596 CCM 125 HP 03/2007 - 12/2010
2.0 1999 CCM 145 HP 03/2007 - 01/2015
2.5 2521 CCM 220 HP 03/2007 - 12/2012
1.8 TDCi 1753 CCM 100 HP 03/2007 - 12/2012
2.0 TDCi 1997 CCM 130 HP 03/2007 - 12/2012
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
MONDEO IV Saloon (BA7)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 125 HP 03/2007 - 01/2015
2.0 1999 CCM 145 HP 03/2007 - 01/2015
2.5 2521 CCM 220 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 130 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
1.6 Ti 1596 CCM 110 HP 03/2007 - 01/2015
1.8 TDCi 1753 CCM 100 HP 03/2007 - 01/2015
S-MAX (WA6)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 05/2006 - 12/2014
1.6 TDCi 1560 CCM 115 HP 02/2011 - 12/2014
1.6 EcoBoost 1596 CCM 160 HP 02/2011 - 12/2014
2.2 TDCi 2179 CCM 200 HP 07/2010 - 12/2014
2.0 EcoBoost 1999 CCM 240 HP 07/2010 - 12/2014
2.0 1999 CCM 145 HP 05/2006 - 12/2014
2.0 TDCi 1997 CCM 130 HP 05/2006 - 12/2014
2.0 TDCi 1997 CCM 140 HP 05/2006 - 12/2014
1.8 TDCi 1753 CCM 125 HP 05/2006 - 12/2014
2.2 TDCi 2179 CCM 175 HP 03/2008 - 12/2012
2.3 2261 CCM 160 HP 07/2007 - 12/2014
2.0 TDCi 1997 CCM 115 HP 11/2007 - 12/2014
2.0 Flexifuel 1999 CCM 145 HP 05/2006 - 12/2014
1.8 TDCi 1753 CCM 100 HP 01/2007 - 12/2010
VOLVO
S60 II (134)
Description Cylinder Capacity Horse Power Year
DRIVe / D2 1560 CCM 114 HP 01/2011 - 12/2015
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
T4F 1596 CCM 180 HP 04/2011 - 12/2015
T3 1596 CCM 150 HP 04/2010 - 12/2015
T4 1596 CCM 180 HP 04/2010 - 12/2015
2.0 T 1999 CCM 203 HP 04/2010 - 12/2011
T5 1999 CCM 240 HP 04/2010 - 12/2014
T6 AWD 2953 CCM 304 HP 04/2010 - 12/2015
D3 1984 CCM 163 HP 04/2010 - 12/2014
D5 2400 CCM 205 HP 04/2010 - 12/2011
D5 AWD 2400 CCM 205 HP 04/2010 - 12/2011
T5 2521 CCM 253 HP 09/2011 - 12/2015
T6 AWD 2953 CCM 329 HP 04/2014 - 12/2015
D3 1984 CCM 136 HP 05/2012 - 12/2015
S60 II Cross Country (134)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 03/2015 - 05/2018
D4 1969 CCM 190 HP 03/2015 - 05/2018
D4 AWD 2400 CCM 190 HP 03/2015 - 05/2018
D4 Drive-E Polestar 1969 CCM 200 HP 03/2015 - 05/2018
S80 II (124)
Description Cylinder Capacity Horse Power Year
T4 1596 CCM 180 HP 10/2010 - 04/2014
T5 1999 CCM 241 HP 10/2010 - 12/2016
T6 AWD 2953 CCM 305 HP 10/2010 - 12/2015
D3 / D4 1984 CCM 163 HP 01/2010 - 12/2016
3.2 AWD 3192 CCM 243 HP 01/2010 - 12/2014
3.2 3192 CCM 243 HP 01/2010 - 12/2014
1.6 DRIVe 1560 CCM 114 HP 06/2011 - 01/2014
D5 AWD 2400 CCM 215 HP 06/2011 - 04/2015
D5 2400 CCM 215 HP 06/2011 - 04/2015
T4F 1596 CCM 180 HP 05/2011 - 01/2014
D5 2400 CCM 185 HP 03/2006 - 08/2009
4.4 V8 AWD 4414 CCM 316 HP 03/2006 - 03/2012
2.5 T 2521 CCM 200 HP 03/2006 - 12/2011
3.2 3192 CCM 238 HP 03/2006 - 12/2010
2.4 D 2400 CCM 163 HP 03/2006 - 03/2011
V60 I (155)
Description Cylinder Capacity Horse Power Year
2.0 T 1999 CCM 203 HP 07/2010 - 12/2012
D3 / D4 1984 CCM 163 HP 07/2010 - 12/2014
D5 2400 CCM 205 HP 07/2010 - 12/2011
D5 AWD 2400 CCM 205 HP 07/2010 - 12/2011
T3 1596 CCM 150 HP 09/2010 - 12/2015
T4 1596 CCM 180 HP 09/2010 - 12/2015
T5 1999 CCM 241 HP 09/2010 - 12/2014
T6 AWD 2953 CCM 305 HP 07/2010 - 12/2015
1.6 DRIVe 1560 CCM 114 HP 02/2011 - 12/2015
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
T4F 1596 CCM 180 HP 04/2011 - 12/2015
D6 Hybrid AWD 2400 CCM 280 HP 06/2012 - 12/2015
D3 1984 CCM 136 HP 05/2012 - 12/2015
D4 AWD 2400 CCM 163 HP 05/2012 - 12/2015
V70 III (135)
Description Cylinder Capacity Horse Power Year
T4 1596 CCM 180 HP 10/2010 - 12/2015
T5 1999 CCM 241 HP 01/2010 - 12/2014
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2015
1.6 DRIVe / D2 1560 CCM 114 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
3.2 3192 CCM 243 HP 04/2010 - 12/2014
T4F 1596 CCM 180 HP 01/2011 - 12/2015
3.2 AWD 3192 CCM 243 HP 04/2010 - 12/2015
T6 AWD 2953 CCM 305 HP 01/2010 - 12/2015
2.5 T 2521 CCM 200 HP 08/2007 - 12/2009
3.2 AWD 3192 CCM 238 HP 04/2007 - 12/2010
T6 AWD 2953 CCM 286 HP 08/2007 - 12/2010
2.4 D 2400 CCM 163 HP 04/2007 - 12/2010
D5 2400 CCM 185 HP 04/2007 - 12/2009
V70 III Estate Van (135)
Description Cylinder Capacity Horse Power Year
2.4 D5 2400 CCM 215 HP 09/2013 - 12/2015
2.4 D4 AWD 2400 CCM 163 HP 09/2013 - 12/2015
2.0 D3 DRIVe 1984 CCM 136 HP 09/2013 - 12/2015
XC70 II (136)
Description Cylinder Capacity Horse Power Year
3.2 AWD 3192 CCM 243 HP 05/2010 - 12/2014
T6 AWD 2953 CCM 304 HP 01/2010 - 04/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D3 1984 CCM 163 HP 04/2010 - 12/2015
3.2 AWD 3192 CCM 238 HP 08/2007 - 12/2011
D5 AWD 2400 CCM 185 HP 04/2007 - 12/2009
2.4 D / D4 AWD 2400 CCM 163 HP 08/2007 - 04/2016
T6 AWD 2953 CCM 286 HP 01/2008 - 12/2016
D5 AWD 2400 CCM 205 HP 04/2009 - 12/2011
2.4 D 2400 CCM 175 HP 06/2009 - 12/2010
D4 AWD 2400 CCM 181 HP 10/2013 - 04/2016
D4 1969 CCM 181 HP 10/2013 - 04/2016
T5 1969 CCM 245 HP 10/2013 - 12/2016
D5 AWD 2400 CCM 220 HP 03/2015 - 04/2016
T5 AWD 2497 CCM 254 HP 08/2015 - 12/2016
XC70 II VAN (136)
Description Cylinder Capacity Horse Power Year
2.0 D4 1984 CCM 163 HP 09/2013 - 12/2016
LAND ROVER
DISCOVERY SPORT (L550)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 150 HP From 08/2015
FREELANDER 2 (L359)
Description Cylinder Capacity Horse Power Year
2.2 eD4 2179 CCM 150 HP 08/2010 - 10/2014
2.2 TD4 4x4 2179 CCM 150 HP 10/2006 - 10/2014
2.2 SD4 4x4 2179 CCM 190 HP 08/2010 - 10/2014
2.2 TD4 4x4 2179 CCM 160 HP 10/2006 - 10/2014
2.2 TD4 4x4 2179 CCM 152 HP 01/2007 - 10/2014
2.2 TD4 4x4 2179 CCM 156 HP 10/2006 - 10/2014
FREELANDER 2 VAN (L359)
Description Cylinder Capacity Horse Power Year
2.2 TD4 4x4 2179 CCM 160 HP 10/2006 - 10/2014
RANGE ROVER EVOQUE (L538)
Description Cylinder Capacity Horse Power Year
2.2 D 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 150 HP 06/2011 - 12/2019
2.2 D 4x4 2179 CCM 190 HP 05/2011 - 12/2019
2.0 4x4 1999 CCM 241 HP 06/2011 - 12/2019
2.0 4x4 1999 CCM 240 HP 09/2011 - 12/2019
2.0 4x4 1997 CCM 290 HP 08/2017 - 12/2019
2.0 D 1999 CCM 150 HP 06/2015 - 12/2019
2.0 D 4x4 1999 CCM 150 HP 06/2015 - 12/2019
2.0 D 4x4 1999 CCM 180 HP 05/2015 - 12/2019
2.0 D 4x4 1999 CCM 241 HP 08/2017 - 12/2019
2.0 4x4 1997 CCM 241 HP 08/2017 - 12/2019
RANGE ROVER EVOQUE VAN (L538)
Description Cylinder Capacity Horse Power Year
TD4 2179 CCM 150 HP 05/2015 - 12/2019
RANGE ROVER EVOQUE Convertible (L538)
Description Cylinder Capacity Horse Power Year
2.0 D 4x4 1999 CCM 150 HP 11/2015 - 12/2019
2.0 D 4x4 1999 CCM 180 HP 11/2015 - 12/2019
2.0 4x4 1999 CCM 241 HP 11/2015 - 12/2019
2.0 D 4x4 1999 CCM 241 HP 08/2017 - 12/2019
2.0 4x4 1997 CCM 241 HP 08/2017 - 12/2019

The Brembo 09.A427.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 300
Surface : Coated
Minimum thickness [mm] : 26.5
Tightening Torque [Nm] : 170
  • Vendor BREMBO
  • SKU 09.A427.1X
  • Barcode 8020584212707
  • BLUE PRINT : ADF124305
  • BOSCH : 0 986 479 261
  • BOSCH : 0 986 479 974
  • DELPHI : BG4094C
  • FEBI BILSTEIN : 28361
  • FTE : 9071006
  • FTE : 9082778
  • HELLA : 8DD 355 118-831
  • MEYLE : 783 521 0026/PD
  • MINTEX : MDC1809C
  • TEXTAR : 92159205
  • TRW : DF4850S
  • VALEO : 197055
