Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.A454.11 Brake Disc - 1
Brembo 09.A454.11 Brake Disc - 2
Brembo 09.A454.11 Brake Disc - 1
Brembo 09.A454.11 Brake Disc - 2
BREMBO

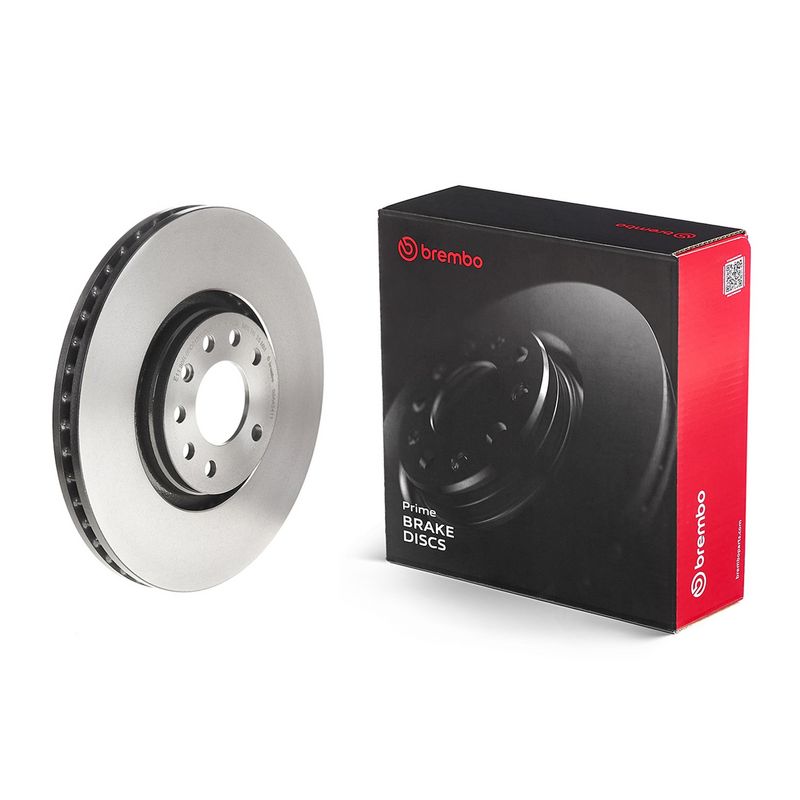

Brembo 09.A454.11 Brake Disc

SKU: 09.A454.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£64.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
ASTRA H (A04)
Description Cylinder Capacity Horse Power Year
1.8 (L48) 1796 CCM 125 HP 01/2004 - 10/2010
2.0 Turbo (L48) 1998 CCM 240 HP 03/2005 - 10/2010
ASTRA H GTC (A04)
Description Cylinder Capacity Horse Power Year
2.0 Turbo (L08) 1998 CCM 240 HP 08/2005 - 10/2010
ZAFIRA / ZAFIRA FAMILY B (A05)
Description Cylinder Capacity Horse Power Year
1.8 (M75) 1796 CCM 140 HP 07/2005 - 04/2015
2.0 (M75) 1998 CCM 241 HP 01/2006 - 12/2010
VAUXHALL
ASTRA Mk V (H) (A04)
Description Cylinder Capacity Horse Power Year
2.0 Turbo (L48) 1998 CCM 240 HP 01/2004 - 05/2009
ASTRA Mk V (H) Sport Hatch (A04)
Description Cylinder Capacity Horse Power Year
2.0 VXR (L08) 1998 CCM 240 HP 02/2009 - 11/2010
ZAFIRA Mk II (B) (A05)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 240 HP 01/2006 - 11/2014

The Brembo 09.A454.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 44
Centering Diameter [mm] : 70
Outer Diameter [mm] : 321
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25
Tightening Torque [Nm] : 110
  • Vendor BREMBO
  • SKU 09.A454.11
  • Barcode 8020584036433
  • OPEL : 569017 93185817 95526650
  • VAUXHALL : 93185817 95526650
  • BLUE PRINT : ADW194317
  • BORG & BECK : BBD4631
  • BOSCH : 0 986 479 571
  • DELPHI : BG2149
  • DELPHI : BG4185
  • DELPHI : BG4185C
  • FEBI BILSTEIN : 44122
  • FTE : 9071141
  • MINTEX : MDC1843
  • TEXTAR : 92149803
  • TRW : DF6677S
  • VALEO : 197150
