Brembo 09.A531.10 Brake Disc - 1
Brembo 09.A531.10 Brake Disc - 2
Brembo 09.A531.10 Brake Disc - 1
Brembo 09.A531.10 Brake Disc - 2
BREMBO

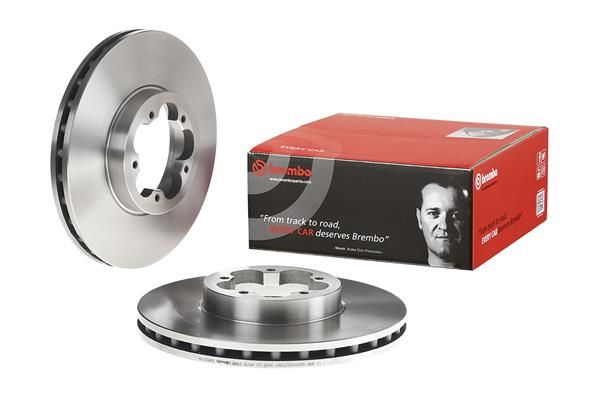

Brembo 09.A531.10 Brake Disc

SKU: 09.A531.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£86.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.4 TDCi 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
3.2 TDCi 3199 CCM 200 HP 02/2008 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.2 TDCi 4x4 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

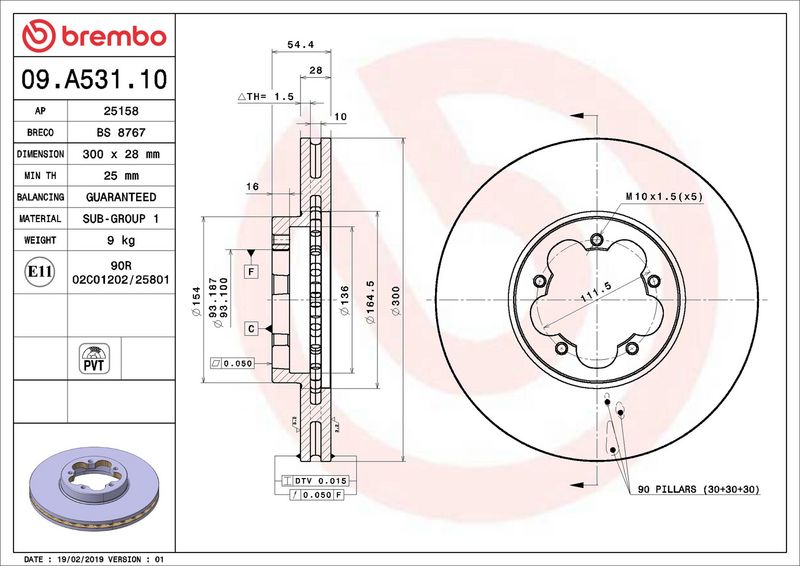

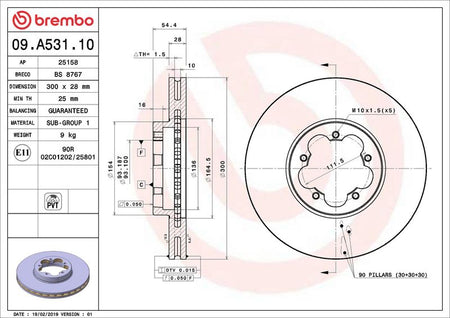

The Brembo 09.A531.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 55
Centering Diameter [mm] : 93
Outer Diameter [mm] : 300
Minimum thickness [mm] : 25
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.A531.10
  • Barcode 8020584231340
  • FORD : 1371393 1385387 1503287 1546747 2256302 6C111125AA 6C111125AB 6C161125AA ME6C1J1125AB
  • JMC : 6C111125AB
  • FORD (JMC) : 6C111125AA 6C111125AB 6C1Z1125A 6C1Z1125D ME6C1J1125AB
  • APEC : DSK2427
  • APEC : SDK6096
  • BLUE PRINT : ADF124315
  • BORG & BECK : BBD4562
  • BOSCH : 0 986 479 307
  • BOSCH : 0 986 479 B11
  • DELPHI : BG4006
  • Fahren : FBD6096
  • FEBI BILSTEIN : 28389
  • FTE : 9071229
  • FTE : 9082776
  • HELLA : 8DD 355 113-281
  • MEYLE : 715 521 7042
  • MEYLE : 783 521 7042/PD
  • MINTEX : MDC1760
  • MINTEX : MDC1760C
  • NAPA : NBD5731
  • National : NBD1387
  • SKF : VKBD 80108 V1
  • TEXTAR : 92151900
  • TEXTAR : 92151903
  • TRW : DF2390S
  • VALEO : 187151
  • VALEO : 197054
  • VALEO : 672966
