Brembo 09.A535.11 Brake Disc - 1
Brembo 09.A535.11 Brake Disc - 2
Brembo 09.A535.11 Brake Disc - 1
Brembo 09.A535.11 Brake Disc - 2
BREMBO

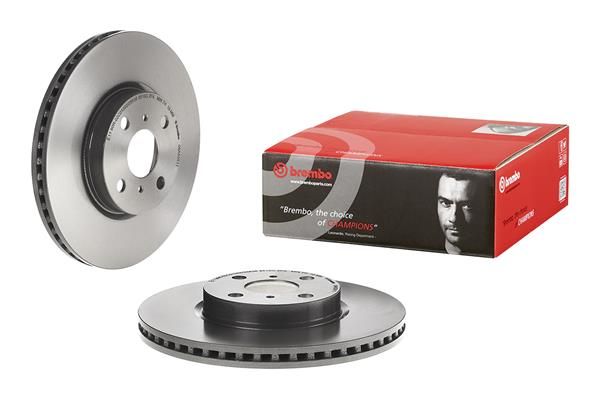

Brembo 09.A535.11 Brake Disc

SKU: 09.A535.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£80.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE142, ZRE152) 1798 CCM 136 HP 10/2006 - 07/2014
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NSP130) 1329 CCM 99 HP 10/2012 - 03/2017
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.3 VVT-i (NCP90_, NCP90R) 1299 CCM 86 HP 11/2005 - 12/2012
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 99 HP 07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R) 1364 CCM 90 HP 08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R) 1298 CCM 87 HP 08/2005 - 11/2010
1.8 VVTi (ZSP90_, ZSP90R) 1798 CCM 133 HP 01/2007 - 12/2011
1.5 (NCP91_, NCP91R) 1497 CCM 109 HP 11/2005 - 12/2014
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 100 HP 11/2008 - 12/2011
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017
1.5 Hybrid (NHP130_, NHP130) 1497 CCM 101 HP 03/2012 - 06/2020
1.5 Hybrid (NHP130_) 1497 CCM 101 HP 04/2015 - 03/2017

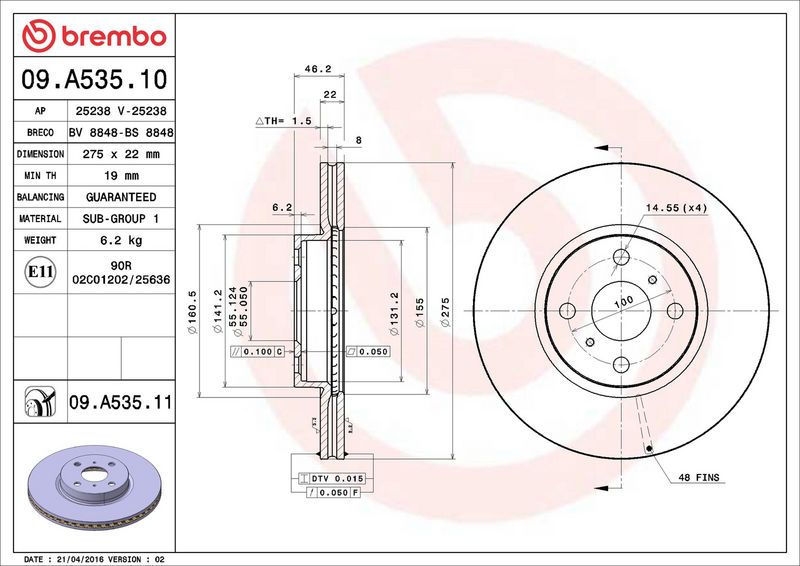

The Brembo 09.A535.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 46
Centering Diameter [mm] : 55
Outer Diameter [mm] : 275
Surface : Coated
Minimum thickness [mm] : 19
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A535.11
  • Barcode 8020584210680
  • TOYOTA : 435120D080 435120D100 435120D190 4351252130
  • TOYOTA (GAC) : 435120D240 435120D250
  • TOYOTA (FAW) : 435120D200
  • BLUE PRINT : ADT343217
  • BORG & BECK : BBD4560
  • BOSCH : 0 986 479 431
  • DELPHI : BG4054
  • FEBI BILSTEIN : 108645
  • FTE : 9072238
  • HELLA : 8DD 355 113-591
  • MEYLE : 30-15 521 0059
  • MINTEX : MDC2061
  • SKF : VKBD 80495 V2
  • TEXTAR : 92156200
  • TRW : DF4804
  • VALEO : 197182
  • VALEO : 672750
