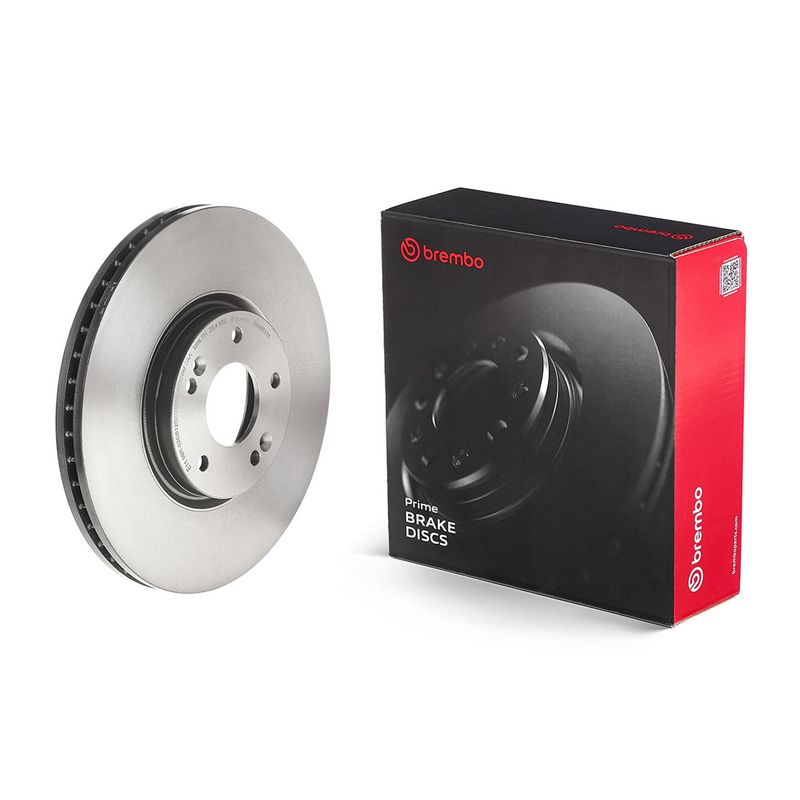

Brembo 09.A601.11 Brake Disc - 1
Brembo 09.A601.11 Brake Disc - 2
Brembo 09.A601.11 Brake Disc - 1
Brembo 09.A601.11 Brake Disc - 2
BREMBO

Brembo 09.A601.11 Brake Disc

SKU: 09.A601.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£71.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
ix55
Description Cylinder Capacity Horse Power Year
3.8 V6 3778 CCM 264 HP 01/2011 - 11/2012
3.8 V6 4WD 3778 CCM 264 HP 01/2011 - 11/2012
SANTA FÉ II (CM)
Description Cylinder Capacity Horse Power Year
2.7 4x4 2656 CCM 170 HP 03/2006 - 12/2012
2.7 2656 CCM 170 HP 03/2006 - 12/2012
2.2 CRDi 2188 CCM 139 HP 03/2006 - 12/2012
2.2 CRDi 4x4 2188 CCM 139 HP 03/2006 - 12/2012
2.7 V6 GLS 2656 CCM 189 HP 03/2006 - 12/2009
2.7 V6 GLS 4x4 2656 CCM 189 HP 03/2006 - 12/2009
2.2 CRDi GLS 2188 CCM 150 HP 03/2006 - 12/2009
2.2 CRDi GLS 4x4 2188 CCM 150 HP 03/2006 - 12/2009
2.2 CRDi 2188 CCM 155 HP 03/2006 - 12/2009
2.2 CRDi 4x4 2188 CCM 155 HP 03/2006 - 12/2009
2.2 CRDi 2199 CCM 197 HP 01/2009 - 12/2012
2.2 CRDi 4x4 2199 CCM 197 HP 01/2009 - 12/2012
SANTA FÉ II SUV Van (CM)
Description Cylinder Capacity Horse Power Year
CRDi 2188 CCM 155 HP 09/2006 - 12/2011
CRDi 2199 CCM 197 HP 01/2009 - 05/2013

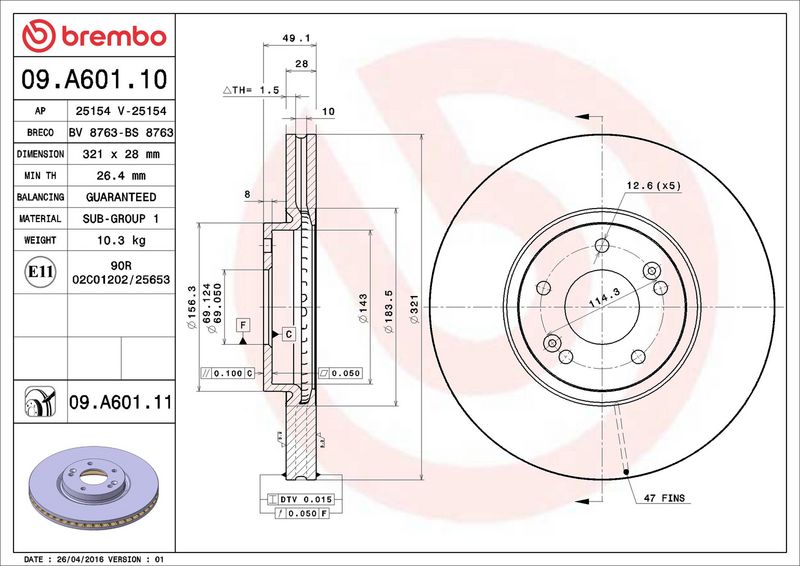

The Brembo 09.A601.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 69
Outer Diameter [mm] : 321
Surface : Coated
Minimum thickness [mm] : 26.4
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.A601.11
  • Barcode 8020584033470
  • HYUNDAI : 517122B700
  • BLUE PRINT : ADG043122
  • BORG & BECK : BBD5906S
  • BOSCH : 0 986 479 536
  • DELPHI : BG9056
  • DELPHI : BG9056C
  • FEBI BILSTEIN : 29350
  • FTE : 9081052
  • HELLA : 8DD 355 118-161
  • MEYLE : 37-15 521 0033
  • MEYLE : 37-15 521 0033/PD
  • MINTEX : MDC2023
  • SKF : VKBD 81092 V1
  • TEXTAR : 92166003
  • TEXTAR : 92166005
  • TRW : DF6222
  • VALEO : 197622
  • VALEO : 672968
