BREMBO

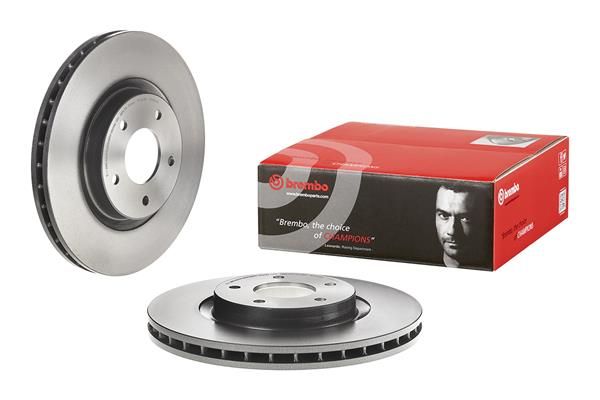

Brembo 09.A603.11 Brake Disc

SKU: 09.A603.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£134.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

DAIMLER
DAIMLER XJ (X30_)
Description Cylinder Capacity Horse Power Year
4.0 Long 3996 CCM 294 HP 10/1997 - 06/2003
JAGUAR
XJ (X308)
Description Cylinder Capacity Horse Power Year
3.2 3248 CCM 237 HP 07/1997 - 05/2003
4.0 3996 CCM 284 HP 07/1997 - 05/2003
4.0 3996 CCM 363 HP 07/1997 - 05/2003
4.0 3996 CCM 375 HP 09/1997 - 05/2003
4.0 3996 CCM 294 HP 10/1997 - 04/2003
3.2 3248 CCM 243 HP 11/1997 - 06/2003
XK 8 Coupe (X100)
Description Cylinder Capacity Horse Power Year
4.0 3996 CCM 284 HP 03/1996 - 07/2005
4.0 3996 CCM 363 HP 02/1998 - 07/2005
4.0 XKR 3996 CCM 375 HP 05/1998 - 07/2005
4.2 4196 CCM 298 HP 08/2002 - 07/2005
4.0 3996 CCM 294 HP 05/1996 - 07/2005
XK 8 Convertible (X100)
Description Cylinder Capacity Horse Power Year
4.0 3996 CCM 284 HP 03/1996 - 12/2002
4.0 3996 CCM 363 HP 02/1998 - 07/2005
4.0 XKR 3996 CCM 375 HP 05/1998 - 07/2005
4.2 4196 CCM 298 HP 08/2002 - 12/2006
4.0 3996 CCM 294 HP 05/1996 - 07/1999

The Brembo 09.A603.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28.5 mm brake disc thickness, 5 mounting holes, and 74 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28.5
Number of Holes : 5
Height [mm] : 50
Centering Diameter [mm] : 74
Outer Diameter [mm] : 325
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A603.11
  • Barcode 8020584019498
  • DAIMLER : C2C41250 JLM20617
  • JAGUAR : C2C41250 JLM20617
  • APEC : DSK2170
  • BLUE PRINT : ADJ134358
  • BORG & BECK : BBD5711S
  • DELPHI : BG3544
  • FEBI BILSTEIN : 44138
  • MEYLE : 18-15 521 0004/PD
  • MINTEX : MDC2105
  • National : NBD771
  • TEXTAR : 92184903
  • TRW : DF4219S
