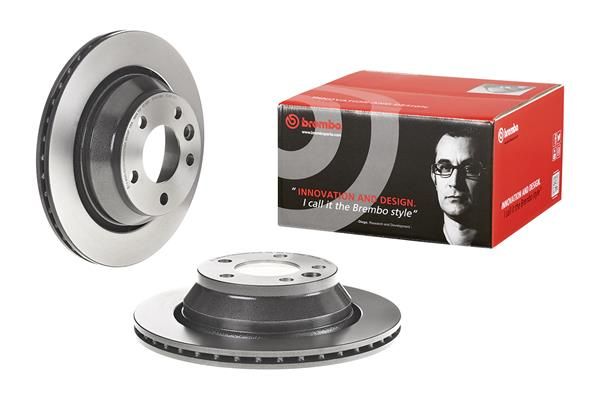

Brembo 09.A616.11 Brake Disc - 1

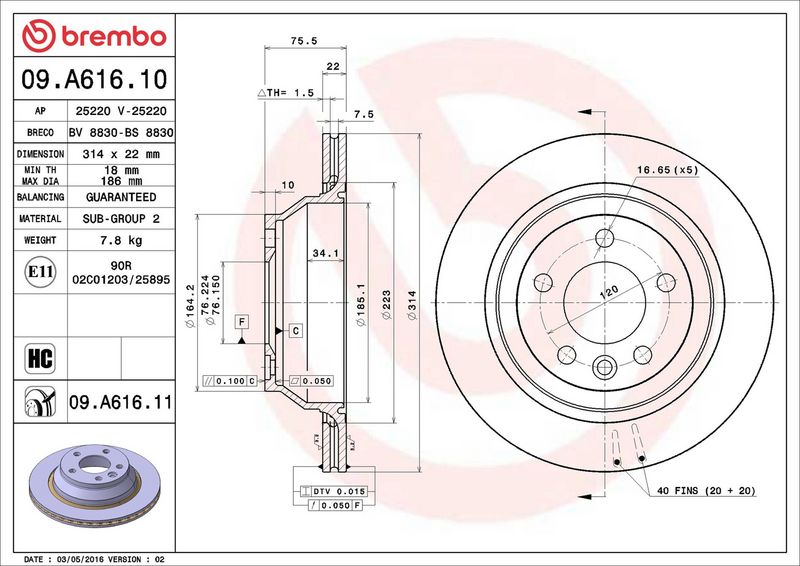

Brembo 09.A616.11 Brake Disc - 2
Brembo 09.A616.11 Brake Disc - 1
Brembo 09.A616.11 Brake Disc - 2
BREMBO

Brembo 09.A616.11 Brake Disc

SKU: 09.A616.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£111.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 84 HP 05/2007 - 12/2009
MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 136 HP 05/2010 - 08/2015
2.0 TDI 4motion 1968 CCM 136 HP 05/2010 - 08/2015
2.0 1984 CCM 115 HP 11/2003 - 08/2015
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
VR6 3.2 3189 CCM 235 HP 02/2004 - 12/2009
VR6 3.2 4motion 3189 CCM 235 HP 07/2004 - 12/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
2.0 TDI 1968 CCM 114 HP 05/2011 - 08/2015
2.0 TSI 1984 CCM 204 HP 05/2011 - 08/2015
2.0 TSI 4motion 1984 CCM 204 HP 07/2011 - 08/2015
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
3.2 V6 3189 CCM 220 HP 10/2002 - 11/2006
5.0 V10 TDI 4921 CCM 313 HP 10/2002 - 05/2010
4.2 V8 4172 CCM 310 HP 12/2002 - 11/2006
2.5 R5 TDI 2461 CCM 174 HP 01/2003 - 05/2010
6.0 W12 5998 CCM 450 HP 08/2004 - 05/2010
3.6 V6 FSI 3597 CCM 280 HP 10/2005 - 05/2010
4.2 V8 FSI 4163 CCM 350 HP 06/2006 - 05/2010
3.0 V6 TDI 2967 CCM 240 HP 11/2007 - 05/2010
2.5 R5 TDI 2461 CCM 163 HP 08/2003 - 05/2010
TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.0 1984 CCM 115 HP 11/2003 - 05/2013
VR6 3.2 3189 CCM 235 HP 08/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 04/2004 - 11/2009
TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.0 1984 CCM 115 HP 11/2003 - 08/2015
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
3.2 V6 4motion 3189 CCM 235 HP 11/2003 - 12/2009
2.5 TDi 2461 CCM 163 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009
TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 85 HP 04/2003 - 11/2009
1.9 TDI 1896 CCM 105 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.0 1984 CCM 115 HP 11/2003 - 08/2015
VR6 3.2 3189 CCM 235 HP 02/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
1.9 TDI 1896 CCM 102 HP 01/2006 - 11/2009
VR6 3.2 4motion 3189 CCM 235 HP 11/2003 - 11/2009
1.9 TDI 1896 CCM 84 HP 01/2006 - 11/2009

The Brembo 09.A616.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Height [mm] : 76
Centering Diameter [mm] : 76
Outer Diameter [mm] : 314
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18
Tightening Torque [Nm] : 170
  • Vendor BREMBO
  • SKU 09.A616.11
  • Barcode 8020584225875
  • VW : 7L6615601C 7L6615601E 7L6615601G
  • BORG & BECK : BBD4388
  • BOSCH : 0 986 479 094
  • BOSCH : 0 986 479 B72
  • BOSCH : 0 986 479 S54
  • DELPHI : BG3894
  • FTE : 9071020
  • HELLA : 8DD 355 109-801
  • MEYLE : 115 523 1116
  • MINTEX : MDC1680
  • SKF : VKBD 90539 V1
  • TEXTAR : 92121903
  • TRW : DF4718
  • TRW : DF4718S
  • VALEO : 197243
  • VALEO : 672746
