BREMBO

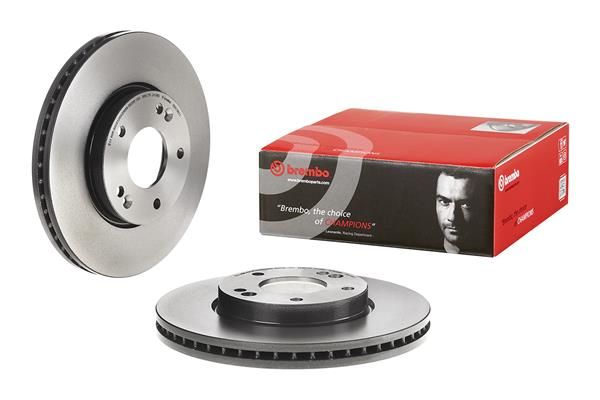

Brembo 09.A706.11 Brake Disc

SKU: 09.A706.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£98.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA

CARENS I MPV (FC, FJ)

Description	Cylinder Capacity	Horse Power	Year
2.0 CRDi	1991 CCM	140 HP	11/2005 - 04/2006

CARENS III MPV (UN)

Description	Cylinder Capacity	Horse Power	Year
1.6 CVVT	1591 CCM	126 HP	06/2009 - 03/2013
1.6 CRDi 128	1582 CCM	128 HP	10/2010 - 03/2013
2.0 CRDi 115	1991 CCM	115 HP	05/2007 - 03/2013
2.0 CVVT	1998 CCM	144 HP	09/2006 - 06/2013
2.0 CRDi 140	1991 CCM	140 HP	09/2006 - 03/2013
1.6 CVVT	1591 CCM	132 HP	08/2009 - 03/2013
2.0 CRDi 135	1991 CCM	136 HP	08/2009 - 03/2013
1.6 CRDi 110	1582 CCM	116 HP	10/2010 - 03/2013

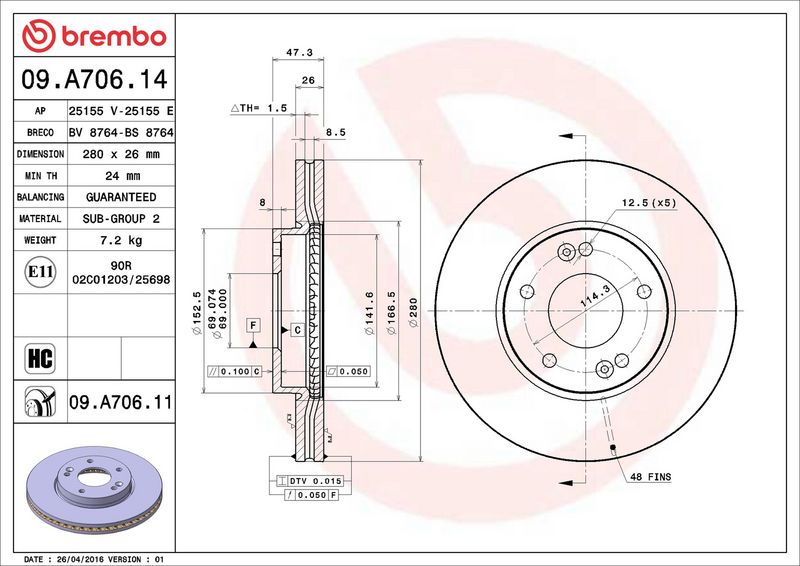

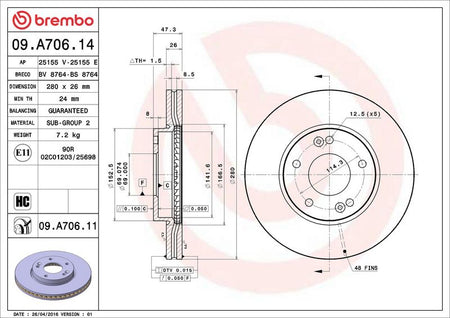

The Brembo 09.A706.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 26

Number of Holes : 5

Height [mm] : 47

Centering Diameter [mm] : 69

Outer Diameter [mm] : 280

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 24

Tightening Torque [Nm] : 98

BLUE PRINT : ADG043135
BOSCH : 0 986 479 460
DELPHI : BG3861
DELPHI : BG3861C
FEBI BILSTEIN : 108601
HELLA : 8DD 355 120-141
MEYLE : 37-15 521 0029
MEYLE : 37-15 521 0029/PD
MINTEX : MDC1780C
SKF : VKBD 80029 V2
TEXTAR : 92133905
TRW : DF4283
VALEO : 672743

Brembo 09.A706.11 Brake Disc
