Brembo 09.A716.11 Brake Disc - 1
Brembo 09.A716.11 Brake Disc - 2
Brembo 09.A716.11 Brake Disc - 1
Brembo 09.A716.11 Brake Disc - 2
BREMBO

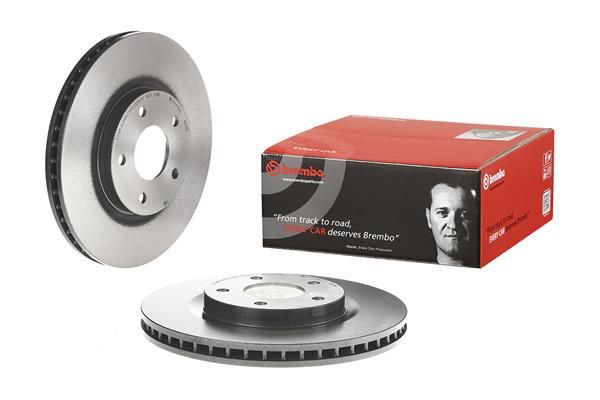

Brembo 09.A716.11 Brake Disc

SKU: 09.A716.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£87.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
QASHQAI I (J10, NJ10)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP 01/2010 - 12/2013
1.6 1598 CCM 117 HP 11/2010 - 12/2013
2.0 1997 CCM 141 HP 02/2007 - 12/2013
2.0 All-wheel Drive 1997 CCM 141 HP 02/2007 - 12/2013
1.6 dCi All-wheel Drive 1598 CCM 130 HP 10/2011 - 12/2013
1.6 dCi 1598 CCM 130 HP 10/2011 - 12/2013
1.6 1598 CCM 114 HP 02/2007 - 12/2013
1.5 dCi 1461 CCM 106 HP 11/2006 - 11/2013
2.0 dCi 1995 CCM 150 HP 02/2007 - 12/2013
2.0 dCi All-wheel Drive 1995 CCM 150 HP 02/2007 - 12/2013
1.5 dCi 1461 CCM 103 HP 08/2008 - 01/2010
2.0 1997 CCM 139 HP 02/2007 - 12/2013
2.0 All-wheel Drive 1997 CCM 139 HP 02/2007 - 12/2013
QASHQAI +2 (JJ10E)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 114 HP 02/2007 - 12/2013
1.6 1598 CCM 117 HP 02/2010 - 11/2013
2.0 1997 CCM 139 HP 02/2007 - 12/2013
2.0 1997 CCM 141 HP 08/2008 - 04/2014
1.5 dCi 1461 CCM 103 HP 08/2008 - 01/2010
1.5 dCi 1461 CCM 106 HP 08/2008 - 11/2013
1.5 dCi 1461 CCM 110 HP 02/2010 - 11/2013
X-TRAIL II (T31)
Description Cylinder Capacity Horse Power Year
2.0 dCi 1995 CCM 150 HP 06/2007 - 11/2013
2.0 dCi 4x4 1995 CCM 173 HP 06/2007 - 11/2013
2.0 4x4 1997 CCM 141 HP 06/2007 - 11/2013
2.0 dCi 4x4 1995 CCM 150 HP 06/2007 - 11/2013
2.5 4x4 2488 CCM 169 HP 06/2007 - 11/2013
2.0 FWD 1997 CCM 141 HP 03/2007 - 11/2013
2.0 FWD 1998 CCM 140 HP 06/2008 - 11/2013
2.0 4x4 1998 CCM 140 HP 06/2008 - 11/2013
2.0 4x4 1997 CCM 137 HP 06/2007 - 11/2013
2.0 dCi 4x4 1995 CCM 177 HP 10/2009 - 11/2013
X-TRAIL VAN (T31)
Description Cylinder Capacity Horse Power Year
dCi 1995 CCM 150 HP 01/2011 - 02/2014
dCi 4x4 1995 CCM 173 HP 03/2013 - 02/2014

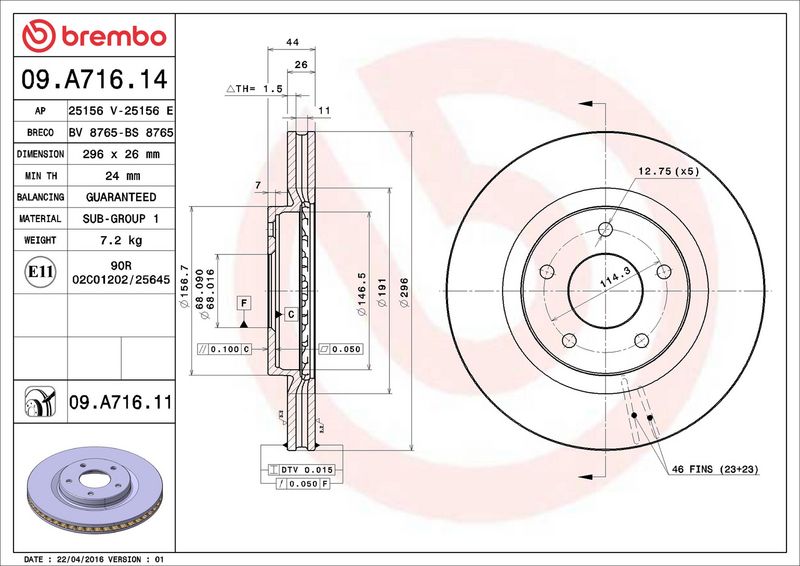

The Brembo 09.A716.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 44
Centering Diameter [mm] : 68
Outer Diameter [mm] : 296
Surface : Coated
Minimum thickness [mm] : 24
Tightening Torque [Nm] : 113
  • Vendor BREMBO
  • SKU 09.A716.11
  • Barcode 8020584033319
  • BLUE PRINT : ADN143130
  • BOSCH : 0 986 479 C04
  • DELPHI : BG4109
  • DELPHI : BG4109C
  • FEBI BILSTEIN : 108381
  • FTE : 9071375
  • HELLA : 8DD 355 114-601
  • MEYLE : 36-15 521 0071/PD
  • MINTEX : MDC1905
  • MINTEX : MDC1905C
  • SKF : VKBD 80070 V2
  • TEXTAR : 92167403
  • TEXTAR : 92167405
  • TRW : DF4964
  • VALEO : 197317
  • VALEO : 672509
