BREMBO

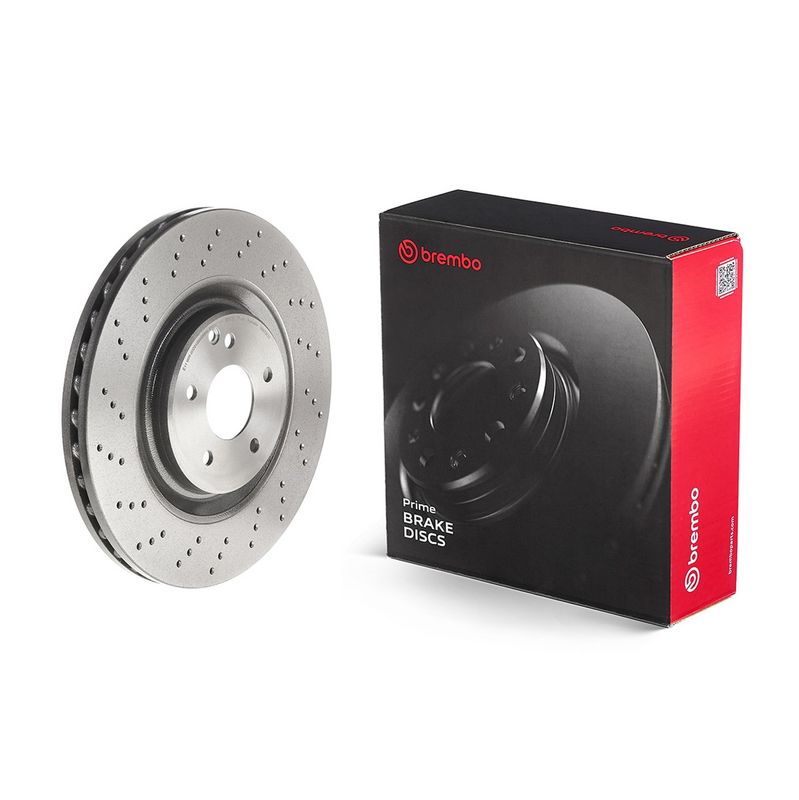

Brembo 09.A731.11 Brake Disc

SKU: 09.A731.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£76.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 32 AMG Kompressor (203.065) 3199 CCM 354 HP 02/2001 - 02/2007
C 30 CDI AMG (203.018) 2950 CCM 231 HP 01/2003 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 32 AMG Kompressor (203.265) 3199 CCM 354 HP 03/2001 - 08/2007
C 30 CDI AMG (203.218) 2950 CCM 231 HP 01/2003 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 32 AMG Kompressor (203.765) 3199 CCM 354 HP 05/2002 - 05/2008
C 30 CDI AMG (203.718) 2950 CCM 231 HP 09/2002 - 05/2008
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 500 (209.375) 4966 CCM 306 HP 06/2002 - 05/2009
CLK 55 AMG (209.376) 5439 CCM 367 HP 09/2002 - 05/2009
CLK 350 (209.356) 3498 CCM 272 HP 01/2005 - 05/2009
CLK 320 CDI (209.320) 2987 CCM 224 HP 01/2005 - 05/2009
CLK 500 (209.372) 5461 CCM 388 HP 06/2006 - 05/2009
CLK Convertible (A209)
Description Cylinder Capacity Horse Power Year
CLK 500 (209.475) 4966 CCM 306 HP 02/2003 - 03/2010
CLK 55 AMG (209.476) 5439 CCM 367 HP 06/2002 - 03/2010
CLK 350 (209.456) 3498 CCM 272 HP 01/2005 - 03/2010
CLK 320 CDI (209.420) 2987 CCM 224 HP 03/2005 - 03/2010
CLK 500 (209.472) 5461 CCM 388 HP 06/2006 - 03/2010
SLK (R171)
Description Cylinder Capacity Horse Power Year
55 AMG (171.473) 5439 CCM 360 HP 06/2004 - 02/2011
55 AMG (171.473) 5439 CCM 400 HP 06/2006 - 02/2011
55 AMG (171.473) 5439 CCM 360 HP 09/2009 - 12/2011

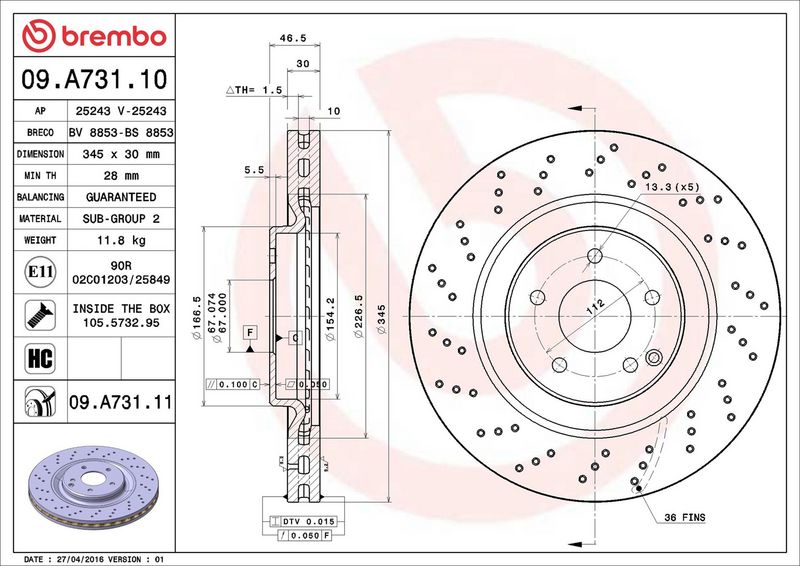

The Brembo 09.A731.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 47
Centering Diameter [mm] : 67
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
Tightening Torque [Nm] : 110
  • Vendor BREMBO
  • SKU 09.A731.11
  • Barcode 8020584028766
  • MERCEDES-BENZ : 2034210912 A2034210912
  • BORG & BECK : BBD5917S
  • BOSCH : 0 986 479 651
  • DELPHI : BG9876
  • FEBI BILSTEIN : 37516
  • FTE : 9071159
  • HELLA : 8DD 355 128-141
  • MINTEX : MDC1790
  • SKF : VKBD 80443 V1
  • TEXTAR : 92123703
  • TRW : DF4341S
