Brembo 09.A732.11 Brake Disc - 1
Brembo 09.A732.11 Brake Disc - 2
Brembo 09.A732.11 Brake Disc - 1
Brembo 09.A732.11 Brake Disc - 2
BREMBO

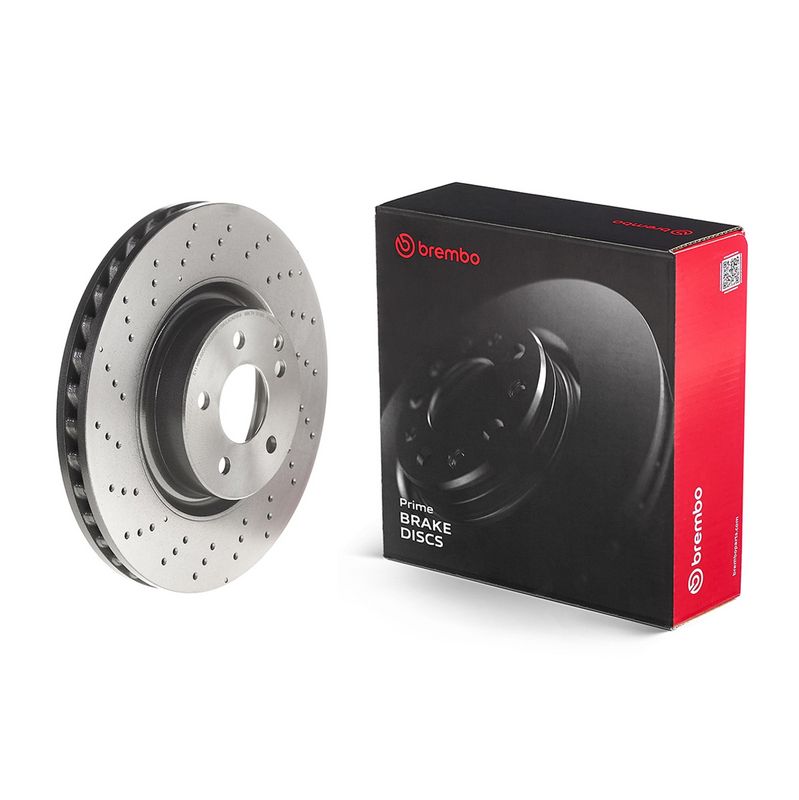

Brembo 09.A732.11 Brake Disc

SKU: 09.A732.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£84.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
S-CLASS (W221, V221)
Description Cylinder Capacity Horse Power Year
S 400 Hybrid (221.095, 221.195) 3498 CCM 279 HP 01/2009 - 12/2013
S 250 CDI (221.003, 221.103) 2143 CCM 204 HP 01/2011 - 12/2013
S 350 BlueTec (221.026, 221.126) 2987 CCM 258 HP 04/2011 - 12/2013
S 350 CGI (221.057, 221.157) 3498 CCM 306 HP 04/2011 - 12/2013
S 350 CGI 4-matic (221.082, 221.182) 3498 CCM 306 HP 04/2011 - 12/2013
S 350 CDI (221.022, 221.122) 2987 CCM 235 HP 06/2009 - 12/2013
S 350 (221.056, 221.156) 3498 CCM 272 HP 10/2005 - 12/2013
S 320 CDI (221.022, 221.122) 2987 CCM 235 HP 12/2005 - 06/2009

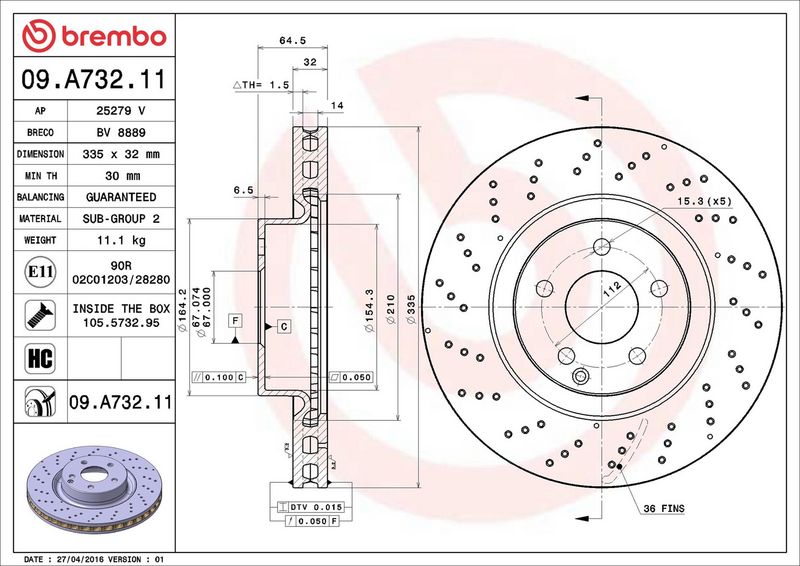

The Brembo 09.A732.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 335
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 09.A732.11
  • Barcode 8020584037515
  • MERCEDES-BENZ : 2214210612 2214211012 2214211712 A2214210612 A2214211012 A2214211712
  • BRABUS : A2214211012 A2214211712
  • BLUE PRINT : ADU174359
  • BORG & BECK : BBD6049S
  • BOSCH : 0 986 479 413
  • DELPHI : BG9093
  • DELPHI : BG9093C
  • FEBI BILSTEIN : 26407
  • FTE : 9071214
  • HELLA : 8DD 355 115-011
  • MEYLE : 083 521 2105/PD
  • MINTEX : MDC1862
  • National : NBD2140
  • SKF : VKBD 80559 V1
  • TEXTAR : 92171903
  • TEXTAR : 92171905
  • TRW : DF6077S
  • VALEO : 197479
