Brembo 09.A760.11 Brake Disc - 1
Brembo 09.A760.11 Brake Disc - 2
Brembo 09.A760.11 Brake Disc - 1
Brembo 09.A760.11 Brake Disc - 2
BREMBO

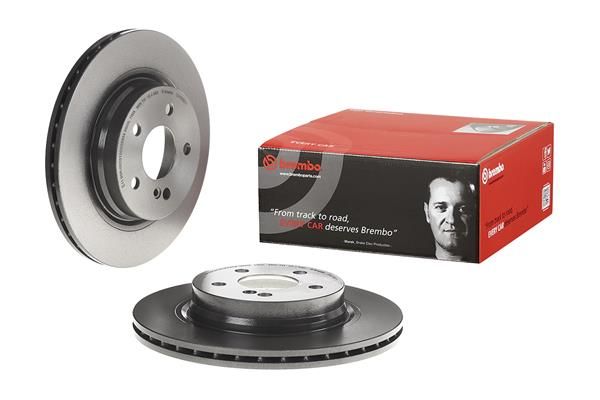

Brembo 09.A760.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.A760.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£79.79 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W204)
Description Cylinder Capacity Horse Power Year
C 250 CDI 4-matic (204.082) 2143 CCM 204 HP 01/2011 - 01/2014
C 300 CDI 4-matic (204.092) 2987 CCM 231 HP 01/2011 - 01/2014
C 350 (204.057) 3498 CCM 306 HP 01/2011 - 01/2014
C 350 4-matic (204.088) 3498 CCM 306 HP 01/2011 - 01/2014
C 350 CDI (204.023) 2987 CCM 265 HP 06/2011 - 01/2014
C 320 CDI (204.022) 2987 CCM 224 HP 01/2007 - 01/2014
C-CLASS T-Model (S204)
Description Cylinder Capacity Horse Power Year
C 250 CDI 4-matic (204.282) 2143 CCM 204 HP 04/2010 - 08/2014
C 350 CDI (204.223) 2987 CCM 265 HP 06/2011 - 08/2014
C 350 CGI (204.257) 3498 CCM 306 HP 06/2011 - 08/2014
C 350 (204.256) 3498 CCM 272 HP 08/2007 - 08/2014
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 250 CDI (204.303) 2143 CCM 204 HP From 06/2011
C 180 (204.349) 1796 CCM 156 HP From 06/2011
C 250 (204.347) 1796 CCM 204 HP From 06/2011
C 350 (204.357) 3498 CCM 306 HP From 06/2011
C 200 CGI (204.348) 1796 CCM 184 HP From 06/2011
C 350 4-matic (204.388) 3498 CCM 306 HP From 09/2013
E-CLASS Coupe (C207)
Description Cylinder Capacity Horse Power Year
E 350 CDI (207.323) 2987 CCM 265 HP 06/2011 - 06/2013
E 300 (207.355) 3498 CCM 252 HP 04/2011 - 06/2016
E 350 (207.359) 3498 CCM 306 HP 04/2011 - 12/2014
E 500 (207.373) 4663 CCM 408 HP 09/2011 - 12/2016
E 350 CGI (207.357) 3498 CCM 292 HP 01/2009 - 12/2011
E 500 (207.372) 5461 CCM 388 HP 01/2009 - 12/2016
E 350 CDI (207.322) 2987 CCM 231 HP 01/2009 - 06/2011
E 400 (207.365) 2996 CCM 333 HP 06/2013 - 12/2016
E 350 BlueTEC (207.326) 2987 CCM 252 HP 06/2013 - 12/2016
E-CLASS Convertible (A207)
Description Cylinder Capacity Horse Power Year
E 350 CDI (207.423) 2987 CCM 265 HP 04/2011 - 12/2013
E 300 (207.455) 3498 CCM 252 HP 04/2011 - 12/2016
E 350 (207.459) 3498 CCM 306 HP 04/2011 - 12/2014
E 500 (207.473) 4663 CCM 408 HP 09/2011 - 12/2016
E 350 CDI (207.422) 2987 CCM 231 HP 01/2010 - 12/2011
E 350 CGI (207.457) 3498 CCM 292 HP 01/2010 - 12/2014
E 500 (207.472) 5461 CCM 388 HP 01/2010 - 12/2011
E 350 BlueTEC (207.426) 2987 CCM 252 HP 06/2013 - 12/2016

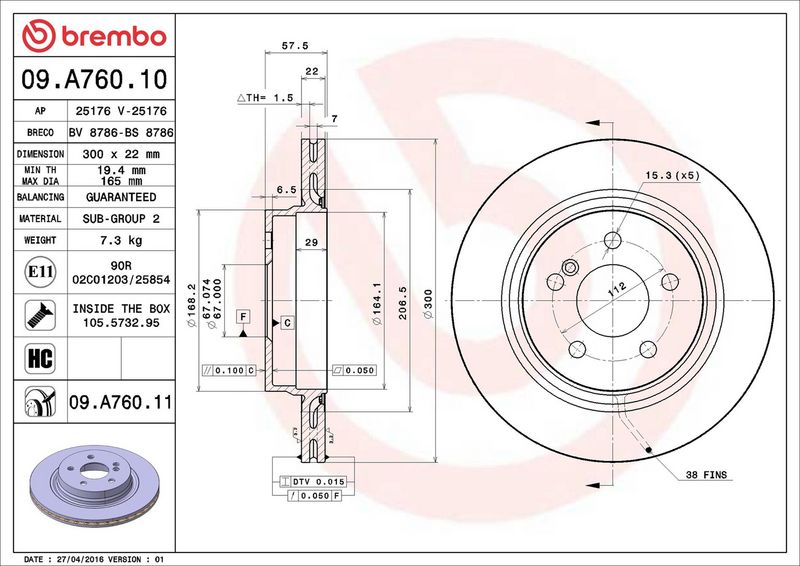

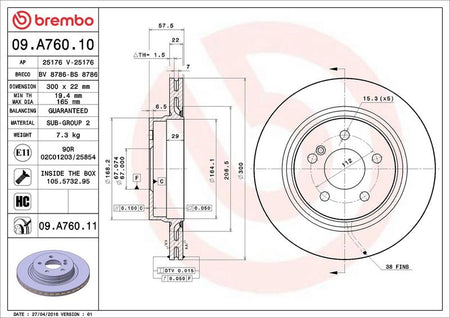

The Brembo 09.A760.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 58
Centering Diameter [mm] : 67
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.A760.11
  • Barcode 8020584020104
  • MERCEDES-BENZ : 0004231212 2044230712 4231212 A0004231212 A2044230712
  • BLUE PRINT : ADU174305
  • BORG & BECK : BBD4703
  • BOSCH : 0 986 479 411
  • DELPHI : BG4226
  • DELPHI : BG4226C
  • FEBI BILSTEIN : 43838
  • FTE : 9082292
  • FTE : 9082606
  • HELLA : 8DD 355 118-941
  • HELLA : 8DD 355 129-531
  • MEYLE : 015 523 0033/PD
  • MINTEX : MDC2051
  • SKF : VKBD 90204 V1
  • TEXTAR : 92163605
  • TRW : DF4864S
  • VALEO : 197730
  • VALEO : 673397
