BREMBO

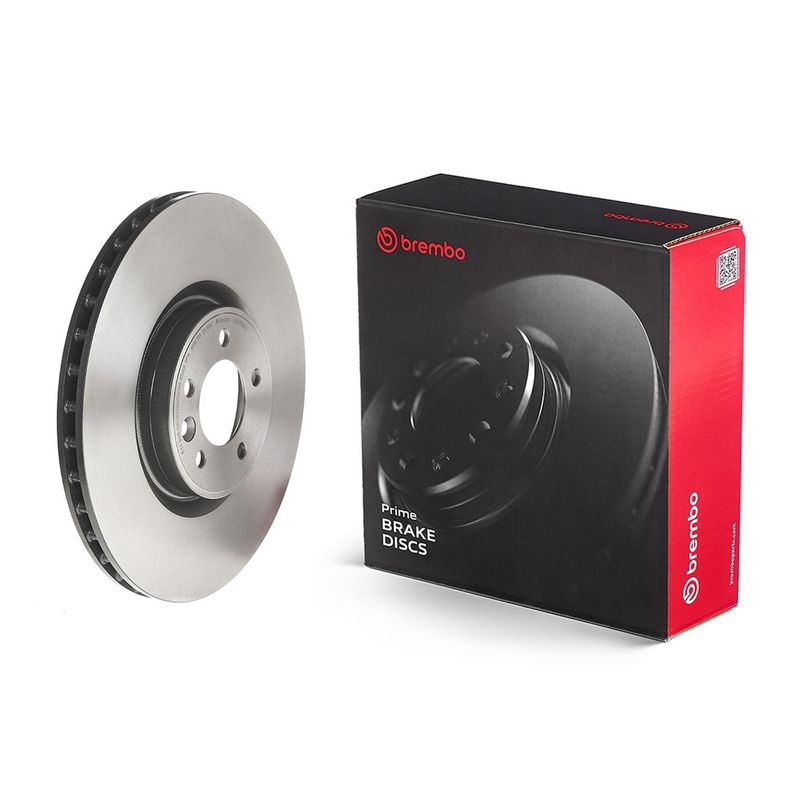

Brembo 09.A773.11 Brake Disc

SKU: 09.A773.11
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£85.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
RANGE ROVER SPORT I (L320)
Description Cylinder Capacity Horse Power Year
5.0 4x4 4999 CCM 506 HP 04/2009 - 03/2013
5.0 4x4 4999 CCM 510 HP 09/2009 - 03/2013
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
4.4 SDV8 4x4 4367 CCM 340 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 09/2021
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
4.4 SDV8 4x4 4367 CCM 313 HP 08/2013 - 09/2021
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 09/2021
5.0 SCV8 4x4 5000 CCM 525 HP 11/2017 - 09/2021
5.0 SCV8 4x4 5000 CCM 566 HP 11/2017 - 09/2021
3.0 SDV6 4x4 2993 CCM 275 HP 10/2018 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 4x4 4999 CCM 510 HP 04/2013 - 12/2018
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 SDV6 4x4 2993 CCM 292 HP 04/2013 - 12/2016
3.0 TDV6 4x4 2993 CCM 258 HP 04/2013 - 03/2022
3.0 TDV6 4x4 2993 CCM 211 HP 04/2013 - 12/2018
3.0 SDV6 4x4 2993 CCM 249 HP 04/2013 - 03/2022
4.4 SDV8 4x4 4367 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 03/2022
5.0 SCV8 4x4 4999 CCM 550 HP 01/2014 - 12/2018
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 12/2018
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 12/2017
2.0 SD4 4x4 1999 CCM 241 HP 08/2016 - 03/2022
2.0 Si4 4x4 1997 CCM 300 HP 10/2017 - 03/2022
5.0 SCV8 4x4 4999 CCM 525 HP 11/2017 - 03/2022

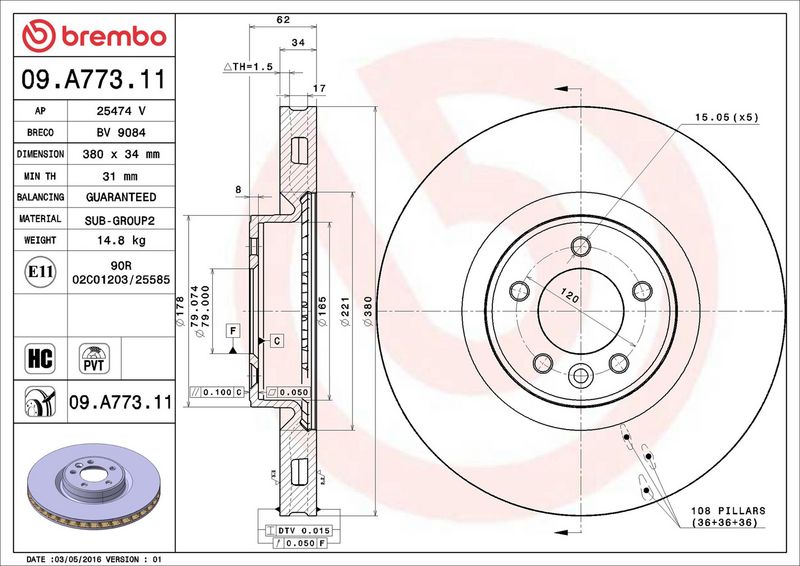

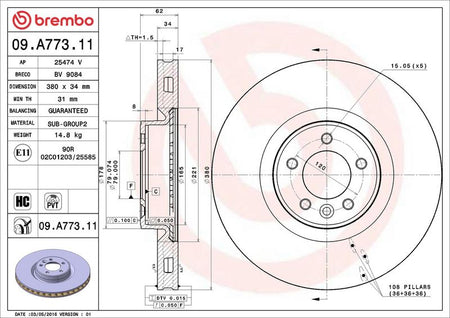

The Brembo 09.A773.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 34 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Height [mm] : 62
Centering Diameter [mm] : 79
Outer Diameter [mm] : 380
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 31
  • Vendor BREMBO
  • SKU 09.A773.11
  • Barcode 8020584220856
  • LAND ROVER : LR016176 LR027106 LR189039
  • APEC : DSK2835
  • APEC : SDK6660
  • BLUE PRINT : ADJ134305
  • BORG & BECK : BBD5967S
  • BOSCH : 0 986 479 B18
  • DELPHI : BG9079C
  • Fahren : FBD6660
  • FEBI BILSTEIN : 108529
  • MEYLE : 53-15 521 0009/PD
  • MINTEX : MDC2334C
  • NAPA : NBD5638
  • National : NBD2004
  • SKF : VKBD 80369 V1
  • TEXTAR : 92235603
  • TEXTAR : 92235605
  • TRW : DF6508S
