BREMBO

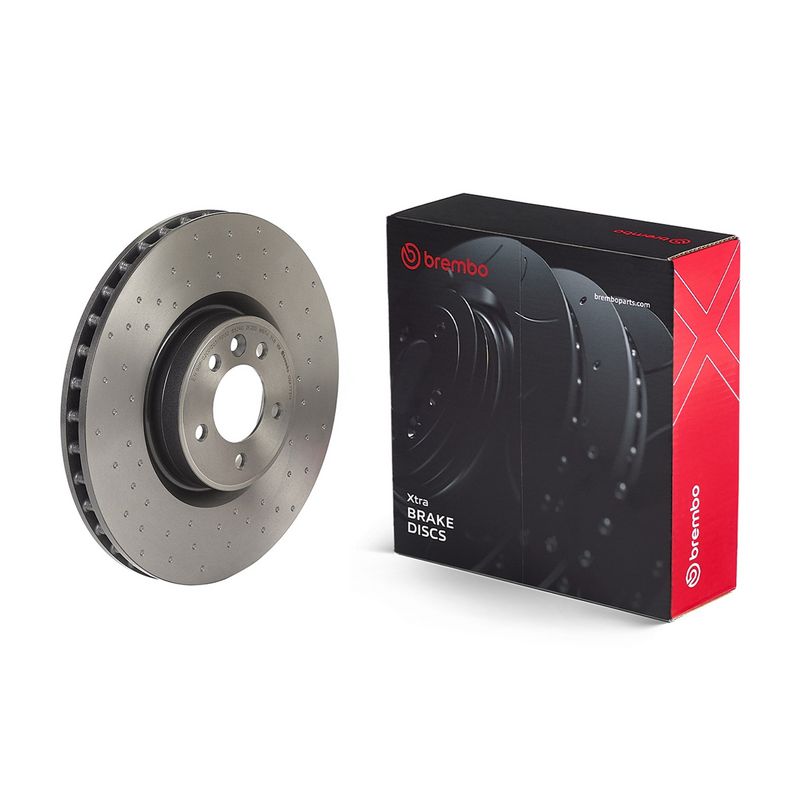

Brembo 09.A773.1X Brake Disc

5.0/5 65 reviews
SKU: 09.A773.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£246.43 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

LAND ROVER
RANGE ROVER SPORT I (L320)
Description Cylinder Capacity Horse Power Year
5.0 4x4 4999 CCM 506 HP 04/2009 - 03/2013
5.0 4x4 4999 CCM 510 HP 09/2009 - 03/2013
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
4.4 SDV8 4x4 4367 CCM 340 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 09/2021
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
4.4 SDV8 4x4 4367 CCM 313 HP 08/2013 - 09/2021
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 09/2021
5.0 SCV8 4x4 5000 CCM 525 HP 11/2017 - 09/2021
5.0 SCV8 4x4 5000 CCM 566 HP 11/2017 - 09/2021
3.0 SDV6 4x4 2993 CCM 275 HP 10/2018 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 4x4 4999 CCM 510 HP 04/2013 - 12/2018
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 SDV6 4x4 2993 CCM 292 HP 04/2013 - 12/2016
3.0 TDV6 4x4 2993 CCM 258 HP 04/2013 - 03/2022
3.0 TDV6 4x4 2993 CCM 211 HP 04/2013 - 12/2018
3.0 SDV6 4x4 2993 CCM 249 HP 04/2013 - 03/2022
4.4 SDV8 4x4 4367 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 03/2022
5.0 SCV8 4x4 4999 CCM 550 HP 01/2014 - 12/2018
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 12/2018
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 12/2017
2.0 SD4 4x4 1999 CCM 241 HP 08/2016 - 03/2022
2.0 Si4 4x4 1997 CCM 300 HP 10/2017 - 03/2022
5.0 SCV8 4x4 4999 CCM 525 HP 11/2017 - 03/2022

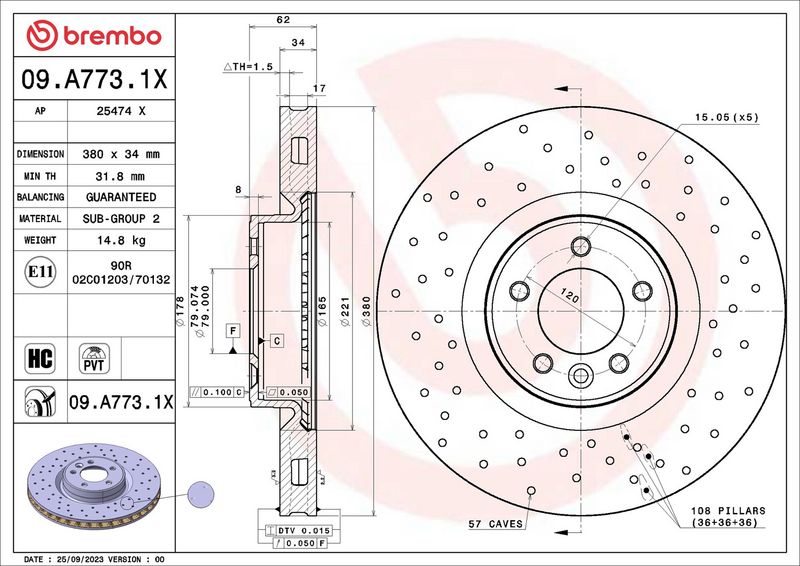

The Brembo 09.A773.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 34 mm brake disc thickness, 5 mounting holes, and 165 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 62
Centering Diameter [mm] : 165
Outer Diameter [mm] : 380
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 31.8
  • Vendor BREMBO
  • SKU 09.A773.1X
  • Barcode 8020584325506
  • LAND ROVER : LR016176 LR027106 LR189039
  • BLUE PRINT : ADJ134305
  • BOSCH : 0 986 479 B18
  • FEBI BILSTEIN : 108529
  • MINTEX : MDC2334C
  • TEXTAR : 92235603
  • TEXTAR : 92235605
  • TRW : DF6508S
