BREMBO

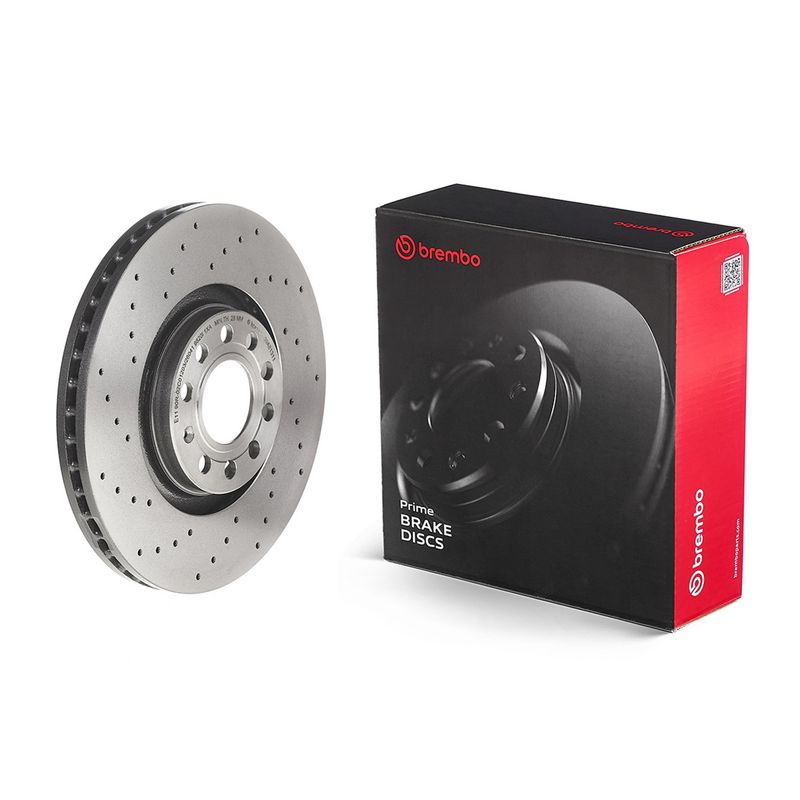

Brembo 09.A813.11 Brake Disc

SKU: 09.A813.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£70.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B7 (8EC)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 200 HP 11/2004 - 06/2008
2.0 TFSI quattro 1984 CCM 200 HP 11/2004 - 06/2008
3.2 FSI 3123 CCM 255 HP 01/2005 - 06/2008
3.2 FSI quattro 3123 CCM 255 HP 01/2005 - 06/2008
2.0 TDI 16V 1968 CCM 140 HP 11/2004 - 06/2008
3.0 TDI quattro 2967 CCM 204 HP 11/2004 - 06/2008
1.8 T 1781 CCM 163 HP 11/2004 - 06/2008
1.8 T quattro 1781 CCM 163 HP 11/2004 - 06/2008
2.0 1984 CCM 130 HP 11/2004 - 06/2008
2.5 TDI 2496 CCM 163 HP 11/2004 - 05/2006
2.0 TFSI 1984 CCM 220 HP 06/2005 - 06/2008
A4 B7 Avant (8ED)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 130 HP 11/2004 - 06/2008
1.8 T 1781 CCM 163 HP 11/2004 - 06/2008
1.8 T quattro 1781 CCM 163 HP 11/2004 - 06/2008
2.0 TFSI 1984 CCM 200 HP 11/2004 - 06/2008
2.0 TFSI quattro 1984 CCM 200 HP 11/2004 - 06/2008
3.2 FSI 3123 CCM 255 HP 01/2005 - 06/2008
3.2 FSI quattro 3123 CCM 255 HP 01/2005 - 06/2008
2.5 TDI 2496 CCM 163 HP 11/2004 - 05/2006
3.0 TDI quattro 2967 CCM 204 HP 11/2004 - 06/2008

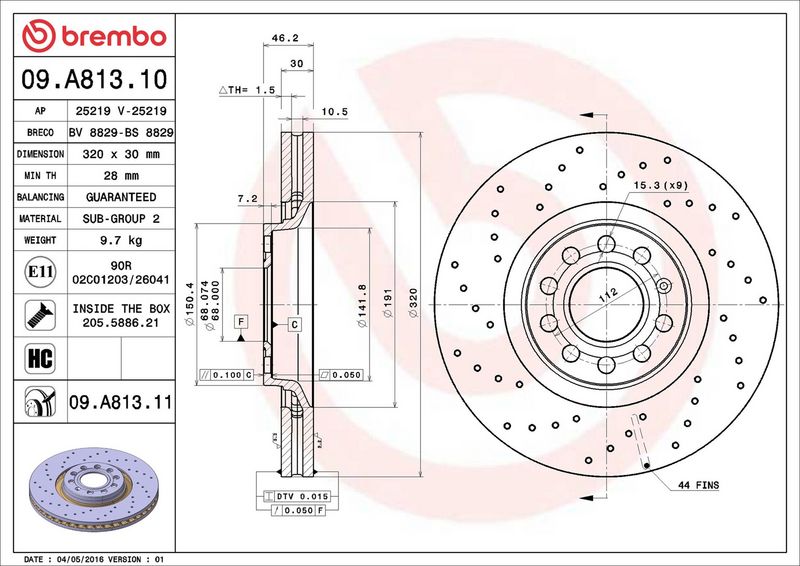

The Brembo 09.A813.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 46
Centering Diameter [mm] : 68
Outer Diameter [mm] : 320
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.A813.11
  • Barcode 8020584027745
  • AUDI : 8E0615301AE
  • APEC : DSK2971
  • BLUE PRINT : ADV184336
  • BOSCH : 0 986 479 258
  • DELPHI : BG4086
  • DELPHI : BG9360C
  • FEBI BILSTEIN : 44121
  • FTE : 9071356
  • FTE : 9081292
  • MEYLE : 183 521 1106/PD
  • TEXTAR : 92158305
  • TRW : DF6189S
  • VALEO : 673381
