BREMBO

Brembo 09.A818.11 Brake Disc

SKU: 09.A818.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£118.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
S-CLASS (W221, V221)
Description Cylinder Capacity Horse Power Year
S 400 Hybrid (221.095, 221.195) 3498 CCM 279 HP 01/2009 - 12/2013
S 250 CDI (221.003, 221.103) 2143 CCM 204 HP 01/2011 - 12/2013
S 350 BlueTec (221.026, 221.126) 2987 CCM 258 HP 04/2011 - 12/2013
S 350 BlueTEC 4-matic (221.083, 221.183) 2987 CCM 258 HP 04/2011 - 12/2013
S 350 CGI (221.057, 221.157) 3498 CCM 306 HP 04/2011 - 12/2013
S 350 CGI 4-matic (221.082, 221.182) 3498 CCM 306 HP 04/2011 - 12/2013
S 500 CGI (221.073, 221.173) 4663 CCM 435 HP 04/2011 - 12/2013
S 500 CGI 4-matic (221.094, 221.194) 4663 CCM 435 HP 03/2011 - 12/2013
S 350 CDI (221.022, 221.122) 2987 CCM 235 HP 06/2009 - 12/2013
S 350 (221.056, 221.156) 3498 CCM 272 HP 10/2005 - 12/2013
S 500 (221.071, 221.171) 5461 CCM 388 HP 10/2005 - 12/2013
S 320 CDI (221.022, 221.122) 2987 CCM 235 HP 12/2005 - 06/2009
S-CLASS Coupe (C216)
Description Cylinder Capacity Horse Power Year
CL 500 (216.373) 4663 CCM 435 HP 02/2011 - 12/2013
CL 500 4-matic (216.394) 4663 CCM 435 HP 02/2011 - 12/2013
CL 500 (216.371) 5461 CCM 388 HP 06/2006 - 12/2013
CL 500 4-matic (216.386) 5461 CCM 388 HP 02/2008 - 12/2013
SL (R230)
Description Cylinder Capacity Horse Power Year
500 (230.471) 5461 CCM 388 HP 03/2006 - 01/2012

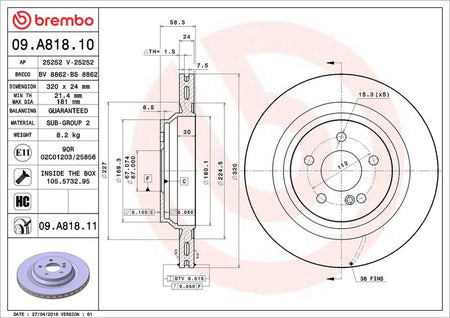

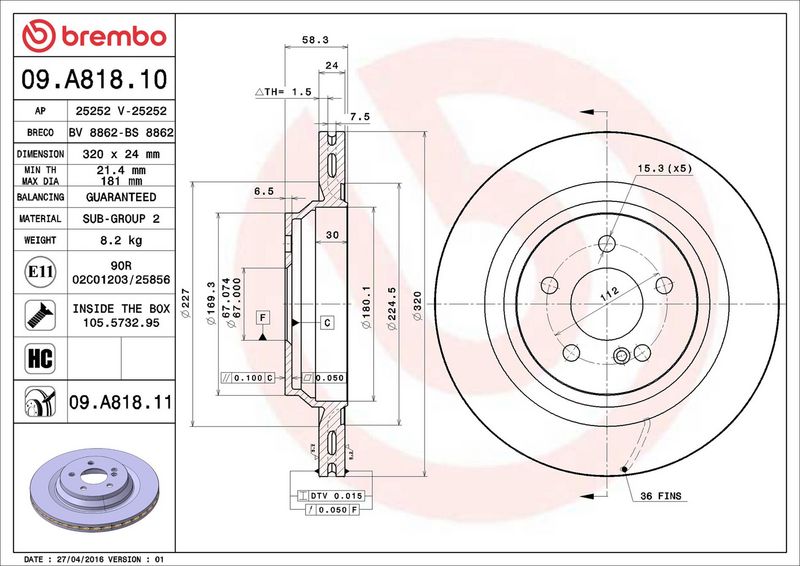

The Brembo 09.A818.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 24 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 59
Centering Diameter [mm] : 67
Outer Diameter [mm] : 320
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 21.4
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 09.A818.11
  • Barcode 8020584030301
  • MERCEDES-BENZ : 2214230412 2214231012 A2214230412 A2214231012
  • BRABUS : A2214230412 A2214231012
  • BLUE PRINT : ADU174380
  • BORG & BECK : BBD4677
  • BOSCH : 0 986 479 629
  • DELPHI : BG4144
  • FEBI BILSTEIN : 26405
  • FTE : 9071115
  • HELLA : 8DD 355 128-751
  • MEYLE : 015 523 0014/PD
  • MINTEX : MDC2291
  • SKF : VKBD 90675 V1
  • TEXTAR : 92160703
  • TEXTAR : 92160705
  • TRW : DF4916S
  • VALEO : 197747
  • VALEO : 673466
