BREMBO

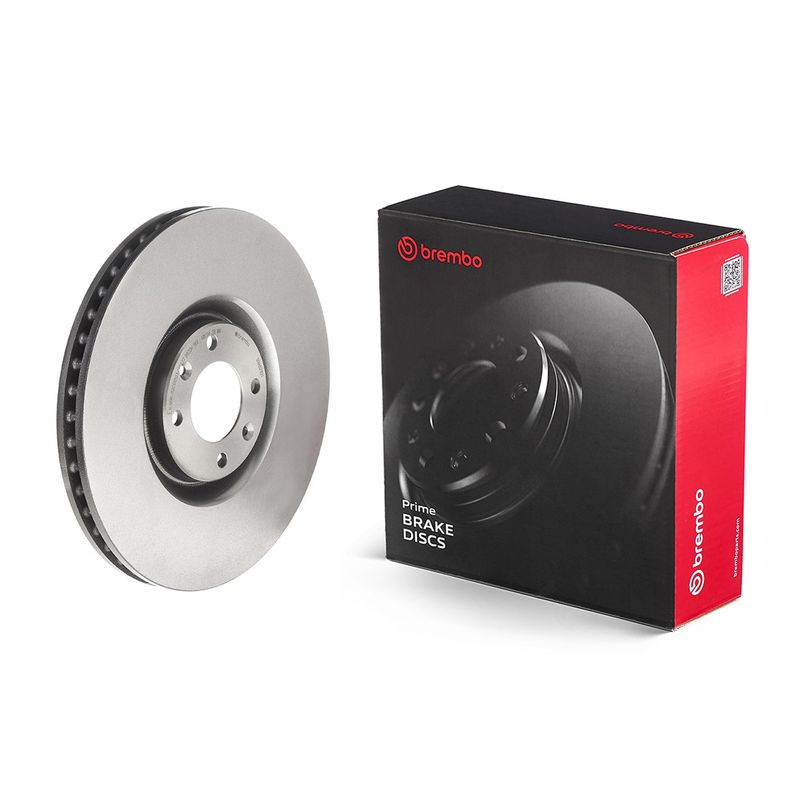

Brembo 09.A829.21 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.A829.21

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£78.73 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CITROËN

DS4 (NX_)

Description	Cylinder Capacity	Horse Power	Year
1.6 THP 200	1598 CCM	200 HP	04/2011 - 07/2015
2.0 HDi 165	1997 CCM	163 HP	04/2011 - 07/2015
2.0 HDi / BlueHDi 135	1997 CCM	136 HP	09/2011 - 07/2015
2.0 BlueHDi 180	1997 CCM	180 HP	07/2014 - 07/2015

DS5

Description	Cylinder Capacity	Horse Power	Year
1.6 THP 155	1598 CCM	156 HP	11/2011 - 07/2015
1.6 THP 200	1598 CCM	200 HP	11/2011 - 07/2015
1.6 HDi 110	1560 CCM	112 HP	11/2011 - 07/2015
2.0 HDi 165	1997 CCM	163 HP	11/2011 - 07/2015
2.0 BlueHDi 180	1997 CCM	180 HP	08/2013 - 07/2015
1.6 THP 165	1598 CCM	165 HP	01/2012 - 07/2015
2.0 HDi 200 Hybrid4 All-wheel Drive	1997 CCM	200 HP	12/2011 - 07/2015
1.6 HDi 115	1560 CCM	114 HP	06/2012 - 07/2015
2.0 HDi 135	1997 CCM	136 HP	11/2011 - 07/2015
1.6 HDi	1560 CCM	115 HP	11/2013 - 07/2015
1.6 THP 165 Hybrid	1598 CCM	165 HP	06/2012 - 07/2015
1.6 BlueHDi 120	1560 CCM	120 HP	07/2014 - 07/2015
2.0 BlueHDi 150	1997 CCM	150 HP	07/2014 - 07/2015

PEUGEOT

308 I (4A_, 4C_)

Description	Cylinder Capacity	Horse Power	Year
1.6 GTi	1598 CCM	200 HP	07/2010 - 10/2014

308 CC (4B_)

Description	Cylinder Capacity	Horse Power	Year
1.6 THP	1598 CCM	200 HP	10/2010 - 12/2014

DS (CAPSA)

DS 5

Description	Cylinder Capacity	Horse Power	Year
1.6 THP 160	1598 CCM	163 HP	09/2013 - 12/2017

DS 5 (KF_)

Description	Cylinder Capacity	Horse Power	Year
1.6 THP 210	1598 CCM	210 HP	04/2015 - 12/2018
2.0 BlueHDi 150	1997 CCM	150 HP	04/2015 - 12/2018
2.0 BlueHDi 180	1997 CCM	180 HP	04/2015 - 12/2018
1.6 BlueHDi 120	1560 CCM	120 HP	06/2015 - 12/2018
1.6 THP 165 (KF5GZT)	1598 CCM	165 HP	07/2015 - 12/2018
1.6 BlueHDi 115	1560 CCM	116 HP	06/2015 - 12/2018
Hybrid4	1997 CCM	200 HP	04/2015 - 12/2018

DS 4 / DS 4 CROSSBACK (NX_)

Description	Cylinder Capacity	Horse Power	Year
1.6 THP 210	1598 CCM	210 HP	07/2015 - 12/2018
2.0 BlueHDi 180	1997 CCM	180 HP	07/2015 - 12/2018

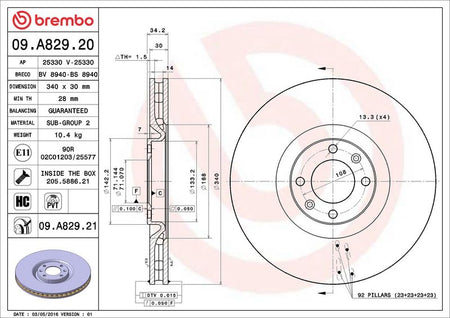

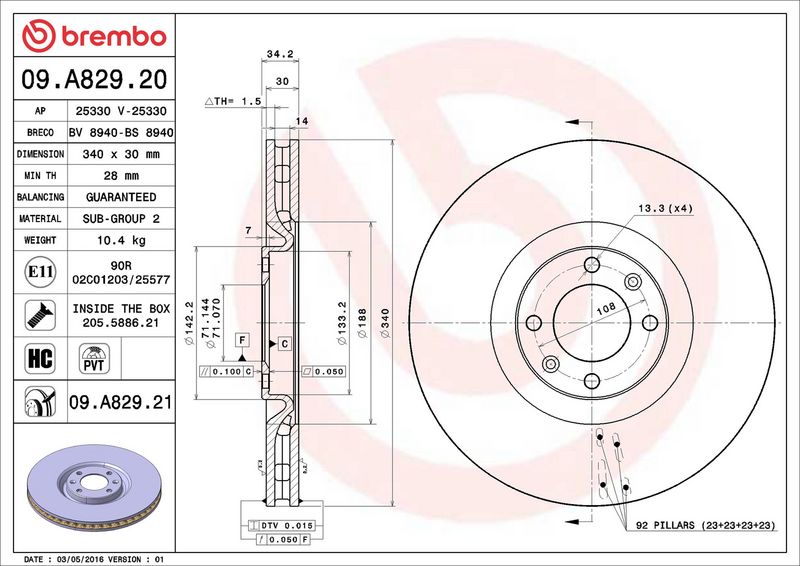

The Brembo 09.A829.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 4 mounting holes, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 30

Number of Holes : 4

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 34

Centering Diameter [mm] : 71

Outer Diameter [mm] : 340

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 28

Tightening Torque [Nm] : 100
