Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

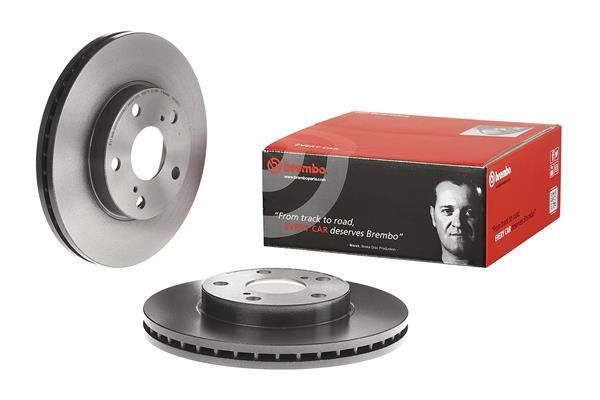

Brembo 09.A865.11 Brake Disc - 1
Brembo 09.A865.11 Brake Disc - 2
Brembo 09.A865.11 Brake Disc - 1
Brembo 09.A865.11 Brake Disc - 2
BREMBO

Brembo 09.A865.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.A865.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£83.85 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE152_, ZRE152) 1798 CCM 144 HP 02/2009 - 09/2012
1.8 4WD (ZRE154_, ZRE154N) 1798 CCM 136 HP 10/2006 - 10/2009
1.4 D-4D (NDE150_, NDE150R) 1364 CCM 90 HP 03/2007 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 124 HP 03/2007 - 09/2012
1.4 (ZZE150_, ZZE150R) 1398 CCM 97 HP 03/2007 - 09/2012
1.8 (ZRE152) 1798 CCM 136 HP 10/2006 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 101 HP 05/2009 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 132 HP 05/2009 - 09/2012
1.8 (ZRE152_, ZRE152) 1798 CCM 147 HP 02/2009 - 09/2012
1.8 Hybrid (ZWE150_, ZWE150R) 1798 CCM 136 HP 09/2010 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 99 HP 01/2010 - 09/2012
AURIS Hatchback Van (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE150) 1364 CCM 90 HP 03/2007 - 09/2012
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE150) 1364 CCM 90 HP 10/2006 - 07/2014

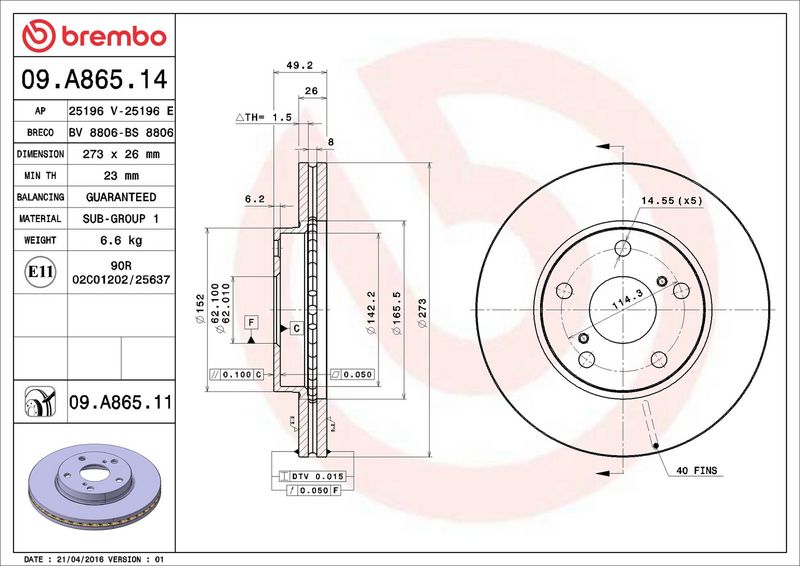

The Brembo 09.A865.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 273
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A865.11
  • Barcode 8020584034200
  • TOYOTA : 4351202180 4351202200 4351212690 43512YZZAC
  • BLUE PRINT : ADT343279
  • BORG & BECK : BBD4682
  • BOSCH : 0 986 479 R45
  • DELPHI : BG4234
  • DELPHI : BG4234C
  • FEBI BILSTEIN : 108453
  • FTE : 9072092
  • FTE : 9082217
  • HELLA : 8DD 355 118-951
  • MEYLE : 30-15 521 0063
  • MINTEX : MDC2017C
  • National : NBD1569
  • SKF : VKBD 80494 V2
  • TEXTAR : 92163703
  • TRW : DF4808
  • VALEO : 197185
  • VALEO : 672755
