BREMBO

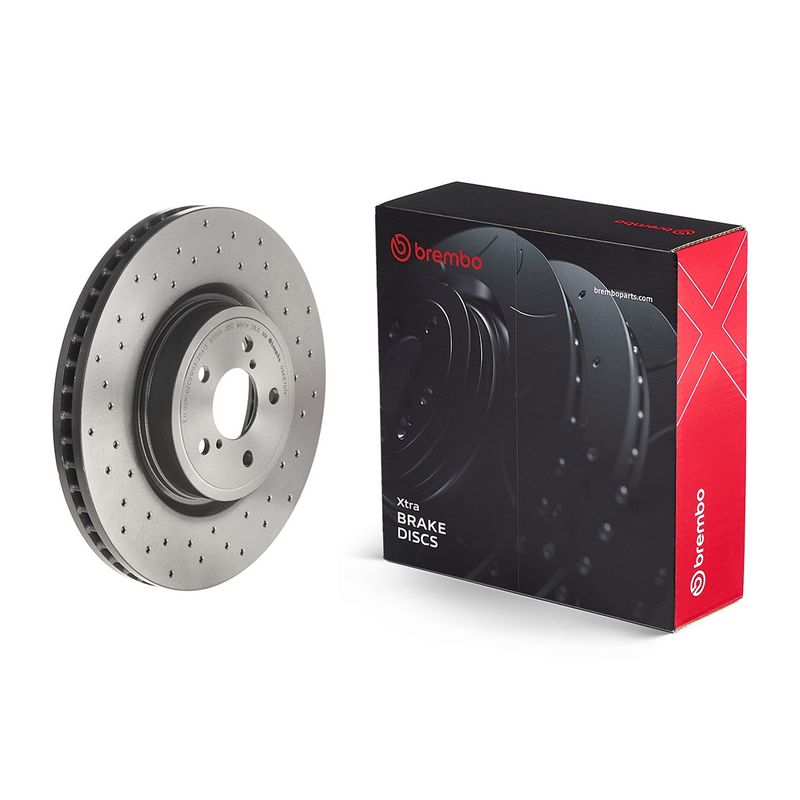

Brembo 09.A870.1X Brake Disc

SKU: 09.A870.1X
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£92.46 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
FORESTER (SJ_)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (SJD) 1998 CCM 147 HP From 03/2013
2.0 XT AWD (SJG) 1998 CCM 241 HP From 03/2013
2.5 AWD (SJ9) 2498 CCM 171 HP From 11/2012
LEGACY IV (BL)
Description Cylinder Capacity Horse Power Year
3.0 R AWD (BLE, B13) 3000 CCM 245 HP 09/2003 - 08/2009
2.0 AWD (BL5) 1994 CCM 165 HP 06/2005 - 04/2009
LEGACY IV Estate (BP)
Description Cylinder Capacity Horse Power Year
3.0 R AWD (BPE) 3000 CCM 245 HP 09/2003 - 08/2009
2.0 AWD (BP5) 1994 CCM 165 HP 06/2005 - 04/2009
LEGACY V Estate (BR)
Description Cylinder Capacity Horse Power Year
2.5 GT AWD (BR9) 2457 CCM 265 HP 07/2010 - 12/2014
LEGACY V (BM)
Description Cylinder Capacity Horse Power Year
2.5 GT AWD (BM9) 2457 CCM 265 HP 07/2010 - 12/2014
OUTBACK (BR)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (BRD) 1998 CCM 150 HP From 09/2009
2.5 i AWD (BR9) 2457 CCM 167 HP From 09/2009
3.6 R AWD (BRF) 3630 CCM 260 HP From 09/2009
2.5 i AWD (BRM) 2498 CCM 173 HP From 01/2013

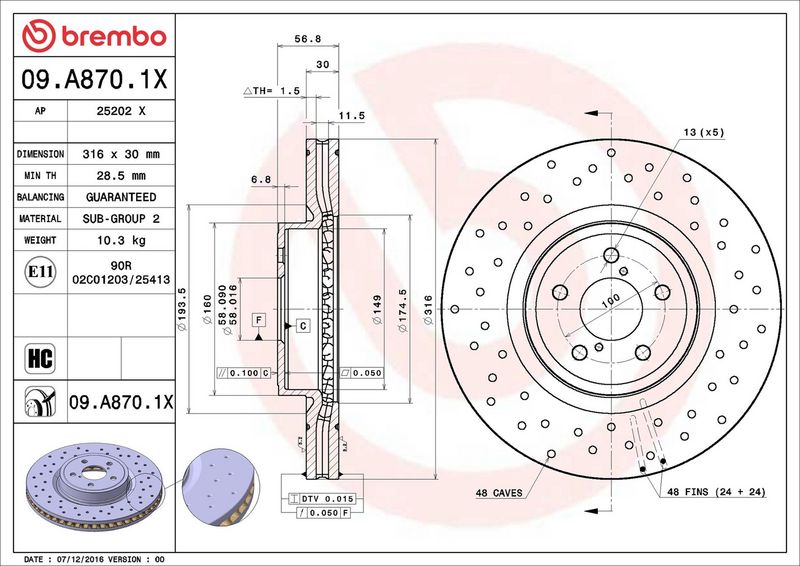

The Brembo 09.A870.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 57
Centering Diameter [mm] : 58
Outer Diameter [mm] : 316
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28.5
Tightening Torque [Nm] : 100
  • Vendor BREMBO
  • SKU 09.A870.1X
  • Barcode 8020584225745
  • SUBARU : 26300AG000 26300AG001 26300AG02A
  • BLUE PRINT : ADS74335
  • BOSCH : 0 986 479 A81
  • FEBI BILSTEIN : 108520
  • FTE : 9071344
  • HELLA : 8DD 355 117-921
  • MEYLE : 34-15 521 0009/PD
  • MINTEX : MDC2339
  • TEXTAR : 92236503
  • TRW : DF6923S
  • VALEO : 673671
