Brembo 09.A913.11 Brake Disc - 1
Brembo 09.A913.11 Brake Disc - 2
Brembo 09.A913.11 Brake Disc - 1
Brembo 09.A913.11 Brake Disc - 2
BREMBO

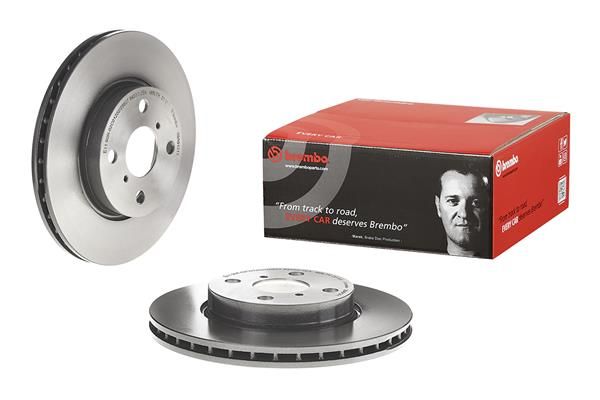

Brembo 09.A913.11 Brake Disc

SKU: 09.A913.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£81.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
CHARADE VIII
Description Cylinder Capacity Horse Power Year
1.33 16V 1329 CCM 99 HP From 05/2011
TOYOTA
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NSP130) 1329 CCM 99 HP 10/2012 - 03/2017
1.0 VVTi (KSP130) 998 CCM 69 HP 07/2014 - 06/2020
1.4 D4d (NLP130) 1364 CCM 90 HP 07/2014 - 05/2018
1.0 VVTi (KSP130) 998 CCM 72 HP 06/2018 - 06/2020
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.3 4WD (NCP95) 1298 CCM 87 HP 01/2005 - 11/2010
1.3 VVT-i (NCP90_, NCP90R) 1299 CCM 86 HP 11/2005 - 12/2012
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 99 HP 07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R) 1364 CCM 90 HP 08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R) 1298 CCM 87 HP 08/2005 - 11/2010
1.5 (NCP91_, NCP91R) 1497 CCM 109 HP 11/2005 - 12/2014
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 100 HP 11/2008 - 12/2011
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.0 (KSP130_, KSP130) 998 CCM 69 HP 12/2010 - 06/2020
1.4 D (NLP130_, NLP130) 1364 CCM 90 HP 09/2011 - 05/2018
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017
1.5 (NSP131_) 1496 CCM 112 HP 03/2017 - 06/2020
1.0 (KSP130) 998 CCM 72 HP 06/2018 - 06/2020

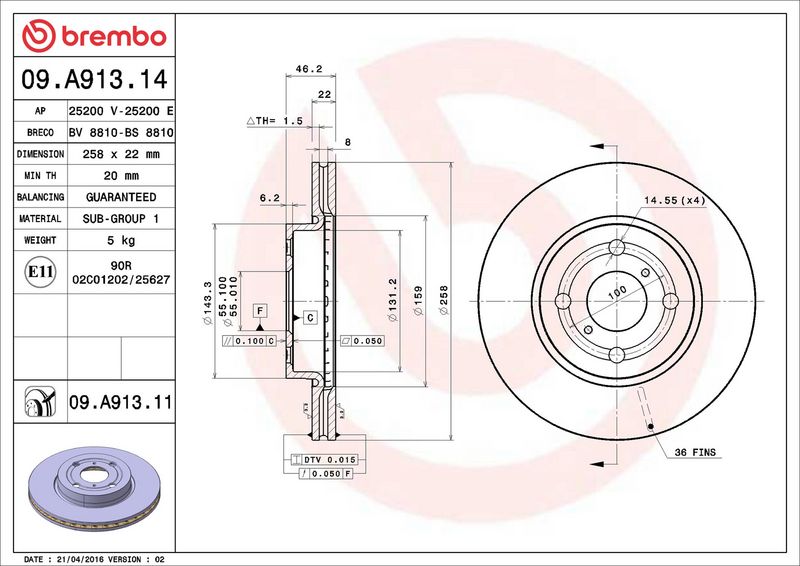

The Brembo 09.A913.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Height [mm] : 46
Centering Diameter [mm] : 55
Outer Diameter [mm] : 258
Surface : Coated
Minimum thickness [mm] : 20
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.A913.11
  • Barcode 8020584225110
  • DAIHATSU : 435120D060 435120D060000
  • TOYOTA : 435120D060 435120D260
  • TOYOTA (FAW) : 435120D120
  • APEC : DSK2516
  • APEC : SDK6274
  • BLUE PRINT : ADT343205
  • BORG & BECK : BBD4604
  • BOSCH : 0 986 479 363
  • BOSCH : 0 986 479 C06
  • DELPHI : BG4116C
  • Fahren : FBD6274
  • FEBI BILSTEIN : 108380
  • FTE : 9072544
  • HELLA : 8DD 355 114-311
  • MEYLE : 30-15 521 0060
  • MINTEX : MDC1832C
  • NAPA : NBD5302
  • SKF : VKBD 80080 V2
  • TEXTAR : 92164203
  • TRW : DF4842
  • VALEO : 197184
  • VALEO : 672932
