BREMBO

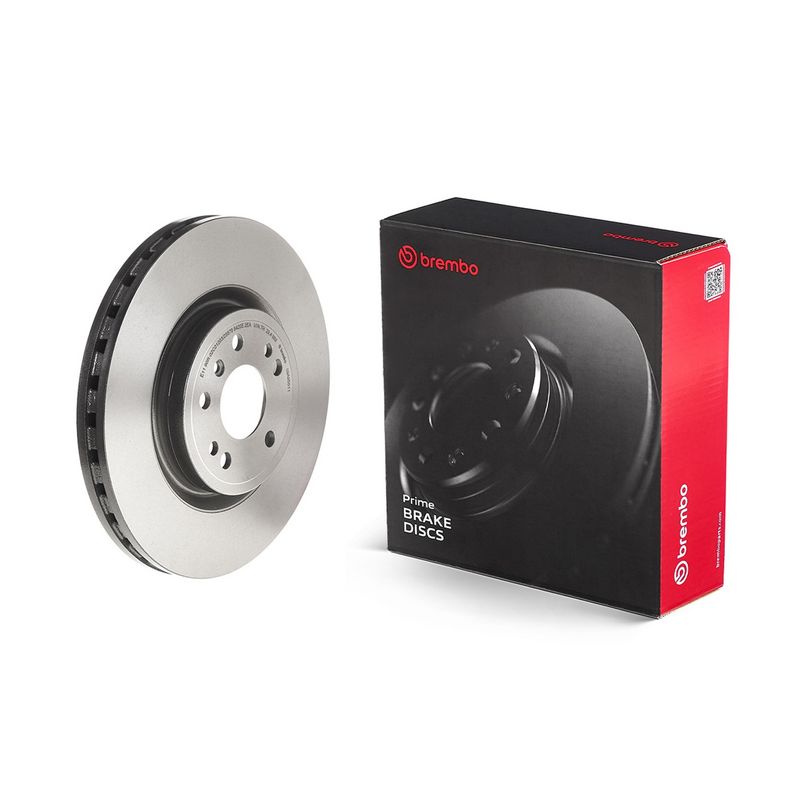

Brembo 09.A956.11 Brake Disc

SKU: 09.A956.11
Your selected vehicle
Out of stock
Out of Stock
£73.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (292.323, 292.324) 2987 CCM 258 HP 03/2015 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 249 HP 04/2015 - 10/2018
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2143 CCM 204 HP 06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023) 2987 CCM 258 HP 06/2011 - 02/2015
ML 350 4-matic (166.057) 3498 CCM 306 HP 06/2011 - 12/2015

The Brembo 09.A956.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

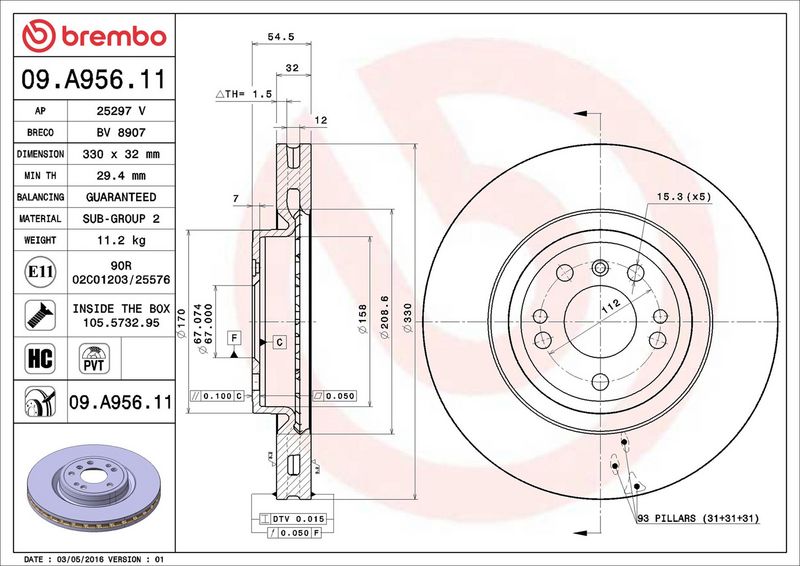

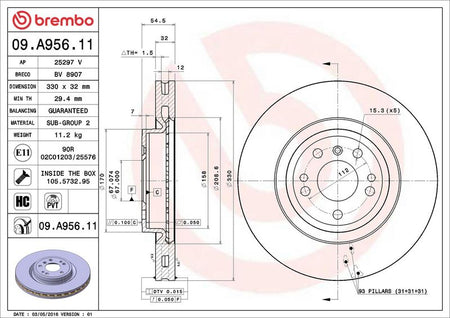

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 55
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 29.4
  • Vendor BREMBO
  • SKU 09.A956.11
  • Barcode 8020584210734
  • MERCEDES-BENZ : 1664210012 1664210612 1664211300 A1664210012 A1664210612 A1664211300
  • BRABUS : A1664210612 A1664211300
  • APEC : DSK3196
  • BLUE PRINT : ADU174357
  • BORG & BECK : BBD6101S
  • BOSCH : 0 986 479 D08
  • DELPHI : BG9148C
  • FEBI BILSTEIN : 24743
  • FTE : 9081345
  • HELLA : 8DD 355 126-301
  • MEYLE : 083 521 0026/PD
  • MINTEX : MDC2780C
  • National : NBD2307
  • SKF : VKBD 81183 V1
  • TEXTAR : 92260405
  • TRW : DF6833S
  • VALEO : 197744
  • VALEO : 673337
