Brembo 09.A959.21 Brake Disc - 1
Brembo 09.A959.21 Brake Disc - 2
Brembo 09.A959.21 Brake Disc - 1
Brembo 09.A959.21 Brake Disc - 2
BREMBO

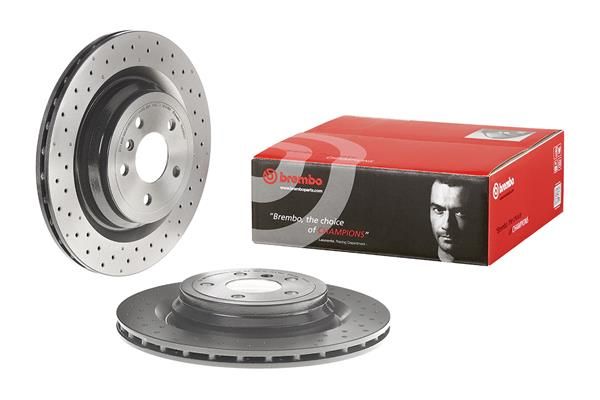

Brembo 09.A959.21 Brake Disc

SKU: 09.A959.21
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£125.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (292.323, 292.324) 2987 CCM 258 HP 03/2015 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2143 CCM 204 HP 06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023) 2987 CCM 258 HP 06/2011 - 02/2015
ML 350 4-matic (166.057) 3498 CCM 306 HP 06/2011 - 12/2015
ML 400 4-matic (166.056) 2996 CCM 333 HP 08/2013 - 02/2015

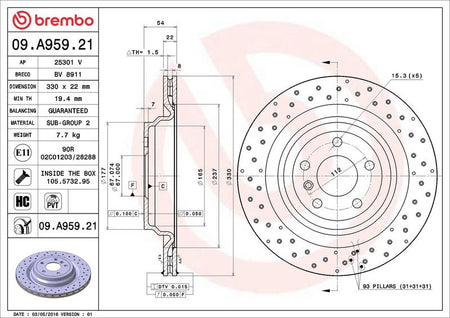

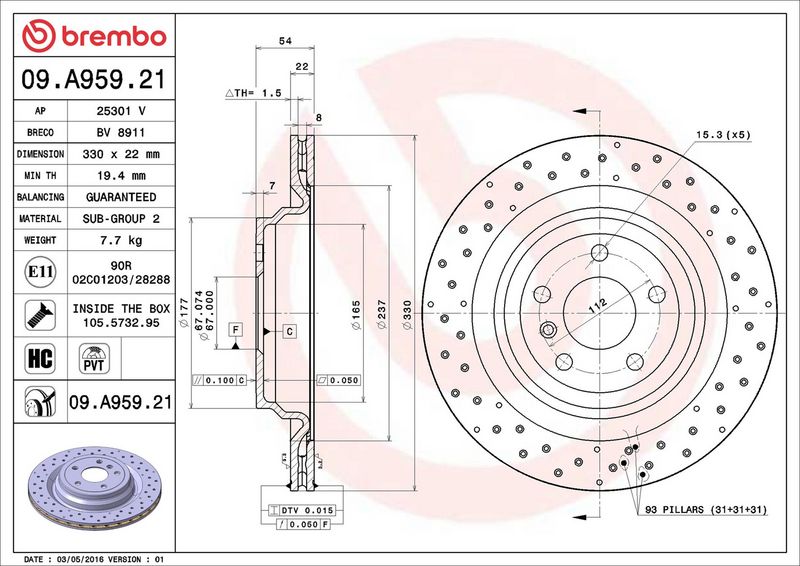

The Brembo 09.A959.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 54
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
  • Vendor BREMBO
  • SKU 09.A959.21
  • Barcode 8020584039243
  • MERCEDES-BENZ : 1664230412 A1664230412
  • APEC : DSK3194
  • BLUE PRINT : ADU174386
  • BORG & BECK : BBD5436
  • BOSCH : 0 986 479 D11
  • DELPHI : BG4934C
  • FEBI BILSTEIN : 106607
  • HELLA : 8DD 355 122-551
  • MEYLE : 015 523 0010/PD
  • MINTEX : MDC2671
  • National : NBD2310
  • TEXTAR : 92254505
