BREMBO

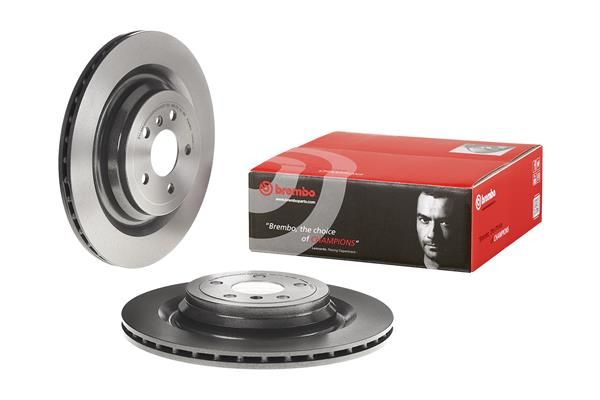

Brembo 09.A961.11 Brake Disc

SKU: 09.A961.11
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£128.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GL-CLASS (X166)
Description Cylinder Capacity Horse Power Year
GL 400 4-matic (166.856) 2996 CCM 333 HP 08/2013 - 10/2015
GL 350 CDI / BlueTec 4-matic (166.823, 166.824) 2987 CCM 258 HP 07/2012 - 10/2015
GL 500 4-matic (166.873) 4663 CCM 435 HP 07/2012 - 10/2015
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
400 4-matic (292.356) 2996 CCM 333 HP 03/2015 - 10/2019
450 AMG 4-matic (292.364) 2996 CCM 367 HP 03/2015 - 10/2019
500 4-matic (292.373) 4663 CCM 456 HP 10/2015 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 367 HP 05/2016 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 390 HP 06/2017 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
500 4-matic (166.073) 4663 CCM 435 HP 04/2015 - 10/2018
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
500 e 4-matic (166.063) 2996 CCM 442 HP 04/2015 - 10/2018
AMG 63 4-matic (166.074) 5461 CCM 557 HP 04/2015 - 10/2018
AMG 63 S 4-matic (166.075) 5461 CCM 585 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
450 AMG 4-matic (166.064) 2996 CCM 367 HP 10/2015 - 10/2018
500 4-matic (166.073) 4663 CCM 456 HP 10/2015 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 367 HP 05/2016 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 390 HP 06/2017 - 10/2018
350 d 4-matic (166.024) 2987 CCM 249 HP 04/2015 - 10/2018
GLS (X166)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (166.824) 2987 CCM 258 HP 11/2015 - 04/2019
400 4-matic (166.856) 2996 CCM 333 HP 11/2015 - 04/2019
500 4-matic (166.873) 4663 CCM 456 HP 11/2015 - 04/2019
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 500 4-matic (166.073) 4663 CCM 408 HP 02/2012 - 02/2015
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2143 CCM 204 HP 06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023) 2987 CCM 258 HP 06/2011 - 02/2015
ML 350 4-matic (166.057) 3498 CCM 306 HP 06/2011 - 12/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 558 HP 11/2011 - 02/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 525 HP 11/2011 - 02/2015
ML 400 4-matic (166.056) 2996 CCM 333 HP 08/2013 - 02/2015

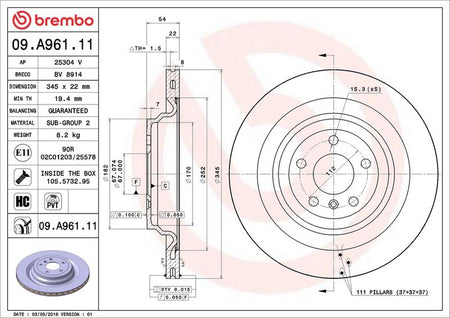

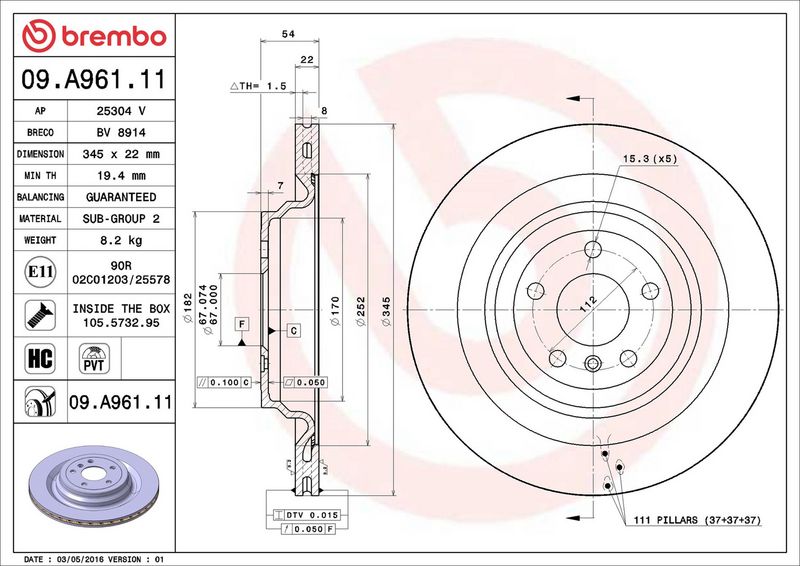

The Brembo 09.A961.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 54
Centering Diameter [mm] : 67
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
  • Vendor BREMBO
  • SKU 09.A961.11
  • Barcode 8020584210956
  • MERCEDES-BENZ : 1664230212 1664230700 A1664230212 A1664230700
  • BRABUS : A1664230212 A1664230700
  • APEC : DSK3313
  • BLUE PRINT : ADBP430037
  • BORG & BECK : BBD5495
  • BOSCH : 0 986 479 D61
  • DELPHI : BG4699C
  • FEBI BILSTEIN : 171491
  • FTE : 9081348
  • HELLA : 8DD 355 126-311
  • MEYLE : 015 523 0008/PD
  • MINTEX : MDC2781C
  • National : NBD2137
  • SKF : VKBD 91080 V1
  • TEXTAR : 92284003
  • TRW : DF6365S
  • VALEO : 673269
