BREMBO

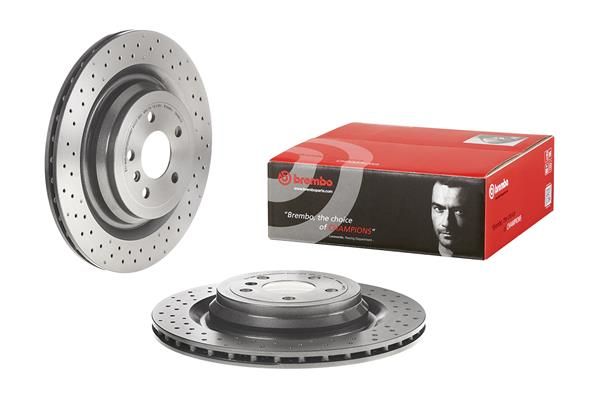

Brembo 09.A961.21 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.A961.21

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£130.31 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
GL-CLASS (X166)
Description Cylinder Capacity Horse Power Year
GL 400 4-matic (166.856) 2996 CCM 333 HP 08/2013 - 10/2015
GL 350 CDI / BlueTec 4-matic (166.823, 166.824) 2987 CCM 258 HP 07/2012 - 10/2015
GL 500 4-matic (166.873) 4663 CCM 435 HP 07/2012 - 10/2015
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
400 4-matic (292.356) 2996 CCM 333 HP 03/2015 - 10/2019
450 AMG 4-matic (292.364) 2996 CCM 367 HP 03/2015 - 10/2019
500 4-matic (292.373) 4663 CCM 456 HP 10/2015 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 367 HP 05/2016 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
500 4-matic (166.073) 4663 CCM 435 HP 04/2015 - 10/2018
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
500 e 4-matic (166.063) 2996 CCM 442 HP 04/2015 - 10/2018
AMG 63 4-matic (166.074) 5461 CCM 557 HP 04/2015 - 10/2018
AMG 63 S 4-matic (166.075) 5461 CCM 585 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
450 AMG 4-matic (166.064) 2996 CCM 367 HP 10/2015 - 10/2018
500 4-matic (166.073) 4663 CCM 456 HP 10/2015 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 367 HP 05/2016 - 10/2018
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 500 4-matic (166.073) 4663 CCM 408 HP 02/2012 - 02/2015
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2143 CCM 204 HP 06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023) 2987 CCM 258 HP 06/2011 - 02/2015
ML 350 4-matic (166.057) 3498 CCM 306 HP 06/2011 - 12/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 558 HP 11/2011 - 02/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 525 HP 11/2011 - 02/2015

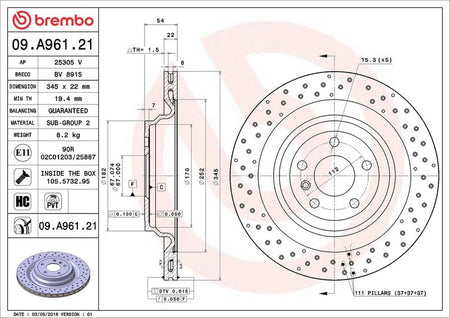

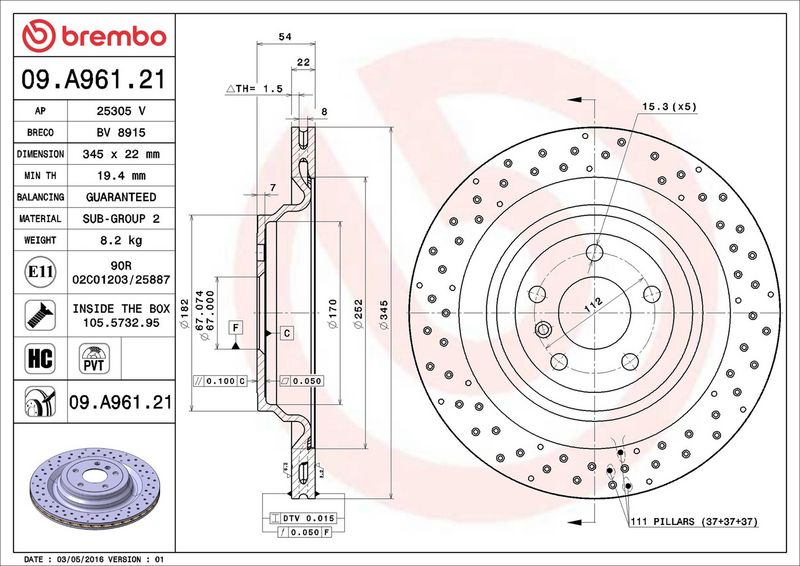

The Brembo 09.A961.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 54
Centering Diameter [mm] : 67
Outer Diameter [mm] : 345
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
  • Vendor BREMBO
  • SKU 09.A961.21
  • Barcode 8020584039267
  • MERCEDES-BENZ : 1664230312 A1664230312
  • BRABUS : A1664230312
  • APEC : DSK3021
  • BLUE PRINT : ADU174385
  • BORG & BECK : BBD6139S
  • BOSCH : 0 986 479 D62
  • DELPHI : BG4699C
  • DELPHI : BG5207C
  • FEBI BILSTEIN : 106606
  • FTE : 9081347
  • HELLA : 8DD 355 126-281
  • MINTEX : MDC2778C
  • National : NBD2309
  • TEXTAR : 92283703
  • TRW : DF6849S
  • VALEO : 673428
