Brembo 09.B025.11 Brake Disc - 1
Brembo 09.B025.11 Brake Disc - 2
Brembo 09.B025.11 Brake Disc - 1
Brembo 09.B025.11 Brake Disc - 2
BREMBO

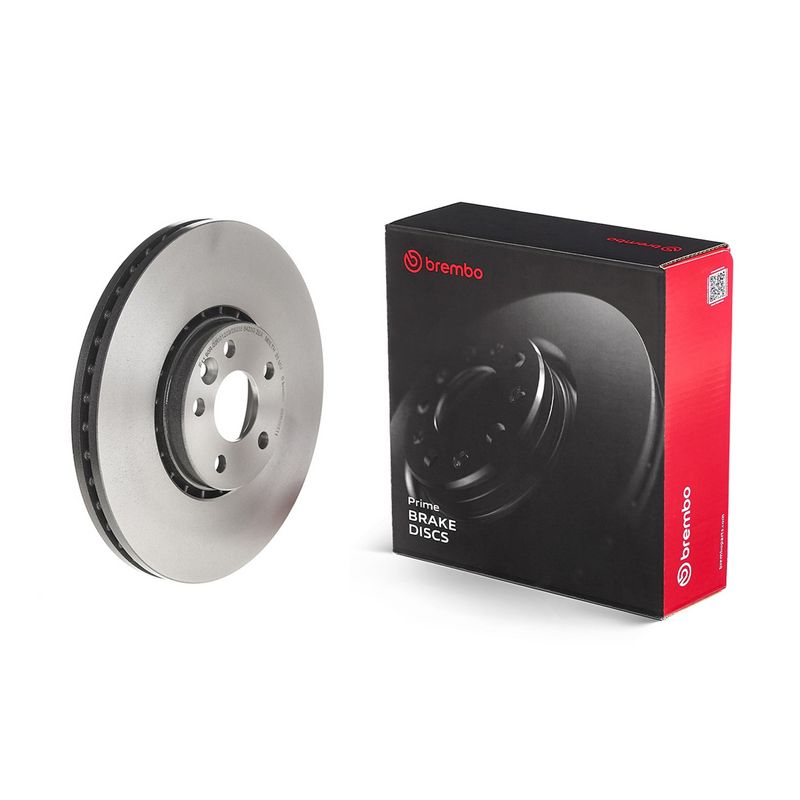

Brembo 09.B025.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B025.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£83.27 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 06/2011 - 02/2017
T6 AWD 2953 CCM 286 HP 05/2008 - 12/2010
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 185 HP 05/2008 - 12/2009
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
3.2 AWD 3192 CCM 238 HP 07/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D3 1984 CCM 136 HP 04/2012 - 12/2015
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 136 HP 09/2013 - 12/2015
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017

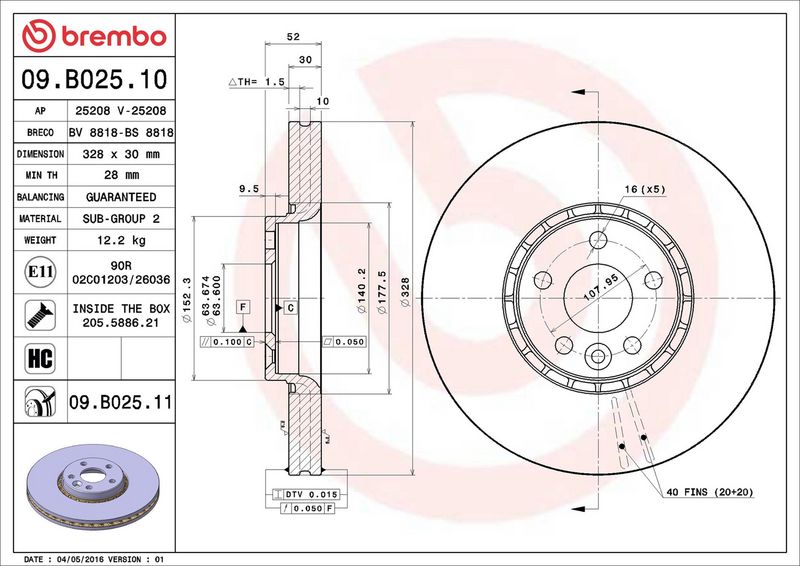

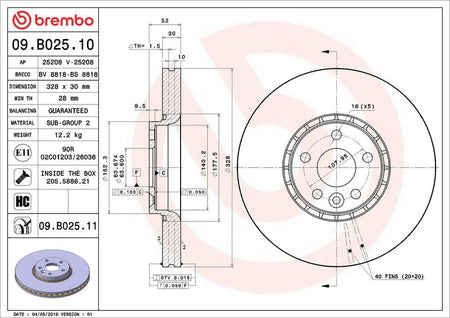

The Brembo 09.B025.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 328
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 09.B025.11
  • Barcode 8020584025925
  • VOLVO : 31277342 312773420 31381986 313819860 31410568 31471034 314710340
  • VOLVO ASIA : 31277342 31410568 31471034
  • BLUE PRINT : ADF124302
  • BORG & BECK : BBD5903S
  • BOSCH : 0 986 479 621
  • DELPHI : BG9085
  • FEBI BILSTEIN : 39288
  • FTE : 9071256
  • HELLA : 8DD 355 116-181
  • MEYLE : 515 521 0035/PD
  • MINTEX : MDC2198
  • SKF : VKBD 80128 V1
  • TEXTAR : 92196303
  • TEXTAR : 92196305
  • TRW : DF6472S
  • VALEO : 197772
  • VALEO : 673125
