BREMBO

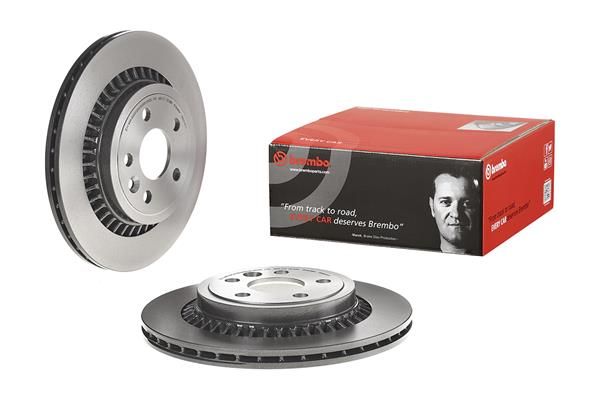

Brembo 09.B026.11 Brake Disc

SKU: 09.B026.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£90.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 06/2011 - 02/2017
T6 AWD 2953 CCM 286 HP 05/2008 - 12/2010
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 185 HP 05/2008 - 12/2009
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
3.2 AWD 3192 CCM 238 HP 07/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D3 1984 CCM 136 HP 04/2012 - 12/2015
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 136 HP 09/2013 - 12/2015
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017

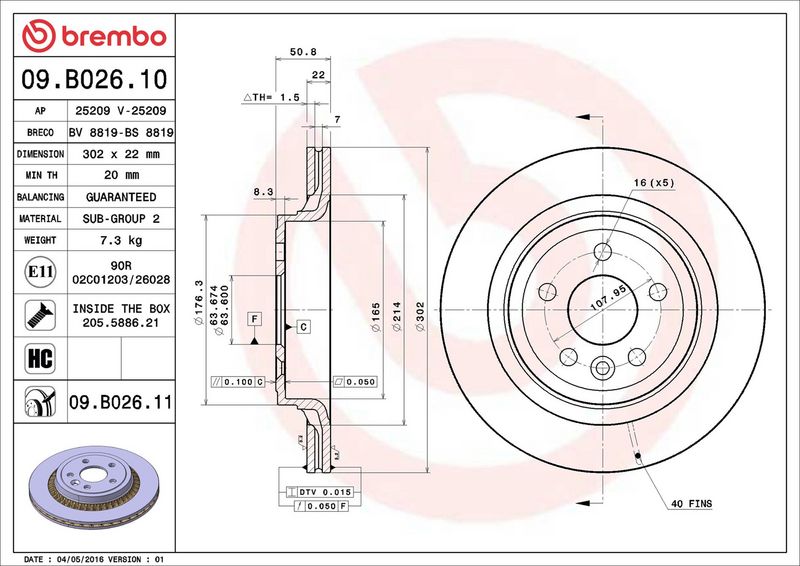

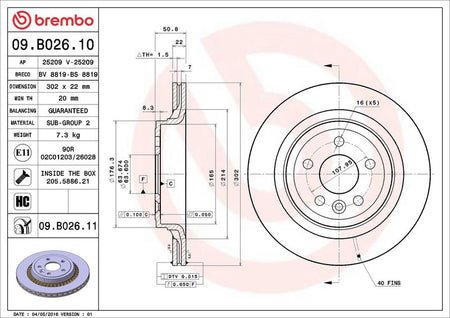

The Brembo 09.B026.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 51
Centering Diameter [mm] : 64
Outer Diameter [mm] : 302
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20
Tightening Torque [Nm] : 140
  • Vendor BREMBO
  • SKU 09.B026.11
  • Barcode 8020584025963
  • VOLVO : 31277357 312773570 31381987 313819870 31410569 31471033 314710330
  • VOLVO ASIA : 31277357 31410569 31471033
  • BLUE PRINT : ADF124303
  • BORG & BECK : BBD4767
  • BOSCH : 0 986 479 713
  • DELPHI : BG4270
  • FEBI BILSTEIN : 39620
  • FTE : 9071379
  • FTE : 9082879
  • HELLA : 8DD 355 116-191
  • MEYLE : 515 523 0009/PD
  • MINTEX : MDC2199
  • SKF : VKBD 90084 V2
  • TEXTAR : 92196403
  • TRW : DF6308
  • VALEO : 197763
  • VALEO : 673126
