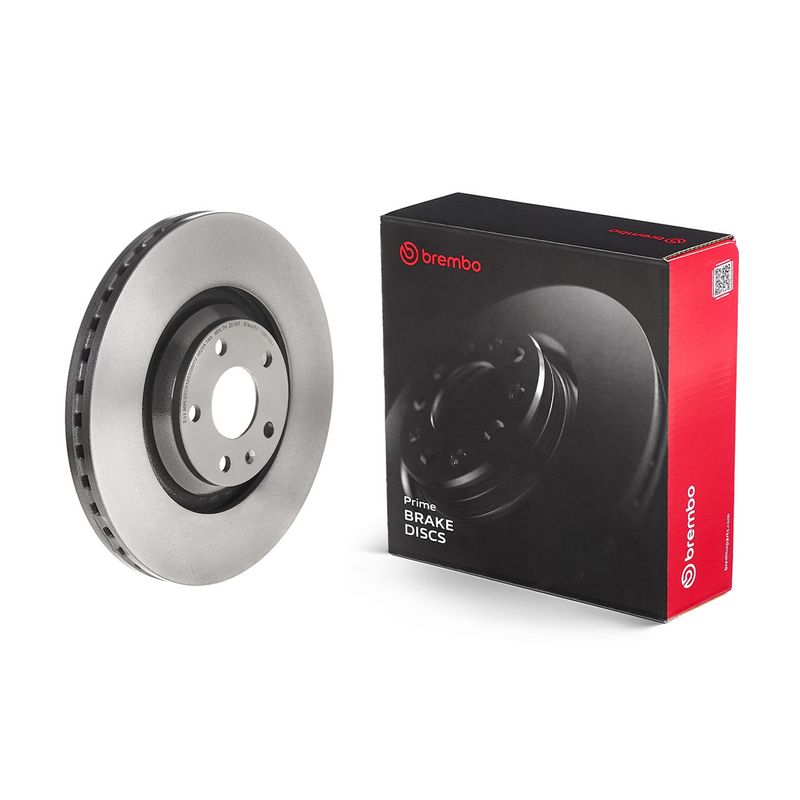

Brembo 09.B038.11 Brake Disc

SKU: 09.B038.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£80.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
TT (8J3)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 211 HP 05/2010 - 06/2014
2.0 TFSI quattro 1984 CCM 211 HP 05/2010 - 06/2014
2.5 RS quattro 2480 CCM 360 HP 05/2011 - 06/2014
2.0 TFSI 1984 CCM 200 HP 08/2006 - 06/2010
3.2 V6 quattro 3189 CCM 250 HP 08/2006 - 06/2010
2.0 TTS quattro 1984 CCM 272 HP 05/2008 - 06/2014
1.8 TFSI 1798 CCM 160 HP 06/2008 - 06/2014
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
2.0 TTS quattro 1984 CCM 265 HP 05/2008 - 06/2014
2.0 TFSI quattro 1984 CCM 200 HP 06/2008 - 06/2010
2.5 RS quattro 2480 CCM 340 HP 07/2009 - 06/2014
TT Roadster (8J9)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 200 HP 03/2007 - 06/2010
3.2 V6 quattro 3189 CCM 250 HP 03/2007 - 06/2010
2.0 TTS quattro 1984 CCM 272 HP 05/2008 - 06/2014
1.8 TFSI 1798 CCM 160 HP 06/2008 - 06/2014
2.0 TDI quattro 1968 CCM 170 HP 06/2008 - 06/2014
2.0 TTS quattro 1984 CCM 265 HP 05/2008 - 06/2014
2.0 TFSI quattro 1984 CCM 200 HP 06/2008 - 06/2010

The Brembo 09.B038.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 65 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

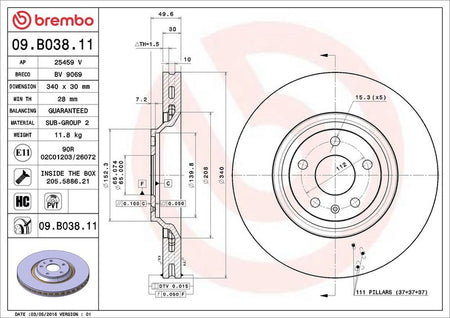

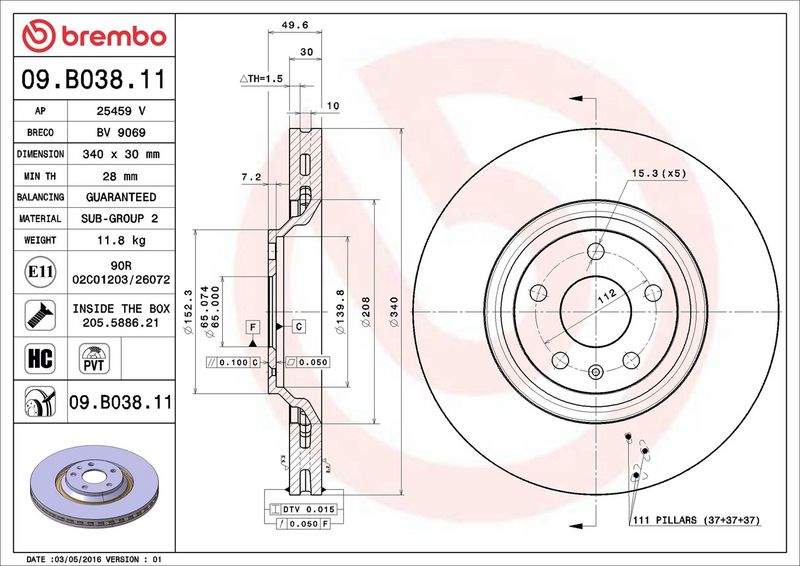

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 50
Centering Diameter [mm] : 65
Outer Diameter [mm] : 340
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.B038.11
  • Barcode 8020584220887
  • AUDI : 8J0615301 8J0615301B 8J0615301G
  • BLUE PRINT : ADV184340
  • BOSCH : 0 986 479 464
  • DELPHI : BG9054
  • DELPHI : BG9202C
  • FEBI BILSTEIN : 44031
  • FTE : 9071260
  • HELLA : 8DD 355 129-701
  • MEYLE : 183 521 0003/PD
  • MINTEX : MDC2546
  • SKF : VKBD 80923 V1
  • TEXTAR : 92160505
  • TRW : DF6041S
  • VALEO : 673516
