Brembo 09.B040.11 Brake Disc - 1
Brembo 09.B040.11 Brake Disc - 2
Brembo 09.B040.11 Brake Disc - 1
Brembo 09.B040.11 Brake Disc - 2
BREMBO

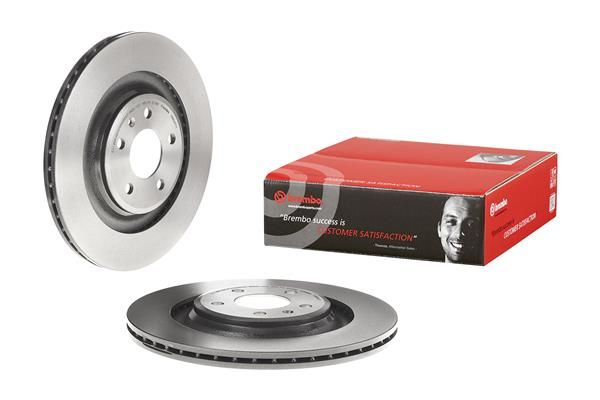

Brembo 09.B040.11 Brake Disc

SKU: 09.B040.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£120.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A5 (8T3)
Description Cylinder Capacity Horse Power Year
S5 quattro 4163 CCM 354 HP 06/2007 - 03/2012
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
2.0 TFSI Hybrid quattro 1984 CCM 245 HP 06/2011 - 06/2016
2.0 TDI 1968 CCM 136 HP 11/2010 - 05/2017
2.0 TDI 1968 CCM 143 HP 11/2010 - 05/2013
2.0 TFSI quattro 1984 CCM 211 HP 11/2008 - 09/2012
2.0 TDI quattro 1968 CCM 170 HP 11/2008 - 09/2012
3.0 TDI quattro 2967 CCM 240 HP 11/2008 - 05/2017
3.2 FSI quattro 3197 CCM 270 HP 11/2008 - 12/2012
2.0 TFSI quattro 1984 CCM 180 HP 08/2009 - 05/2017
2.0 TDI quattro 1968 CCM 143 HP 08/2009 - 05/2013
2.0 TDI quattro 1968 CCM 136 HP 08/2009 - 05/2017
2.0 TDI quattro 1968 CCM 163 HP 11/2008 - 05/2017
3.0 TDI quattro 2967 CCM 245 HP 06/2012 - 05/2017
2.0 TDI quattro 1968 CCM 177 HP 06/2012 - 05/2017
2.0 TFSI quattro 1984 CCM 224 HP 06/2012 - 05/2016

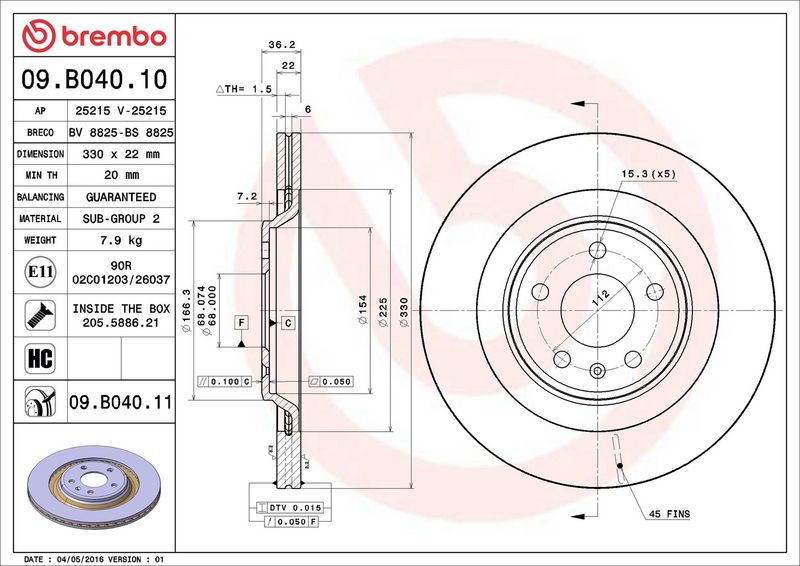

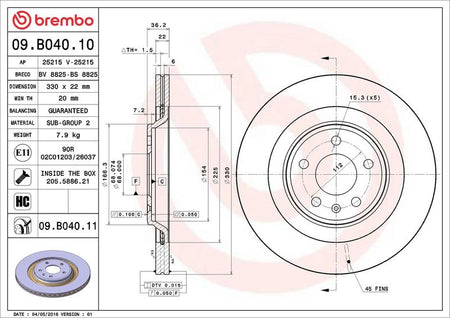

The Brembo 09.B040.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 36
Centering Diameter [mm] : 68
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20
Tightening Torque [Nm] : 120
  • Vendor BREMBO
  • SKU 09.B040.11
  • Barcode 8020584026168
  • AUDI : 8K0615601C
  • BLUE PRINT : ADV184344
  • BORG & BECK : BBD4690
  • BOSCH : 0 986 479 750
  • BOSCH : 0 986 479 C86
  • DELPHI : BG4078
  • FEBI BILSTEIN : 36454
  • FEBI BILSTEIN : 43985
  • FTE : 9071049
  • HELLA : 8DD 355 128-741
  • MEYLE : 115 523 0009/PD
  • MINTEX : MDC2004
  • SKF : VKBD 90919 V1
  • TEXTAR : 92160303
  • TRW : DF4860S
  • VALEO : 673268
