Brembo 09.B043.11 Brake Disc - 1
Brembo 09.B043.11 Brake Disc - 2
Brembo 09.B043.11 Brake Disc - 1
Brembo 09.B043.11 Brake Disc - 2
BREMBO

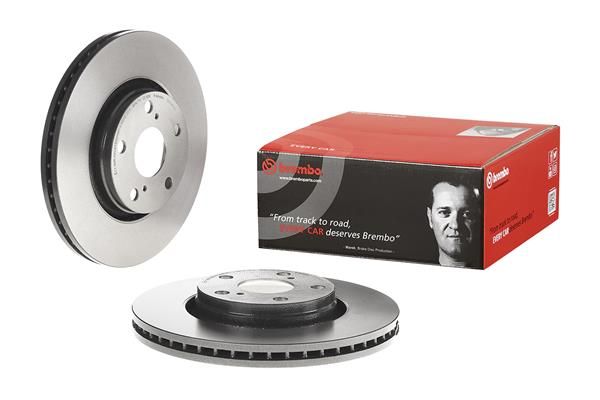

Brembo 09.B043.11 Brake Disc

SKU: 09.B043.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£89.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADE186_, ADE186R) 1998 CCM 124 HP 10/2012 - 04/2015
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADE186_) 1998 CCM 124 HP 07/2013 - 04/2015
AVENSIS Saloon (_T27_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 124 HP 11/2011 - 10/2018
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 126 HP 11/2008 - 10/2018
1.6 D4-D (WWT270_) 1598 CCM 112 HP 04/2015 - 10/2018
AVENSIS Estate (_T27_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 124 HP 11/2011 - 10/2018
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 126 HP 11/2008 - 10/2018
1.6 D4-D (WWT270_) 1598 CCM 112 HP 04/2015 - 10/2018
VERSO (_R2_)
Description Cylinder Capacity Horse Power Year
1.6 (ZGR20_, ZGR20R) 1598 CCM 132 HP 04/2009 - 08/2018
1.8 (ZGR21_, ZGR21R) 1798 CCM 147 HP 04/2009 - 08/2018
2.0 D-4D (AUR20_, AUR20R) 1998 CCM 126 HP 04/2009 - 08/2018
2.0 D-4D (AUR20_, AUR20R) 1998 CCM 124 HP 11/2012 - 08/2018
1.6 D4-D (WAR20_) 1598 CCM 112 HP 11/2013 - 08/2018
1.6 (ZGR20) 1598 CCM 110 HP 04/2009 - 08/2018

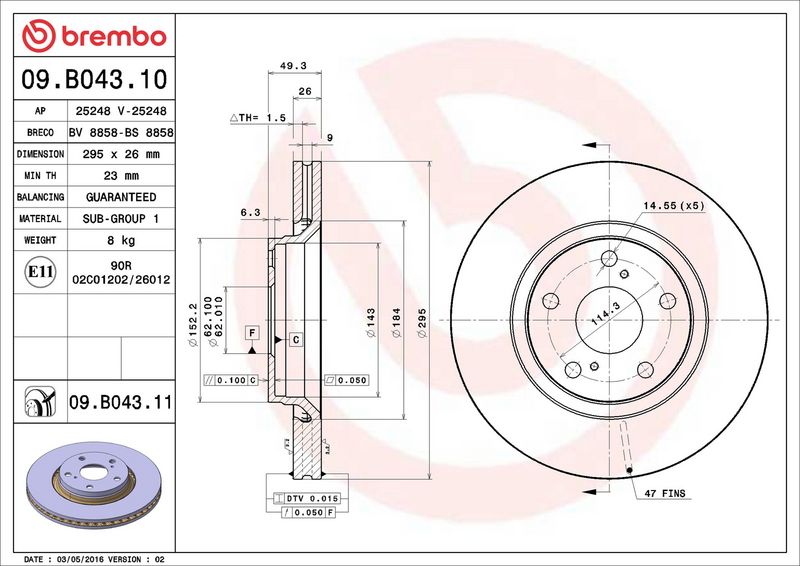

The Brembo 09.B043.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 295
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.B043.11
  • Barcode 8020584225585
  • TOYOTA : 435120F030
  • BLUE PRINT : ADT343271
  • BOSCH : 0 986 479 560
  • DELPHI : BG4236C
  • FEBI BILSTEIN : 108413
  • HELLA : 8DD 355 114-281
  • MEYLE : 30-15 521 0119
  • MEYLE : 30-15 521 0119/PD
  • MINTEX : MDC2049C
  • SKF : VKBD 80078 V1
  • TEXTAR : 92163903
  • TRW : DF4939S
  • VALEO : 197187
  • VALEO : 672759
