Brembo 09.B046.11 Brake Disc

SKU: 09.B046.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£50.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS Saloon (_T27_)
Description Cylinder Capacity Horse Power Year
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 150 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 177 HP 11/2008 - 10/2018
2.0 D-4D (WWT271_) 1995 CCM 143 HP 04/2015 - 10/2018
AVENSIS Estate (_T27_)
Description Cylinder Capacity Horse Power Year
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 150 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 177 HP 11/2008 - 10/2018
2.0 D-4D (WWT271_) 1995 CCM 143 HP 04/2015 - 10/2018
VERSO (_R2_)
Description Cylinder Capacity Horse Power Year
2.2 D-4D (AUR21_, AUR21R) 2231 CCM 150 HP 04/2009 - 08/2018
2.2 D-CAT (AUR21_, AUR21R) 2231 CCM 177 HP 04/2009 - 08/2018
2.2 D-4D (AUR21) 2231 CCM 136 HP 04/2009 - 08/2018

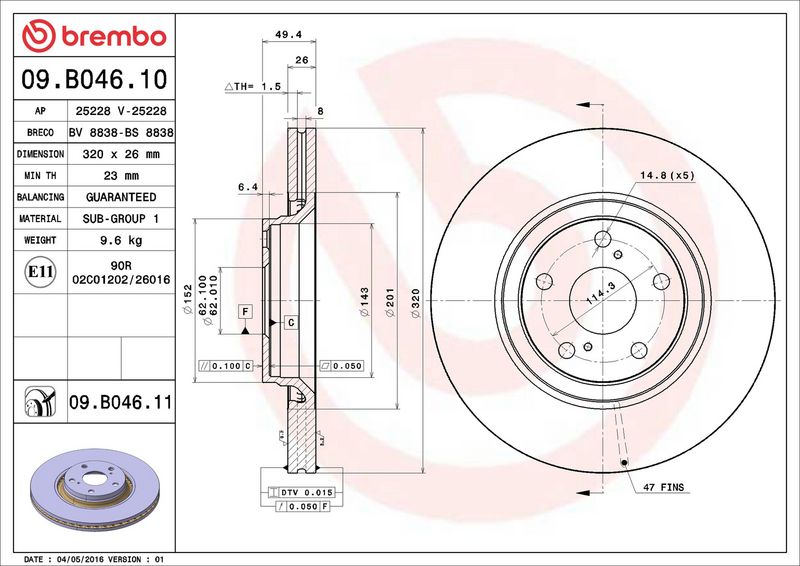

The Brembo 09.B046.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 320
Surface : Coated
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.B046.11
  • Barcode 8020584028391
  • TOYOTA : 4351205090
  • BLUE PRINT : ADT343272
  • BORG & BECK : BBD5893S
  • BOSCH : 0 986 479 562
  • DELPHI : BG4235
  • FEBI BILSTEIN : 108551
  • FTE : 9071349
  • FTE : 9081137
  • HELLA : 8DD 355 116-131
  • MEYLE : 30-15 521 0124/PD
  • MINTEX : MDC2168
  • SKF : VKBD 81143 V1
  • TEXTAR : 92195300
  • TEXTAR : 92195303
  • TRW : DF6268
  • VALEO : 673681
