Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.B272.10 Brake Disc - 1
Brembo 09.B272.10 Brake Disc - 2
Brembo 09.B272.10 Brake Disc - 1
Brembo 09.B272.10 Brake Disc - 2
BREMBO

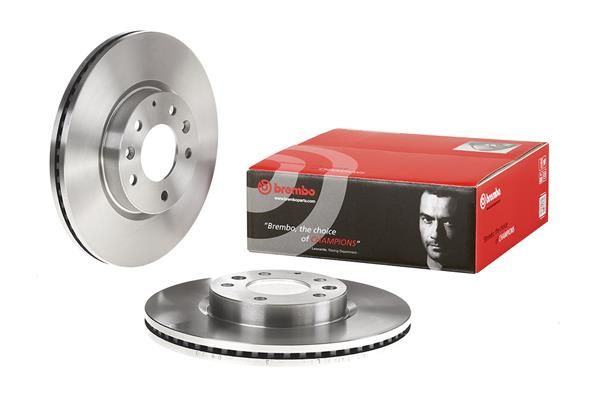

Brembo 09.B272.10 Brake Disc

SKU: 09.B272.10
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£93.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
6 Saloon (GH)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F) 1999 CCM 147 HP 08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP) 2488 CCM 170 HP 08/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2010
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.0 MZR (GHEFP) 1999 CCM 155 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.2 D (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
6 Hatchback (GH)
Description Cylinder Capacity Horse Power Year
2.2 MZR-CD (GH10) 2184 CCM 180 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.0 MZR (GHEFS) 1999 CCM 155 HP 01/2010 - 12/2012
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFS) 1999 CCM 147 HP 08/2007 - 07/2013
2.5 MZR (GH5FS) 2488 CCM 170 HP 08/2007 - 03/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2009
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
6 Estate (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFW) 1999 CCM 155 HP 01/2010 - 07/2013
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 07/2013
2.2 MZR-CD (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
1.8 MZR 1798 CCM 120 HP 02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F) 1999 CCM 147 HP 12/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 12/2007 - 12/2010
2.5 MZR (GH5FW) 2488 CCM 170 HP 02/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2010
2.2 MZR-CD (GH10) 2184 CCM 163 HP 08/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 185 HP 08/2008 - 12/2011

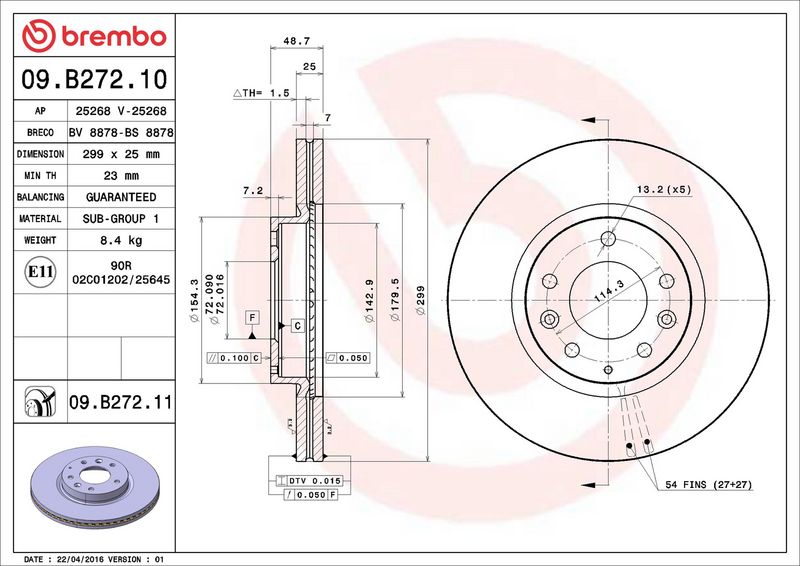

The Brembo 09.B272.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 72
Outer Diameter [mm] : 299
Minimum thickness [mm] : 23
Tightening Torque [Nm] : 103
  • Vendor BREMBO
  • SKU 09.B272.10
  • Barcode 8020584033630
  • MAZDA : G33Y3325X G33Y3325XA
  • MAZDA (FAW) : GV7D33251
  • BESTURN (FAW) : 5DA026251
  • BLUE PRINT : ADM543109
  • BORG & BECK : BBD4751
  • BOSCH : 0 986 479 542
  • BOSCH : 0 986 479 C74
  • DELPHI : BG4255
  • DELPHI : BG4255C
  • FEBI BILSTEIN : 170040
  • FTE : 9071117
  • FTE : 9081110
  • HELLA : 8DD 355 115-771
  • MEYLE : 35-15 521 0040
  • MEYLE : 35-15 521 0040/PD
  • MINTEX : MDC2091
  • National : NBD1700
  • SKF : VKBD 80218 V1
  • TEXTAR : 92180703
  • TRW : DF4974S
  • VALEO : 197470
  • VALEO : 672518
