Brembo 09.B280.41 Brake Disc - 1
Brembo 09.B280.41 Brake Disc - 2
Brembo 09.B280.41 Brake Disc - 1
Brembo 09.B280.41 Brake Disc - 2
BREMBO

Brembo 09.B280.41 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B280.41

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£103.63 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W204)
Description Cylinder Capacity Horse Power Year
C 250 CDI 4-matic (204.082) 2143 CCM 204 HP 01/2011 - 01/2014
C 200 (204.048) 1796 CCM 186 HP 05/2011 - 01/2014
C 220 CDI (204.008) 2148 CCM 170 HP 01/2007 - 11/2008
C 180 Kompressor (204.046) 1796 CCM 156 HP 01/2007 - 01/2009
C 200 Kompressor (204.041) 1796 CCM 184 HP 01/2007 - 01/2014
C 230 (204.052) 2496 CCM 204 HP 01/2007 - 01/2014
C-CLASS T-Model (S204)
Description Cylinder Capacity Horse Power Year
C 250 CGI (204.247) 1796 CCM 204 HP 07/2009 - 08/2014
C 250 CDI 4-matic (204.282) 2143 CCM 204 HP 04/2010 - 08/2014
C 200 Kompressor (204.241) 1796 CCM 184 HP 08/2007 - 08/2014
C 230 (204.252) 2496 CCM 204 HP 08/2007 - 08/2014
C 280 (204.254) 2996 CCM 231 HP 08/2007 - 08/2014
C 220 CDI (204.208) 2148 CCM 170 HP 08/2007 - 11/2008
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 220 CDI (204.302) 2143 CCM 170 HP From 06/2011
C 250 CDI (204.303) 2143 CCM 204 HP From 06/2011
C 250 (204.347) 1796 CCM 204 HP From 06/2011
C 200 CGI (204.348) 1796 CCM 184 HP From 06/2011
C 180 (204.331) 1595 CCM 156 HP From 01/2013
C 220 CDI (204.302) 2143 CCM 163 HP From 06/2011
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 250 CDI / BlueTEC 4-matic (212.082, 212.097) 2143 CCM 204 HP 01/2011 - 12/2015
E 200 NGT (212.041) 1796 CCM 163 HP 03/2011 - 12/2015
E 200 (212.034) 1991 CCM 184 HP 01/2013 - 12/2016
E-CLASS Coupe (C207)
Description Cylinder Capacity Horse Power Year
E 250 CGI (207.347) 1796 CCM 204 HP 01/2009 - 12/2016
E 220 CDI / d (207.302, 207.301) 2143 CCM 170 HP 01/2010 - 12/2016
E 200 CGI (207.348) 1796 CCM 184 HP 01/2010 - 12/2016
E 200 (207.334) 1991 CCM 184 HP 06/2013 - 12/2016
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 200 CDI / BlueTEC (212.205, 212.206) 2143 CCM 136 HP 11/2009 - 12/2016
E 220 CDI / BlueTEC (212.202, 212.201) 2143 CCM 170 HP 11/2009 - 12/2016
E-CLASS Convertible (A207)
Description Cylinder Capacity Horse Power Year
E 220 CDI / BlueTEC / d (207.402, 207.401) 2143 CCM 170 HP 01/2010 - 12/2016
E 200 CGI (207.448) 1796 CCM 184 HP 01/2010 - 12/2016
E 250 CGI (207.447) 1796 CCM 204 HP 01/2010 - 12/2016
E 220 CDI (207.402) 2143 CCM 163 HP 02/2010 - 12/2016
E 200 (207.434) 1991 CCM 184 HP 03/2013 - 12/2016
SLC (R172)
Description Cylinder Capacity Horse Power Year
180 (172.431) 1595 CCM 156 HP From 01/2016
SLK (R172)
Description Cylinder Capacity Horse Power Year
250 (172.447) 1796 CCM 204 HP From 02/2011
200 (172.448) 1796 CCM 184 HP From 02/2011

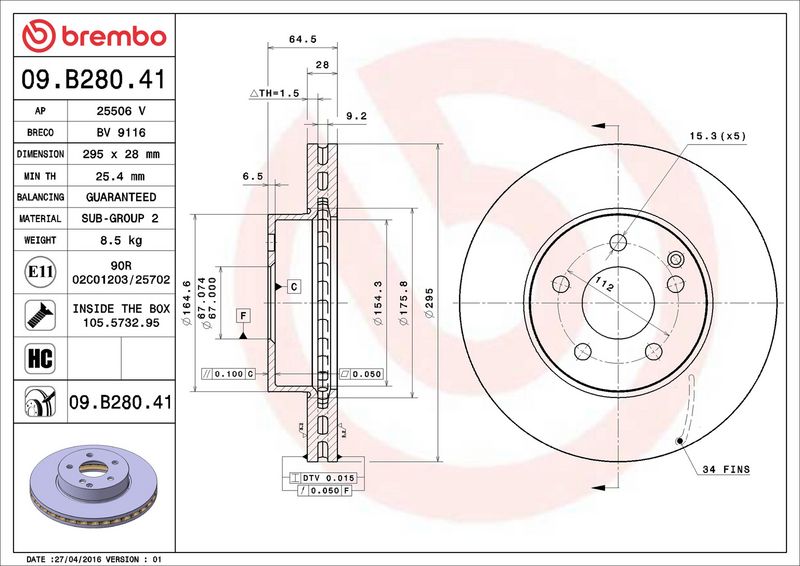

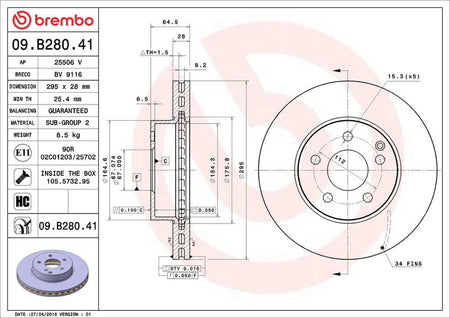

The Brembo 09.B280.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 65
Centering Diameter [mm] : 67
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B280.41
  • Barcode 8020584219843
  • MERCEDES-BENZ : 2044210712 2044211612 2044212412 2044212512 2124211212 2124211312 A2044210712 A2044211612 A2044212412 A2044212512 A2124211212 A2124211312
  • MERCEDES-BENZ (BBDC) : A2044210712 A2044212512 A2124211312
  • APEC : DSK2589
  • APEC : SDK6300
  • BLUE PRINT : ADU174306
  • BORG & BECK : BBD4629
  • BOSCH : 0 986 479 407
  • DELPHI : BG4945C
  • Fahren : FBD6300
  • FEBI BILSTEIN : 30550
  • FTE : 9071003
  • HELLA : 8DD 355 114-201
  • MEYLE : 015 521 2099
  • MEYLE : 083 521 2099/PD
  • MINTEX : MDC2014C
  • NAPA : NBD5539
  • SKF : VKBD 80181 V1
  • TEXTAR : 92163205
  • VALEO : 197202
  • VALEO : 672519
