BREMBO

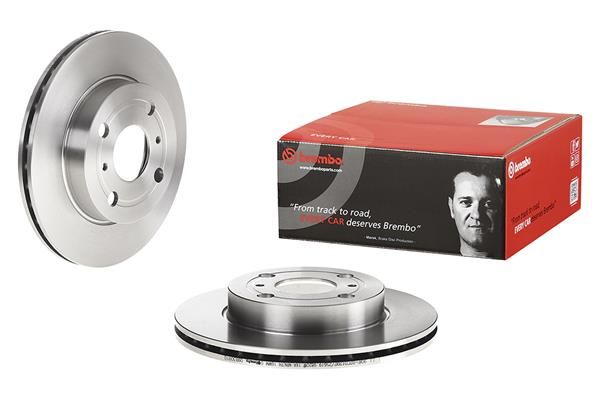

Brembo 09.B309.10 Brake Disc

SKU: 09.B309.10

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£51.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

YARIS/VITZ (_P1_)

Description	Cylinder Capacity	Horse Power	Year
1.0 (SCP10_, SCP10R)	998 CCM	68 HP	04/1999 - 09/2005
1.3 (NCP10, SCP12_)	1299 CCM	86 HP	08/1999 - 11/2005
1.4 D-4D (NLP10_, NLP10R)	1364 CCM	75 HP	10/2001 - 09/2005
1.3 (SCP12_, SCP13_, SCP12R, SCP13R)	1298 CCM	87 HP	04/2002 - 09/2005
1.0 (SCP10_, SCP10R)	998 CCM	65 HP	03/2003 - 09/2005

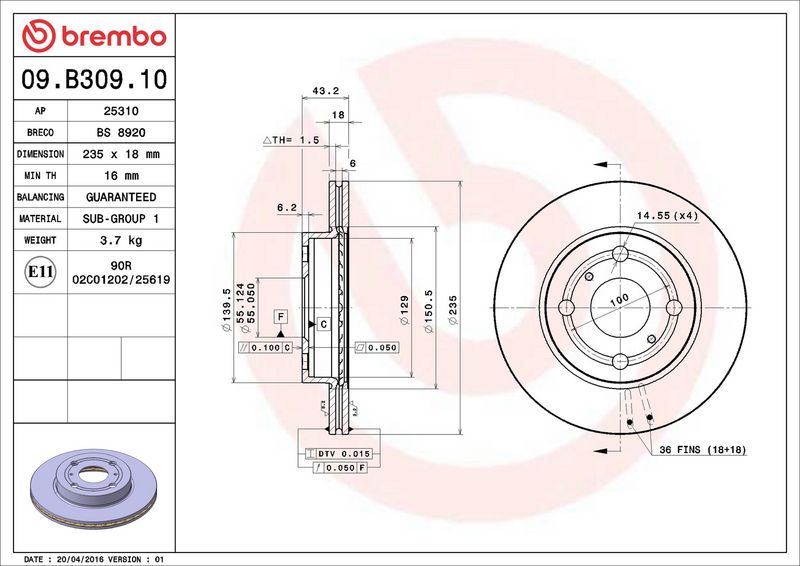

The Brembo 09.B309.10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 4 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 18

Number of Holes : 4

Height [mm] : 43

Centering Diameter [mm] : 55

Outer Diameter [mm] : 235

Minimum thickness [mm] : 16

Tightening Torque [Nm] : 103

BLUE PRINT : ADT343113
BORG & BECK : BBD4173
BOSCH : 0 986 479 B92
BOSCH : 0 986 479 S46
DELPHI : BG3519
DELPHI : BG3519C
FEBI BILSTEIN : 26068
FEBI BILSTEIN : 27399
FTE : 9072126
HELLA : 8DD 355 107-281
MEYLE : 30-15 521 0099
MINTEX : MDC1392
MINTEX : MDC1392C
National : NBD990
SKF : VKBD 80302 V2
TEXTAR : 92103603
TRW : DF4112
VALEO : 186587
VALEO : 672745
VALEO : 672798

Brembo 09.B309.10 Brake Disc
