Brembo 09.B313.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.B313.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£56.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW

5 Touring (E61)

Description	Cylinder Capacity	Horse Power	Year
530 xd	2993 CCM	231 HP	02/2005 - 02/2007
525 xi	2497 CCM	218 HP	07/2005 - 12/2010
530 xi	2996 CCM	258 HP	04/2005 - 02/2007

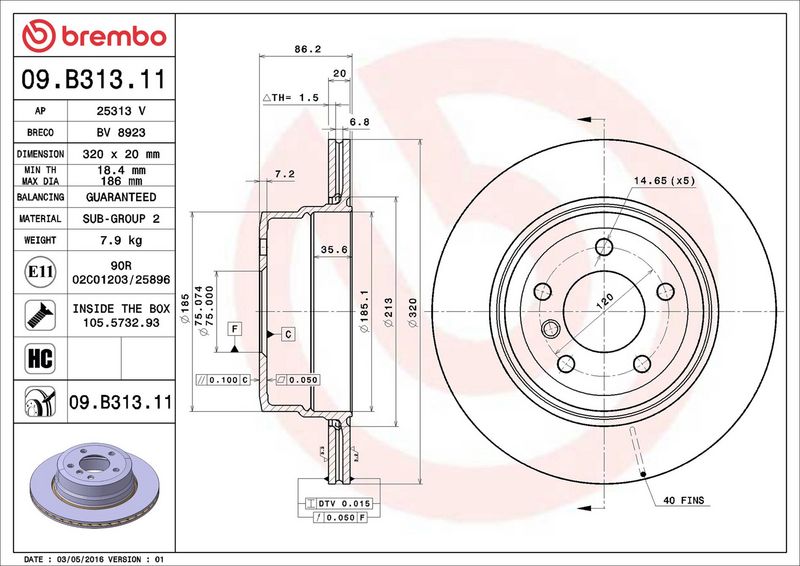

The Brembo 09.B313.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 20

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 86

Centering Diameter [mm] : 75

Outer Diameter [mm] : 320

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 18.4

Tightening Torque [Nm] : 120
