Brembo 09.B338.11 Brake Disc - 1
Brembo 09.B338.11 Brake Disc - 2
Brembo 09.B338.11 Brake Disc - 1
Brembo 09.B338.11 Brake Disc - 2
BREMBO

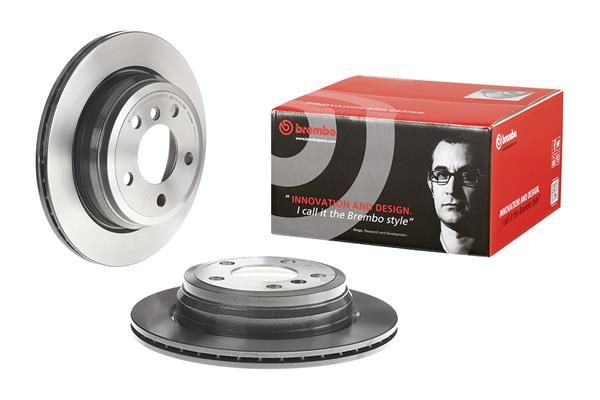

Brembo 09.B338.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.B338.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£92.73 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 11/2011 - 10/2018
320 d 1995 CCM 163 HP 11/2011 - 10/2018
316 d 1995 CCM 116 HP 03/2012 - 10/2018
318 d 1995 CCM 136 HP 03/2012 - 10/2018
320 d xDrive 1995 CCM 163 HP 08/2012 - 10/2018
320 i xDrive 1997 CCM 184 HP 07/2012 - 10/2018
320 d xDrive 1995 CCM 184 HP 08/2012 - 06/2015
328 i xDrive 1997 CCM 245 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
325 d 1995 CCM 211 HP 07/2013 - 06/2016
320 d 1995 CCM 163 HP 03/2013 - 03/2018
320 i 1997 CCM 184 HP 03/2013 - 06/2016
328 i 1997 CCM 245 HP 03/2013 - 06/2016
318 d 1995 CCM 143 HP 03/2013 - 06/2015
320 d 1995 CCM 184 HP 03/2013 - 06/2015
320 i xDrive 1997 CCM 184 HP 11/2012 - 06/2016
328 i xDrive 1997 CCM 245 HP 07/2013 - 06/2016
320 d xDrive 1995 CCM 184 HP 07/2013 - 06/2015
325 d 1995 CCM 218 HP 07/2013 - 06/2016
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
320 i 1997 CCM 184 HP 11/2012 - 06/2015
328 i 1997 CCM 245 HP 07/2012 - 06/2015
316 d 1995 CCM 116 HP 11/2012 - 06/2019
318 d 1995 CCM 143 HP 11/2012 - 06/2015
320 d 1995 CCM 184 HP 07/2012 - 02/2016
320 d 1995 CCM 163 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
328 i xDrive 1997 CCM 245 HP 03/2013 - 06/2016
320 i xDrive 1997 CCM 184 HP 03/2013 - 06/2015
320 d xDrive 1995 CCM 184 HP 03/2013 - 06/2015
316 i 1598 CCM 136 HP 03/2013 - 06/2015
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
420 d xDrive 1995 CCM 184 HP 11/2013 - 02/2015
420 i xDrive 1997 CCM 184 HP 11/2013 - 02/2016
428 i 1997 CCM 245 HP 07/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 07/2013 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
420 d 1995 CCM 184 HP 10/2013 - 06/2015
428 i 1997 CCM 245 HP 11/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i 1997 CCM 184 HP 07/2014 - 02/2016
425 d 1995 CCM 218 HP 07/2014 - 02/2016
420 d 1995 CCM 200 HP 10/2013 - 06/2015
420 d 1995 CCM 190 HP 07/2015 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
418 d 1995 CCM 143 HP 03/2014 - 06/2015
420 d 1995 CCM 184 HP 03/2014 - 02/2015
420 d xDrive 1995 CCM 184 HP 03/2014 - 02/2015
420 i 1997 CCM 184 HP 03/2014 - 02/2017
428 i 1997 CCM 245 HP 03/2014 - 06/2016
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
420 i xDrive 1997 CCM 184 HP 07/2014 - 02/2016

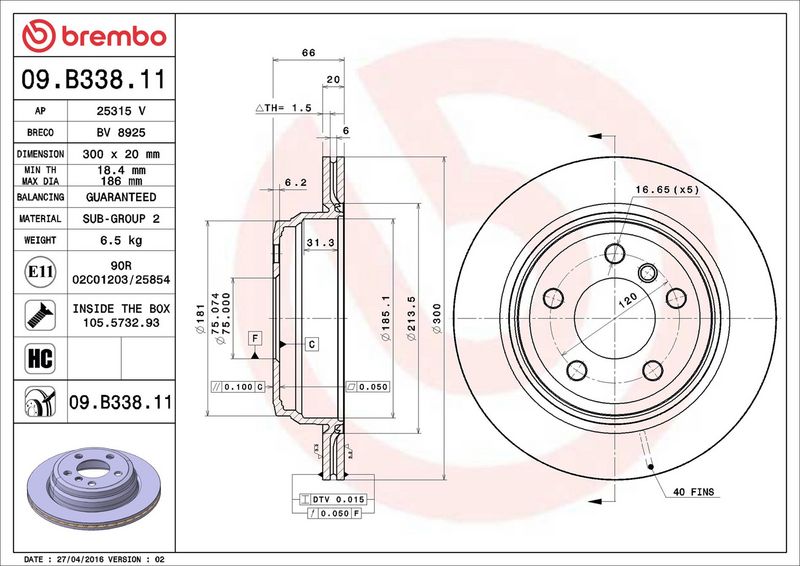

The Brembo 09.B338.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.4
  • Vendor BREMBO
  • SKU 09.B338.11
  • Barcode 8020584217825
  • BMW : 34216792229 34216797344 34216864900
  • BMW (BRILLIANCE) : 34216792229 34216864900
  • APEC : DSK3099
  • APEC : SDK6805
  • BLUE PRINT : ADB114334
  • BORG & BECK : BBD5259
  • BOSCH : 0 986 479 045
  • DELPHI : BG5223C
  • Fahren : FBD6805
  • FEBI BILSTEIN : 43868
  • FTE : 9072111
  • HELLA : 8DD 355 118-271
  • MEYLE : 315 523 0032/PD
  • MINTEX : MDC2356
  • NAPA : NBD5174
  • National : NBD1876
  • SKF : VKBD 90120 V1
  • TEXTAR : 92239703
  • VALEO : 197786
  • VALEO : 672778
