Brembo 09.B338.2X Brake Disc - 1
Brembo 09.B338.2X Brake Disc - 2
Brembo 09.B338.2X Brake Disc - 1
Brembo 09.B338.2X Brake Disc - 2
BREMBO

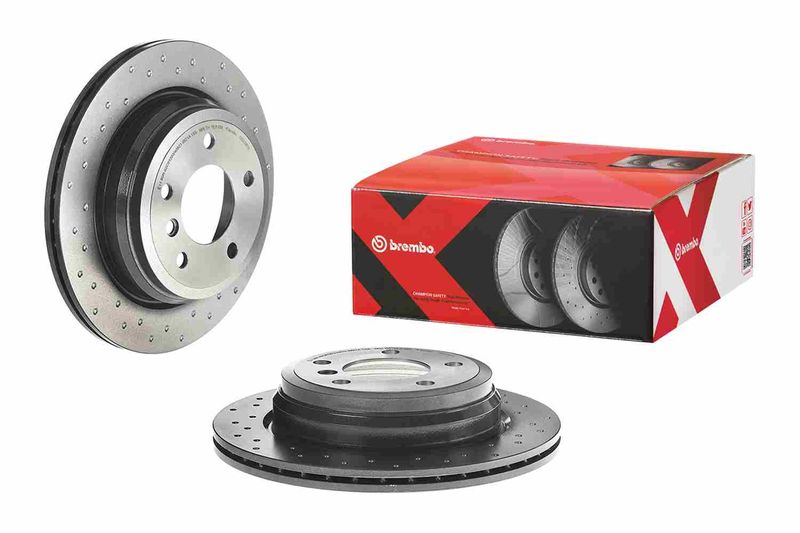

Brembo 09.B338.2X Brake Disc

SKU: 09.B338.2X
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£156.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 258 HP 03/2007 - 06/2011
130 i 2996 CCM 265 HP 09/2005 - 02/2007
1 (E81)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 265 HP 09/2006 - 12/2011
123 d 1995 CCM 204 HP 03/2007 - 12/2011
130 i 2996 CCM 258 HP 09/2006 - 12/2011
3 (E90)
Description Cylinder Capacity Horse Power Year
320 d xDrive 1995 CCM 163 HP 09/2008 - 10/2011
325 xi 2497 CCM 218 HP 09/2005 - 08/2008
320 si 1997 CCM 173 HP 09/2005 - 08/2006
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
325 i 2996 CCM 211 HP 09/2007 - 06/2012
318 d 1995 CCM 136 HP 07/2007 - 06/2012
318 i 1995 CCM 136 HP 09/2007 - 03/2012
316 d 1995 CCM 116 HP 09/2009 - 06/2012
320 i 1995 CCM 150 HP 09/2005 - 06/2012
325 i 2497 CCM 218 HP 12/2004 - 08/2008
320 d 1995 CCM 163 HP 06/2005 - 06/2012
325 xi 2497 CCM 218 HP 08/2005 - 08/2008
318 d 1995 CCM 122 HP 09/2005 - 08/2007
318 i 1995 CCM 129 HP 01/2006 - 08/2007
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
325 xi 2497 CCM 218 HP 09/2006 - 02/2010
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 170 HP 03/2007 - 10/2013
325 i 2996 CCM 218 HP 03/2007 - 12/2013
325 i 2497 CCM 218 HP 12/2006 - 02/2010
320 d 1995 CCM 177 HP 03/2008 - 02/2010
320 d 1995 CCM 184 HP 03/2010 - 10/2013
325 i 2996 CCM 211 HP 10/2006 - 12/2013
X1 (E84)
Description Cylinder Capacity Horse Power Year
xDrive 28 i 1997 CCM 245 HP 03/2011 - 06/2015
sDrive 20 i 1997 CCM 184 HP 09/2011 - 06/2015
xDrive 20 i 1997 CCM 184 HP 09/2011 - 06/2015
sDrive 18 i 1995 CCM 136 HP 03/2010 - 06/2015
sDrive 18 d 1995 CCM 143 HP 12/2009 - 06/2015
xDrive 18 d 1995 CCM 143 HP 10/2009 - 06/2015
xDrive 20 d 1995 CCM 177 HP 09/2009 - 06/2012
sDrive 20 d 1995 CCM 177 HP 10/2009 - 06/2015
xDrive 23 d 1995 CCM 204 HP 10/2009 - 06/2015
xDrive 20 d 1995 CCM 163 HP 03/2010 - 06/2015
sDrive 20 d 1995 CCM 163 HP 03/2010 - 06/2015
sDrive 18 d 1995 CCM 136 HP 03/2009 - 06/2015
xDrive 18 d 1995 CCM 136 HP 03/2009 - 06/2015
sDrive 18 i 1995 CCM 150 HP 03/2010 - 06/2015

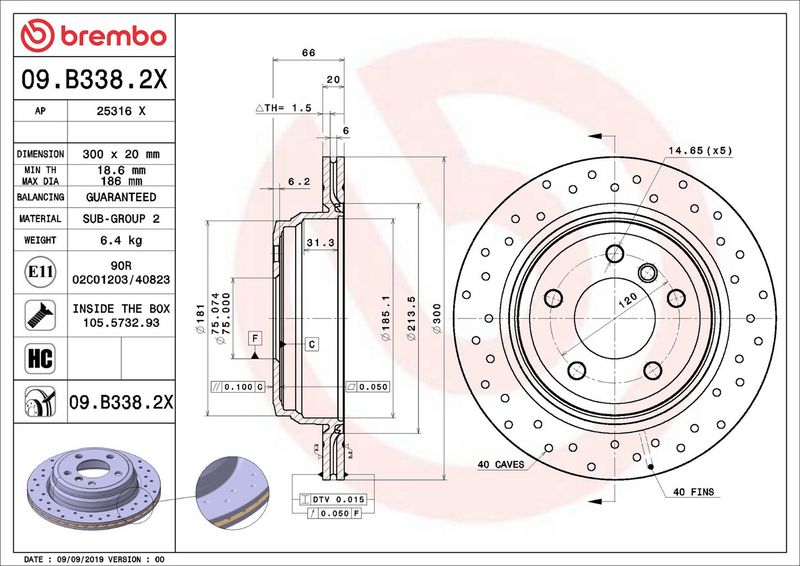

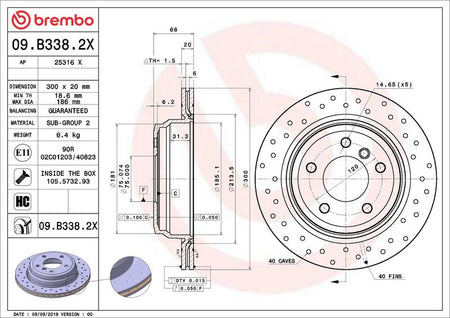

The Brembo 09.B338.2X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 20 mm brake disc thickness, 5 mounting holes, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Thickness [mm] : 20
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 75
Outer Diameter [mm] : 300
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 18.6
  • Vendor BREMBO
  • SKU 09.B338.2X
  • Barcode 8020584237977
  • BMW : 34216764653 34216855008 34216855657 34216864901
  • BMW (BRILLIANCE) : 34216764653 34216855008 34216864901
  • BLUE PRINT : ADB114309
  • BOSCH : 0 986 479 263
  • FEBI BILSTEIN : 24475
  • FTE : 9072103
  • HELLA : 8DD 355 117-831
  • MEYLE : 315 523 0050
  • MEYLE : 315 523 0050/PD
  • MINTEX : MDC2232
  • TEXTAR : 92154903
