Brembo 09.B343.41 Brake Disc - 1
Brembo 09.B343.41 Brake Disc - 2
Brembo 09.B343.41 Brake Disc - 1
Brembo 09.B343.41 Brake Disc - 2
BREMBO

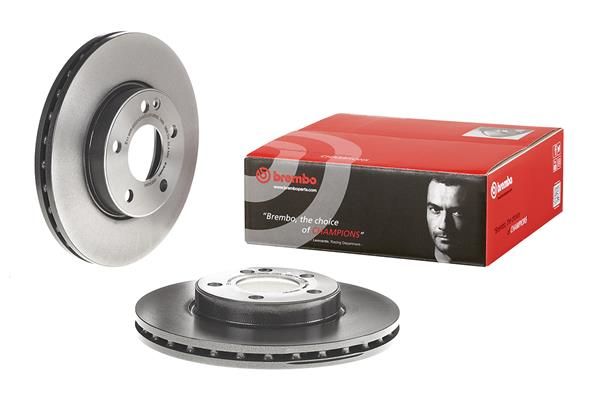

Brembo 09.B343.41 Brake Disc

SKU: 09.B343.41
Your selected vehicle
Out of stock
Out of Stock
£82.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 180 CDI / d (176.012) 1461 CCM 109 HP 06/2012 - 05/2018
A 180 CDI (176.000) 1796 CCM 109 HP 06/2012 - 10/2014
A 160 CDI / d (176.011) 1461 CCM 90 HP 06/2013 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 160 CDI / d (246.211) 1461 CCM 90 HP 05/2013 - 12/2018
B 180 CDI / d (246.212) 1461 CCM 109 HP 02/2013 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 180 CDI / d (117.312) 1461 CCM 109 HP 10/2013 - 05/2018
CLA 180 (117.342) 1595 CCM 122 HP 01/2013 - 03/2019

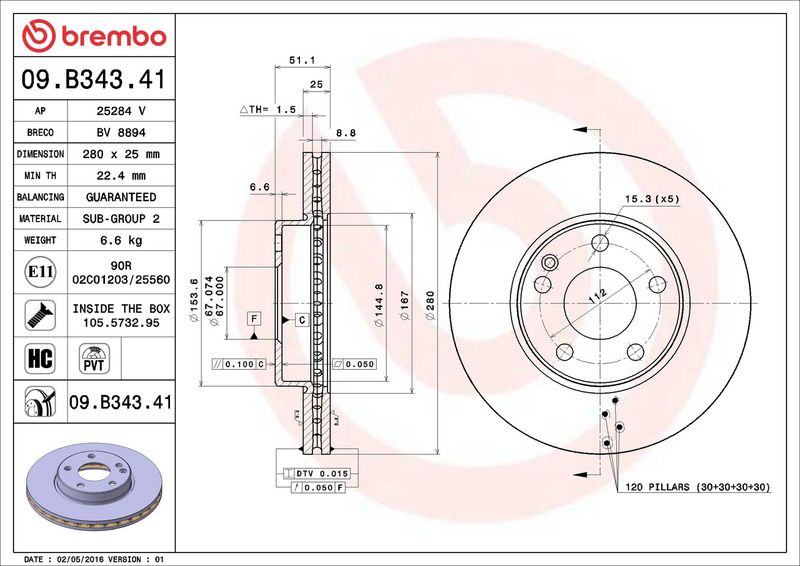

The Brembo 09.B343.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 51
Centering Diameter [mm] : 67
Outer Diameter [mm] : 280
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B343.41
  • Barcode 8020584037492
  • MERCEDES-BENZ : 2464210012 246421001207 2464211112 A2464210012 A2464211112
  • BLUE PRINT : ADU174331
  • BORG & BECK : BBD5267
  • BOSCH : 0 986 479 A00
  • DELPHI : BG4554C
  • FEBI BILSTEIN : 43835
  • FTE : 9072523
  • FTE : 9082080
  • HELLA : 8DD 355 119-601
  • MEYLE : 015 521 0031/PD
  • MINTEX : MDC2538
  • SKF : VKBD 81117 V2
  • TEXTAR : 92257005
  • TRW : DF6548
  • VALEO : 197471
  • VALEO : 672521
