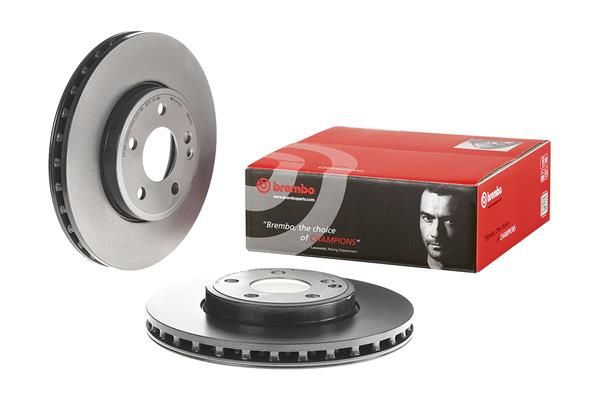

Brembo 09.B344.41 Brake Disc - 1

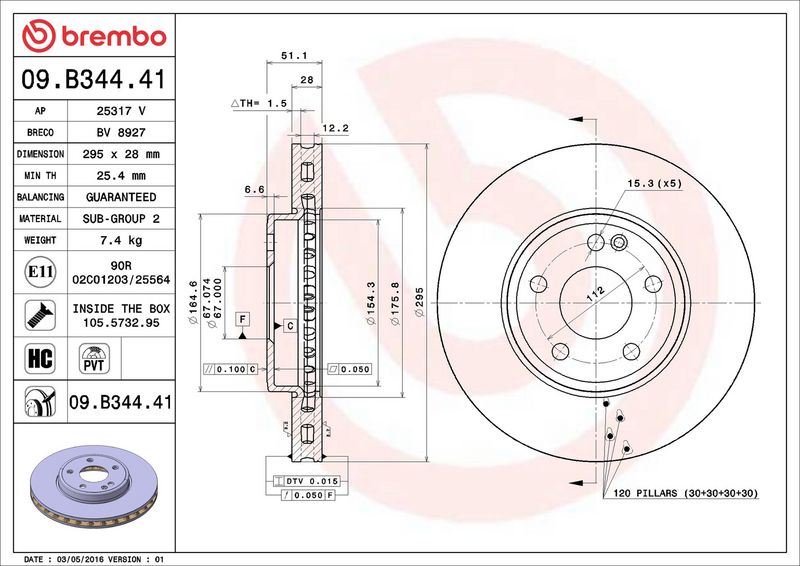

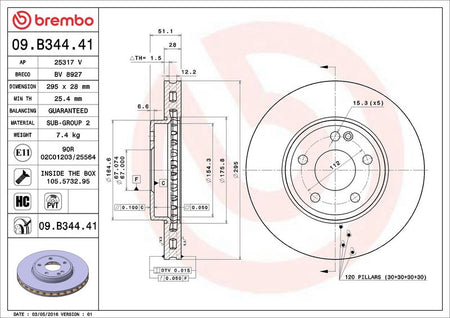

Brembo 09.B344.41 Brake Disc - 2
Brembo 09.B344.41 Brake Disc - 1
Brembo 09.B344.41 Brake Disc - 2
BREMBO

Brembo 09.B344.41 Brake Disc

SKU: 09.B344.41
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£92.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 200 (176.043) 1595 CCM 156 HP 06/2012 - 05/2018
A 200 CDI (176.001) 1796 CCM 136 HP 06/2012 - 10/2014
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 200 CDI / d (176.008) 2143 CCM 136 HP 02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002) 2143 CCM 136 HP 02/2014 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 200 CDI (246.201) 1796 CCM 136 HP 11/2011 - 08/2014
B 200 Natural Gas Drive / B 200 c (242.848) 1991 CCM 156 HP 11/2012 - 12/2017
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 200 CDI / d (246.208) 2143 CCM 136 HP 08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202) 2143 CCM 136 HP 08/2014 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 180 CDI / d (117.312) 1461 CCM 109 HP 10/2013 - 05/2018
CLA 180 (117.342) 1595 CCM 122 HP 01/2013 - 03/2019
CLA 200 (117.343) 1595 CCM 156 HP 01/2013 - 03/2019
CLA 200 CDI (117.301) 1796 CCM 136 HP 06/2013 - 08/2014
CLA 200 CDI / d 4-matic (117.302) 2143 CCM 136 HP 07/2014 - 03/2019
CLA 200 CDI / d (117.308) 2143 CCM 136 HP 07/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 180 (117.942) 1595 CCM 122 HP 01/2015 - 03/2019
CLA 200 (117.943) 1595 CCM 156 HP 01/2015 - 03/2019
CLA 200 CDI / d (117.908) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902) 2143 CCM 136 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 180 d (117.912) 1461 CCM 109 HP 07/2015 - 05/2018
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 (156.943) 1595 CCM 156 HP 12/2013 - 12/2019
GLA 180 CDI / d (156.912) 1461 CCM 109 HP 07/2014 - 05/2018
GLA 180 (156.942) 1595 CCM 122 HP 02/2015 - 12/2019

The Brembo 09.B344.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 51
Centering Diameter [mm] : 67
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B344.41
  • Barcode 8020584038178
  • MERCEDES-BENZ : 2464210112 246421011207 A2464210112 A246421011207
  • MERCEDES-BENZ (BBDC) : A2464210112
  • BLUE PRINT : ADU174316
  • BORG & BECK : BBD5268
  • BOSCH : 0 986 479 A01
  • BOSCH : 0 986 479 A58
  • DELPHI : BG4646C
  • FEBI BILSTEIN : 43861
  • FTE : 9071061
  • FTE : 9081305
  • HELLA : 8DD 355 119-591
  • MEYLE : 083 521 0011/PD
  • MINTEX : MDC2537
  • National : NBD1670
  • SKF : VKBD 81070 V2
  • TEXTAR : 92241600
  • TEXTAR : 92241603
  • TRW : DF6501
  • VALEO : 197670
  • VALEO : 672777
