Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.B436.41 Brake Disc - 1
Brembo 09.B436.41 Brake Disc - 2
Brembo 09.B436.41 Brake Disc - 1
Brembo 09.B436.41 Brake Disc - 2
BREMBO

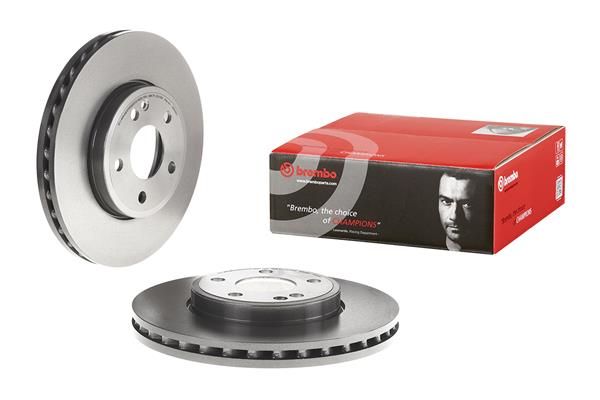

Brembo 09.B436.41 Brake Disc

SKU: 09.B436.41
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£100.37 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 180 (176.042) 1595 CCM 122 HP 09/2012 - 05/2018
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 200 CDI / d (176.008) 2143 CCM 136 HP 02/2014 - 05/2018
A 200 CDI / d 4-matic (176.002) 2143 CCM 136 HP 02/2014 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 180 (246.242) 1595 CCM 122 HP 11/2011 - 12/2018
B 200 (246.243) 1595 CCM 156 HP 11/2011 - 12/2018
B 180 CDI (246.200) 1796 CCM 109 HP 11/2011 - 08/2014
B 200 CDI (246.201) 1796 CCM 136 HP 11/2011 - 08/2014
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 160 CDI / d (246.211) 1461 CCM 90 HP 05/2013 - 12/2018
B 180 CDI / d (246.212) 1461 CCM 109 HP 02/2013 - 12/2018
B 200 CDI / d (246.208) 2143 CCM 136 HP 08/2014 - 12/2018
B 200 CDI / d 4-matic (246.202) 2143 CCM 136 HP 08/2014 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 220 CDI / d (117.303) 2143 CCM 170 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 163 HP 01/2013 - 03/2019
CLA 220 CDI 4-matic (117.305) 2143 CCM 170 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 177 HP 09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 163 HP 01/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
CLA 220 d (117.903) 2143 CCM 170 HP 07/2018 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 CDI / d (156.908) 2143 CCM 136 HP 12/2013 - 12/2019
GLA 200 CDI 4-matic (156.902) 2143 CCM 136 HP 12/2013 - 05/2019
GLA 220 CDI (156.903) 2143 CCM 170 HP 12/2013 - 05/2019
GLA 220 CDI / d (156.903) 2143 CCM 163 HP 12/2013 - 05/2019
GLA 220 CDI 4-matic (156.905) 2143 CCM 170 HP 12/2013 - 12/2019
GLA 220 CDI / d 4-matic (156.905) 2143 CCM 163 HP 12/2013 - 12/2019
GLA 220 d (156.903) 2143 CCM 177 HP 07/2015 - 05/2019
GLA 220 d 4-matic (156.905) 2143 CCM 177 HP 07/2015 - 12/2019

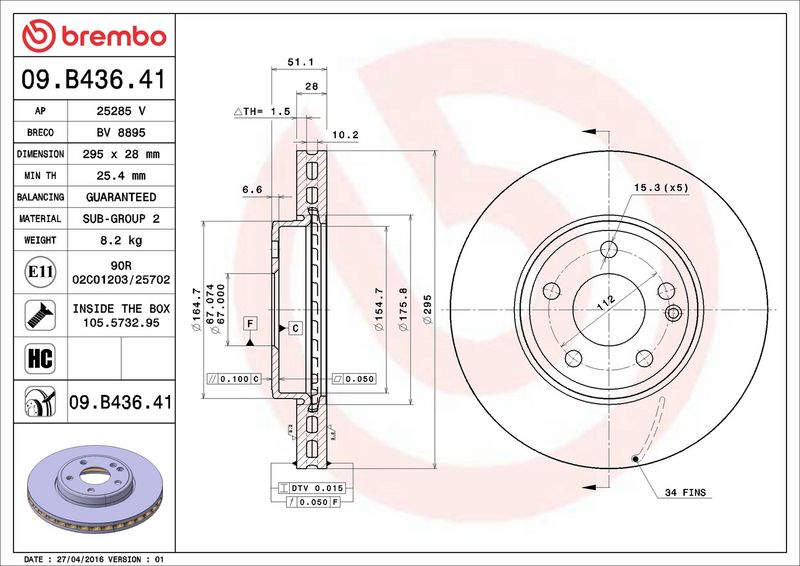

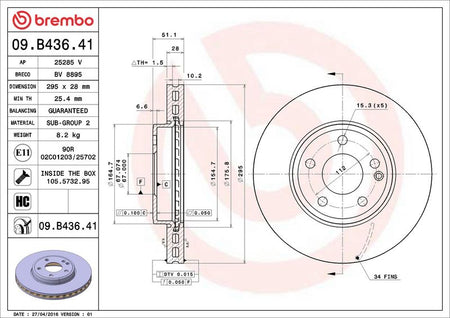

The Brembo 09.B436.41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 51
Centering Diameter [mm] : 67
Outer Diameter [mm] : 295
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25.4
Tightening Torque [Nm] : 130
  • Vendor BREMBO
  • SKU 09.B436.41
  • Barcode 8020584037553
  • MERCEDES-BENZ : 2464212412 246421241207 A2464212412 A246421241207
  • BLUE PRINT : ADU174316
  • BORG & BECK : BBD5325
  • BOSCH : 0 986 479 A58
  • DELPHI : BG4788C
  • FEBI BILSTEIN : 43861
  • FTE : 9071066
  • FTE : 9081127
  • HELLA : 8DD 355 119-411
  • MEYLE : 083 521 0025/PD
  • MINTEX : MDC2520
  • National : NBD2073
  • TEXTAR : 92254803
  • TRW : DF6591
  • VALEO : 672782
