Brembo 09.B461.11 Brake Disc - 1
Brembo 09.B461.11 Brake Disc - 2
Brembo 09.B461.11 Brake Disc - 1
Brembo 09.B461.11 Brake Disc - 2
BREMBO

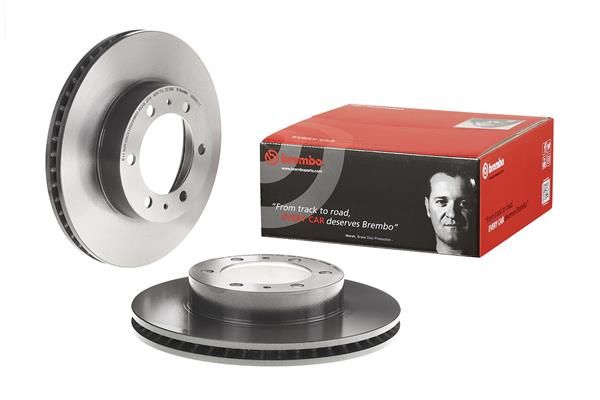

Brembo 09.B461.11 Brake Disc

SKU: 09.B461.11
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£101.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
4 RUNNER IV (_N21_)
Description Cylinder Capacity Horse Power Year
4.7 4WD (UZN215) 4663 CCM 264 HP 01/2005 - 12/2009
4.7 (UZN210) 4663 CCM 264 HP 01/2005 - 12/2009
FJ CRUISER (GSJ1_)
Description Cylinder Capacity Horse Power Year
4.0 4WD (GSJ15_, GSJ15W) 3956 CCM 276 HP 06/2005 - 01/2018
4.0 4WD (GSJ15_) 3956 CCM 260 HP 01/2010 - 06/2014
4.0 4WD (GSJ15_) 3956 CCM 242 HP 01/2006 - 01/2018
HILUX VIII Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... 2393 CCM 150 HP From 05/2015
2.8 TD 4WD (GUN126) 2755 CCM 204 HP From 06/2020
LAND CRUISER PRADO (_J12_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 163 HP 09/2002 - 08/2009
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 166 HP 07/2004 - 08/2009
3.0 D-4D (KDJ120, KDJ125, KDJ121) 2982 CCM 173 HP 09/2002 - 12/2010
3.0 D (KZJ120) 2982 CCM 125 HP 09/2002 - 07/2009

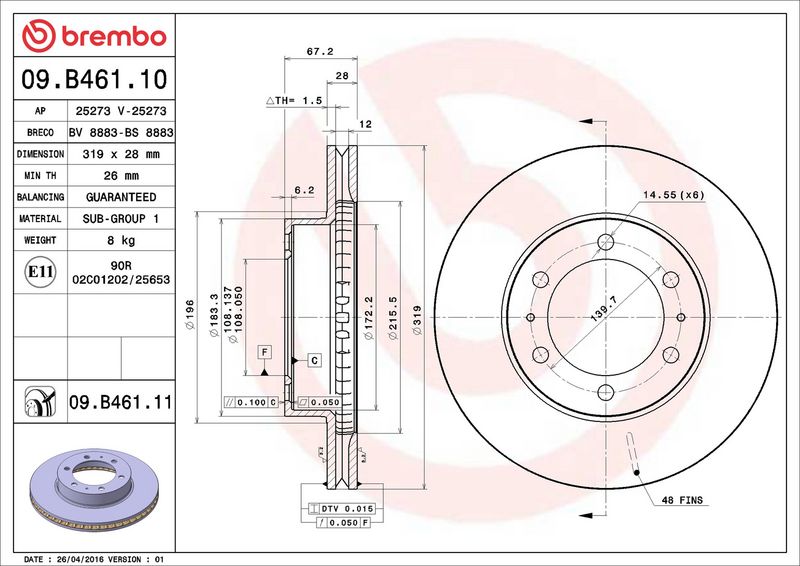

The Brembo 09.B461.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 6 mounting holes, and 108 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 6
Height [mm] : 67
Centering Diameter [mm] : 108
Outer Diameter [mm] : 319
Surface : Coated
Minimum thickness [mm] : 26
Tightening Torque [Nm] : 112
  • Vendor BREMBO
  • SKU 09.B461.11
  • Barcode 8020584032480
  • TOYOTA : 4351204050 4351204051 4351204052 435120K230 4351235320 4351235321 4351235322
  • BLUE PRINT : ADT343219
  • BORG & BECK : BBD5289
  • BOSCH : 0 986 479 T36
  • BOSCH : 0 986 479 U19
  • DELPHI : BG4557
  • FEBI BILSTEIN : 108411
  • FTE : 9071350
  • FTE : 9081285
  • HELLA : 8DD 355 117-261
  • MEYLE : 30-15 521 0121/PD
  • MINTEX : MDC2260
  • TEXTAR : 92230400
  • TEXTAR : 92230403
  • TRW : DF6817S
  • TRW : DF6914S
  • TRW : DF7827S
