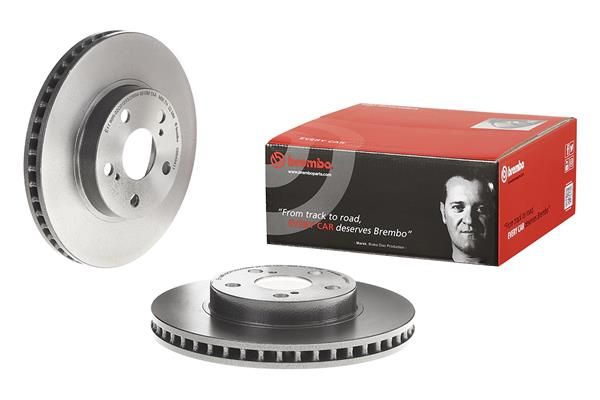

Brembo 09.B494.11 Brake Disc
Your selected vehicle
Regular price
£75.20
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

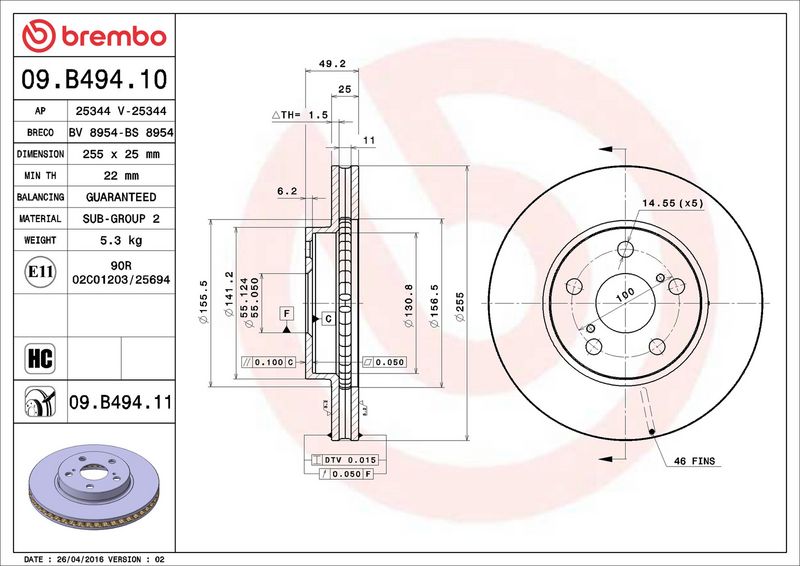

The Brembo 09.B494.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
internally vented
Brake Disc Thickness [mm] :
25
Number of Holes :
5
Height [mm] :
49
Centering Diameter [mm] :
55
Outer Diameter [mm] :
255
Machining :
High-carbon
Surface :
Coated
Minimum thickness [mm] :
22
Tightening Torque [Nm] :
103
- Vendor BREMBO
- SKU 09.B494.11
- TOYOTA : 4351247040 4351247050
- LEXUS : 4351247040 4351247050
- TOYOTA (FAW) : 4351247040
- BLUE PRINT : ADT343135
- BOSCH : 0 986 479 663
- DELPHI : BG4290
- FEBI BILSTEIN : 170769
- FTE : 9072507
- HELLA : 8DD 355 116-981
- MEYLE : 30-15 521 0109
- MINTEX : MDC2204
- SKF : VKBD 80383 V2
- TEXTAR : 92225003
- VALEO : 197754
- VALEO : 672684
